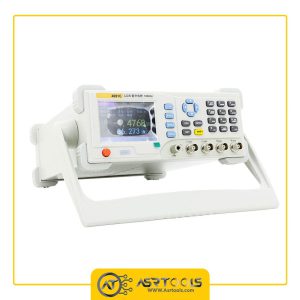

LCR متر دیجیتال رومیزی ویکتور مدل Victor VC-4091C دارای مشخصات فنی زیر است:
| Specification | |||
| Model No. | 4091A | 4091C | |
| Basic Accuracy | LCRZ | 0.20% | |
| Electrolytic Capacitor Mode | √ | ||
| DCR Mode | √ | ||
| Test Signal Frequency | 10Hz-10kHz,adjustable | 10Hz-100Khz,adjustable | |
| Electrical Level | 0.1-2V Adjustable | ||
| Bias Voltage | 0~1500mV | ||
| Test Parameters | L/C/R/Z X/D/Q/θ/ESR | ||
| DCR Range | 0.0001Ω-99.99MΩ | ||
| LCR Parameters Range | R 0.0001Ω-99.99MΩ | ||
| C 0.01pF-99.999uF | |||
| L 0.01uH-9999H | |||
| Features | |||
| Screen | 3.5″ TFT,5 digits | ||
| Measurement Time(≥10kHz) | Fast :8meas/s,Medium:4meas/s,Slow:2meas/s | ||
| Equivalent Circuit | Serial/Parallel | ||
| Backlight Adjustable | √ | ||
| Components Auto identification | √ | ||
| Operation Way | Auto / Manul range | ||
| Language | English/Chinese | ||
| Correction | Open/ Short | ||
| Filter | -50%~5+50% (Fix point 1%,5%,10%20%) | ||
| Comparator | 3 Levels for PASS 1 Level for FAIL 1 Level for AUX |
||
| Max/Min/Ave. | √ | ||
| SCPI | Support | ||

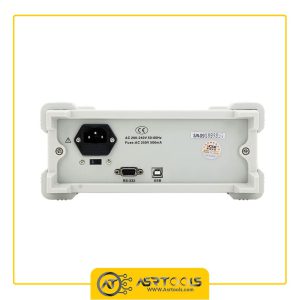

| Interface | USB , RS232 (or 485), Handle / (GPIB USB HOST Available ) | ||
| General Information | |||
| Power Supply | AC 110V-220,45~65Hz | ||

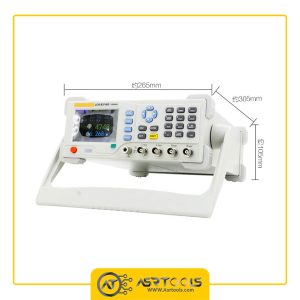

| Product Size | 265mmx305mmx105mm | ||
| Product Weight | 2..3kg | ||

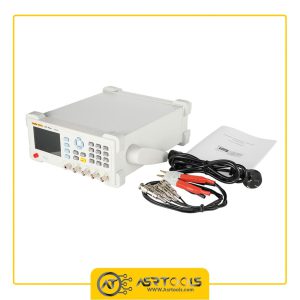

| Standard Accessories | Manual/Power Cable/Test Lead | ||
