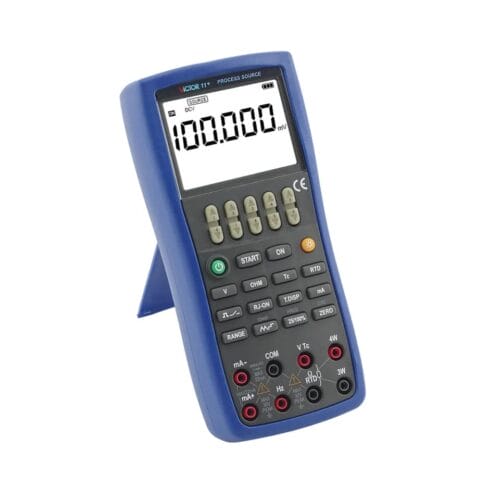

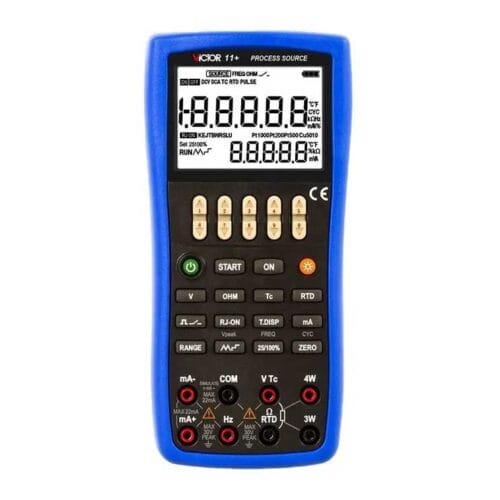

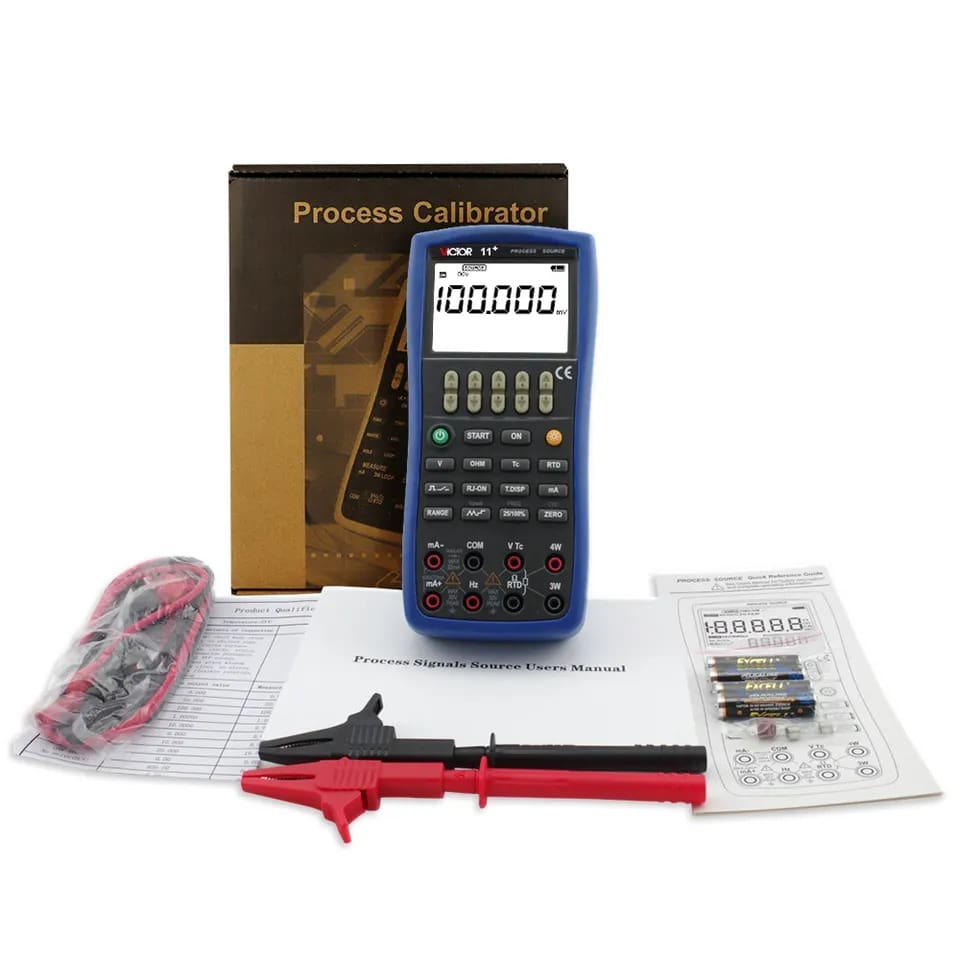

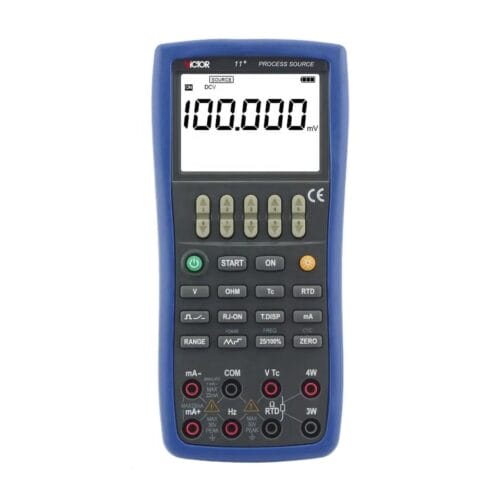

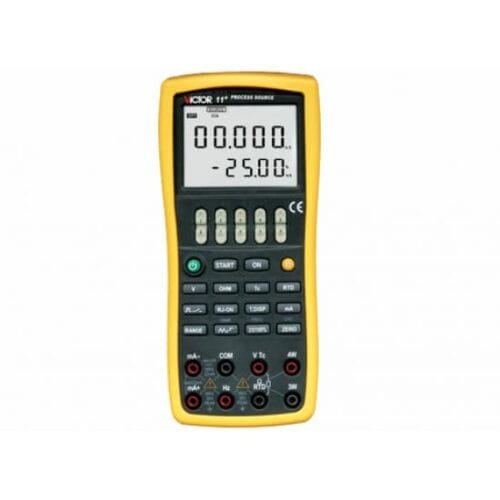

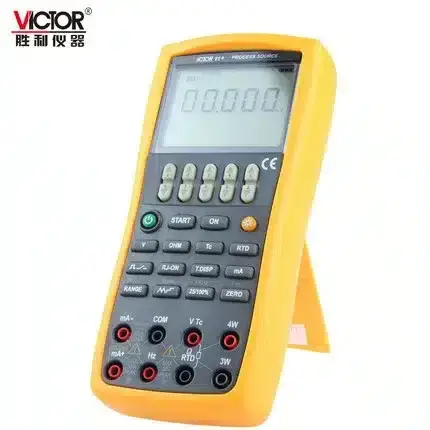

کالیبراتور ویکتور مدل Victor VC-11 Plus در فروشگاه عصرتولز…
کالیبراتور ویکتور مدل Victor VC-11 Plus دارای مشخصات فنی زیر است:
- کالیبراتور دیجیتال
- میلی ولتاژ DC تا mV1100 و دقت µV1
- ولتاژ DC تا V11 و دقت mV0
- جریان DC تا mA22 و دقتµA1
- مقاومت 40 کیلو اهم 0.01Ω/0.1Ω/1Ω
- فرکانس Pulse 10KHz
- Swich110KHz
- ترمومتر تایپ R-S-K-E-J-T-B-N-L-U
- RTD ترموکوپل سري PT00/PT200/PT500/PT1000/CU10/CU50
- دارای نور صفحه نمایش
- خاموشی خودکار

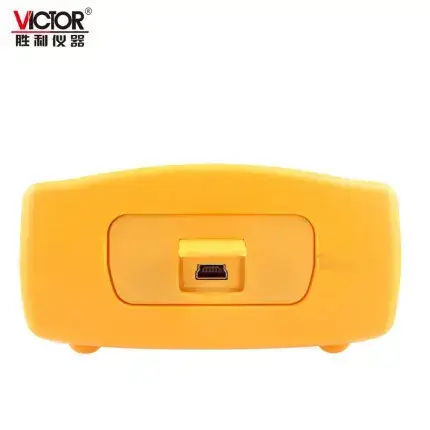

- اتصال به PC به واسطه کابل RS232
|
Features |
Range | Output setting range | Resolution | Accuracy | Preparation Note |
| DC voltage
DCV |
100mV | -10.000mV to 110.000mV | 1μV | 0.02 + 0.01 | Output current 0.5mA |
| 1000mV | -100.00mV to 1100.00mV | 10μV | 0.02 + 0.01 | Output current 2mA | |
| 10V | -1.0000V to 11.0000V | 0.1mV | 0.02 + 0.01 | Maximum output current 5mA | |
| DC
DCmA |
20mA | 0.000mA to 22.000mA | 1μA | 0.02 + 0.02 | At 20 mA ,
Maximum load 1KΩ resistor When simulating a transmitter, External power supply 5 ～28V
|
| ohm
OHM |
400Ω | 0.00Ω to 400.00Ω | 0.01Ω | 0.02 + 0.02 | Excitation current is ± 0.5 ~ 3mA
When excitation current is ± 0.1 ~ 0.5mA , add 0.1Ω additional error Lead resistance is not included in accuracy |
| 4KΩ | 0.0000KΩ to 4.0000 KΩ | 0.1Ω | 0.05 + 0.025 | Excitation current is ± 0.05 ~ 0.3mA
Lead resistance is not included in accuracy |
|
| 40KΩ | 0.000KΩ ～40.000 KΩ | 1Ω | 0.1 + 0.1 | Excitation current is ± 0.01mA
Lead resistance is not included in accuracy |
|
| Thermocouple
TC
|
R | 0 ° C to 1767 ° C | 1 ° C | 0 ° C ～100 ℃ : 1.5 ° C
100 ° C ～1767 ℃ : 1.2 ° C |
Using ITS-90 temperature scale
Cold junction compensation error is not included in the accuracy |
| S | 0 ° C to 1767 ° C | 0 ° C to 100 ° C: 1.5 ° C
100 ° C ～1767 ℃ : 1.2 ° C |
|||
| K | -200.0 ° C to 1372.0 ° C | 0.1 ° C | -200.0 ° C ～-100.0 ° C: 0.6 ° C
-100.0 ° C ～400.0 ° C: 0.5 ° C 400.0 ° C ～1200.0 ° C: 0.7 ° C 1200.0 ° C ～1372.0 ° C: 0.9 ° C |
||
| E | -200.0 ° C to 1000.0 ° C | -200.0 ° C ～-100.0 ° C: 0.6 ° C
-100.0 ° C ～600.0 ° C: 0.5 ° C 600.0 ° C ～1000.0 ° C: 0.4 ° C |
|||
| J | -200.0 ° C to 1200.0 ° C | -200.0 ° C ～-100.0 ° C: 0.6 ° C
-100.0 ° C to 800.0 ° C: 0.5 ° C 800.0 ° C to 1200.0 ° C: 0.7 ° C |
|||
| T | -250.0 ° C to 400.0 ° C | -250.0 ° C ～400.0 ° C: 0.6 ° C | |||
| N | -200.0 ° C to 1300.0 ° C | -200.0 ° C ～-100.0 ° C: 1.0 ° C
-100.0 ° C to 900.0 ° C: 0.7 ° C 900.0 ° C ～1300.0 ° C: 0.8 ° C |
|||
| B | 600 ° C ～1820 ° C | 1 ° C | 600 ° C to 800 ° C: 1.5 ° C
800 ° C ～1820 ° C: 1.1 ° C |
||
| L | -200.0 ° C to 900.0 ° C | 0.1 ° C | -200.0 ° C ～0.0 ° C: 0.7 ° C
0.0 ° C to 900.0 ° C: 0.5 ° C |
||
| U | -200.0 ° C to 600.0 ° C | 0.1 ° C | -200.0 ° C ～0.0 ° C: 0.7 ° C
0.0 ° C ～600.0 ° C: 0.5 ° C |
| Thermal resistance
RTD |
Pt100
385 |
-200.0 ° C to 800.0 ° C | 0.1 ° C | -200.0 ° C ～0.0 ° C: 0.3 ° C
0.0 ° C ～400.0 ° C: 0.5 ° C 400.0 ° C ～800.0 ° C: 0.8 ° C |
Using ITS-90 temperature scale
Pt100 , Cu50 , Cu10 excitation current is: ± 0.5 ~ 3mA The excitation current is: When ± 0.1 ~ 0.5mA , add 0.5 ℃ additional error
Pt200 , Pt500 , Pt1000 excitation current is ± 0.05 ~ 0.3mA Lead resistance is not included in accuracy |
| Pt200
385 |
-200.0 ° C to 630.0 ° C | -200.0 ° C ～100.0 ° C: 0.8 ° C
100.0 ° C ～300.0 ° C: 0.9 ° C 300.0 ° C ～630.0 ° C: 1.0 ° C |
|||
| Pt500
385 |
-200.0 ° C to 630.0 ° C | -200.0 ° C ～100.0 ° C: 0.4 ° C
100.0 ° C ～300.0 ° C: 0.5 ° C 300.0 ° C ～630.0 ° C: 0.7 ° C |
|||
| Pt1000
385 |
-200.0 ° C to 630.0 ° C | -200.0 ° C ～100.0 ° C: 0.2 ° C
100.0 ° C ～300.0 ° C: 0.5 ° C 300.0 ° C ～630.0 ° C: 0.7 ° C |
|||
| Cu10 | -100.0 ° C ～260.0 ° C | 1.8 ° C | |||
| Cu50 | -50.0 ° C to 150.0 ° C | 0.6 ° C | |||
| frequency
FREQ |
100Hz | 1.00Hz ~ 110.00Hz | 0.01Hz | ± 2 words | 1 ～11 Vp-p square wave
Level accuracy: ± 5 % of reading + 0.5V 50% duty cycle Load > 100KΩ |
| 1KHz | 0.100KHz ~ 1.100KHz | 1Hz | |||
| 10KHz | 1.0KHz ~ 11.0KHz | 0.1KHz | |||
| 100KHz | 10KHz ~ 110KHz | 2KHz | ± 5 words | ||
| pulse
PULSE |
100Hz | 1 to 100000 cycles | 1cyc | ± 2 words | 1 ～11 Vp-p square wave
Level accuracy: ± 5 % of reading + 0.5V 50% duty cycle Load > 100KΩ |
| 1KHz | |||||
| 10KHz | |||||
| Switch
SWITCH |
100Hz | 1.00Hz to 110.00Hz | 0.01Hz | ± 2 words | FET switch
Switching voltage / current: +28 V / 50mA |
| 1KHz | 0.100KH ～1.100KHz | 1Hz | |||
| 10KHz | 1.0KHz ～11.0KHz | 0.1KHz | |||
| 100KHz | 10KHz ～110KHz | 2KHz | ± 5 words |
