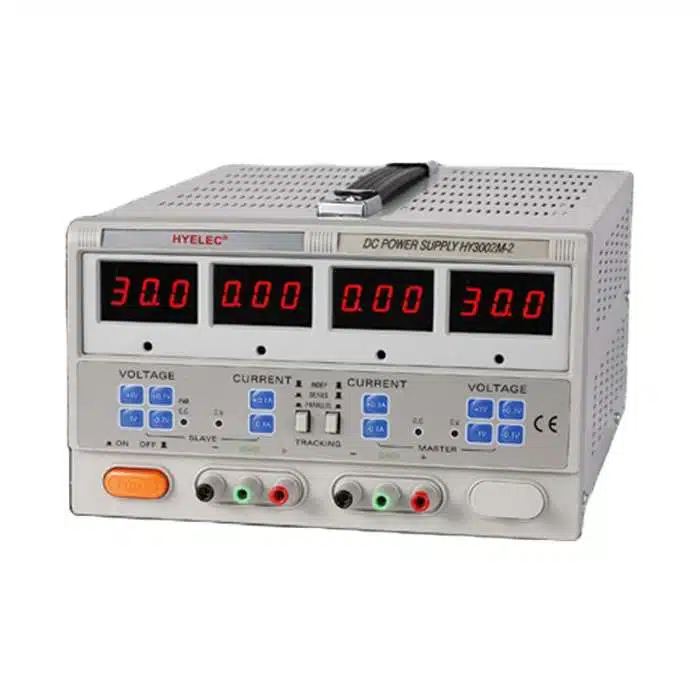

منبع تغذیه های الک مدل HYELEC HY3002M-2
| HY3002M-2 | 2 x 0~30V, 2 x 0~2A |
| Mode | linear |
| Input voltage | 230V/115V AC+10% 50Hz/60Hz+2Hz |
| Type | Dual adjustable power supply |
| Line regulation | CV≤0.01%+1mv CC≤0.2%+1mA |
| Load regulation | CV≤ 0.01%+3mv(I≤3A) CC≤0.2%+3mA(I≤3A)
CV≤ 0.01%+5mv(I>3A) CC≤0.2%+5mA (I>3A) |
| Ripple and noise | CV≤0.5mVr.m.s(I≤3A) CC≤3mAr.m.s(I≤3A)
CV≤1.0mVr.m.s(I>3A) CC≤6mAr.m.s(I>3A) |
| Protection | constant current and short-circuit protection |
| Voltage indication accuracy | +0.2%+5digits |
| Current indication accuracy | +0.5%+5digits |
| Environment | 0+40℃ relative humidity: <90% |
| Output type | triple output |
| Dimensions | 365 x 265 x 164mm |
| Weight | 9kgs |
