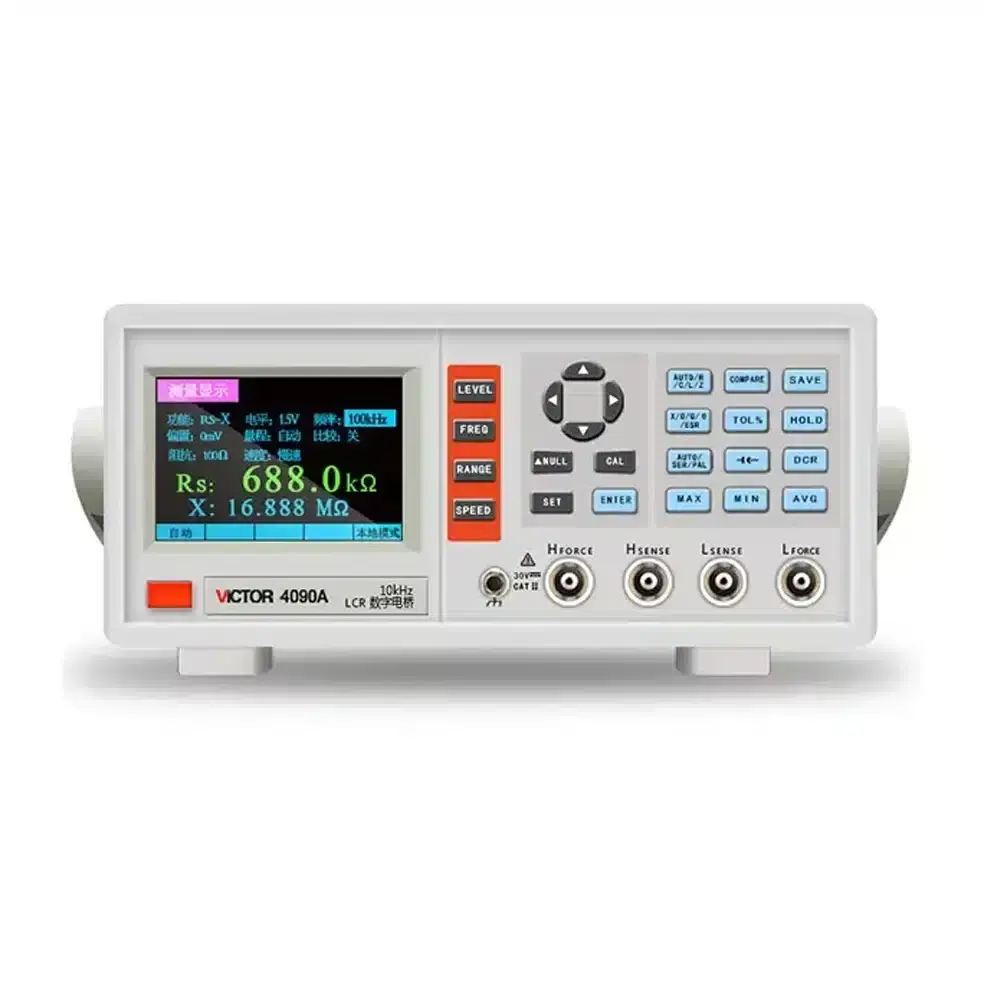

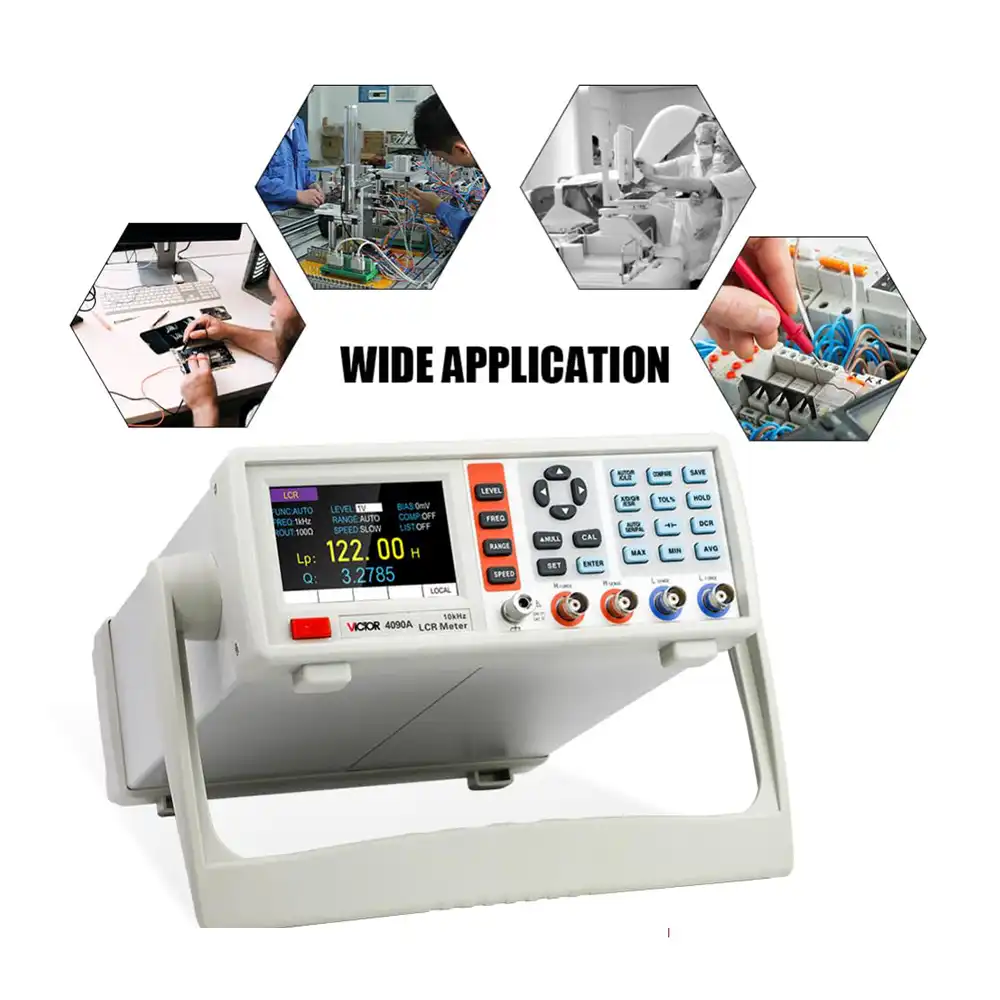

LCR متر دیجیتال رومیزی ویکتور مدل Victor VC-4090A دارای مشخصات فنی زیر است:
| Specification | ||||
| Model | 4090A | 4090B | 4090C | |
| Basic Accuracy | LCRZ | 0.20% | ||
| Electrolytic Capacitor Mode | √ | |||
| DCR Mode | √ | |||
| Test Signal Frequency | 10Hz-10kHz,10points | 100Hz-20KHz,12 points | 100Hz-100Khz,16 points | |
| 100Hz,120Hz,200Hz, | 100Hz,120Hz,200Hz, | 100Hz,120Hz,200Hz, | ||
| 400Hz,800Hz1KHz,2KHz | 400Hz,800Hz1KHz,2KHz, | 400Hz,800Hz1KHz,2KHz | ||
| 4KHz,8KHz,10KHz | 4KHz,8KHz,10KHz | 4KHz,8KHz10KHz, | ||
| 15KHz,20KHz | 15KHz,20KHz,50KHz, | |||
| 80KHz,100KHz | ||||
| Electrical Level | 6 fixed points :0.1V/0.3V/0.6V/1V/1.5V/2V | |||
| Test Parameters | L/C/R/Z X/D/Q/θ/ESR | |||
| DCR Range | 0.0001Ω-99.999MΩ | |||
| LCR Parameters Range | R: 0.0001Ω-99.999MΩ | |||
| C: 0.01pF-99.999mF | ||||
| L: 0.01uH-9999H | ||||
| D: 0.0001-9.9999 | ||||
| Q: 0.0001-9999.9 | ||||
| θ(DEG) -179.9-179.99〫 | ||||

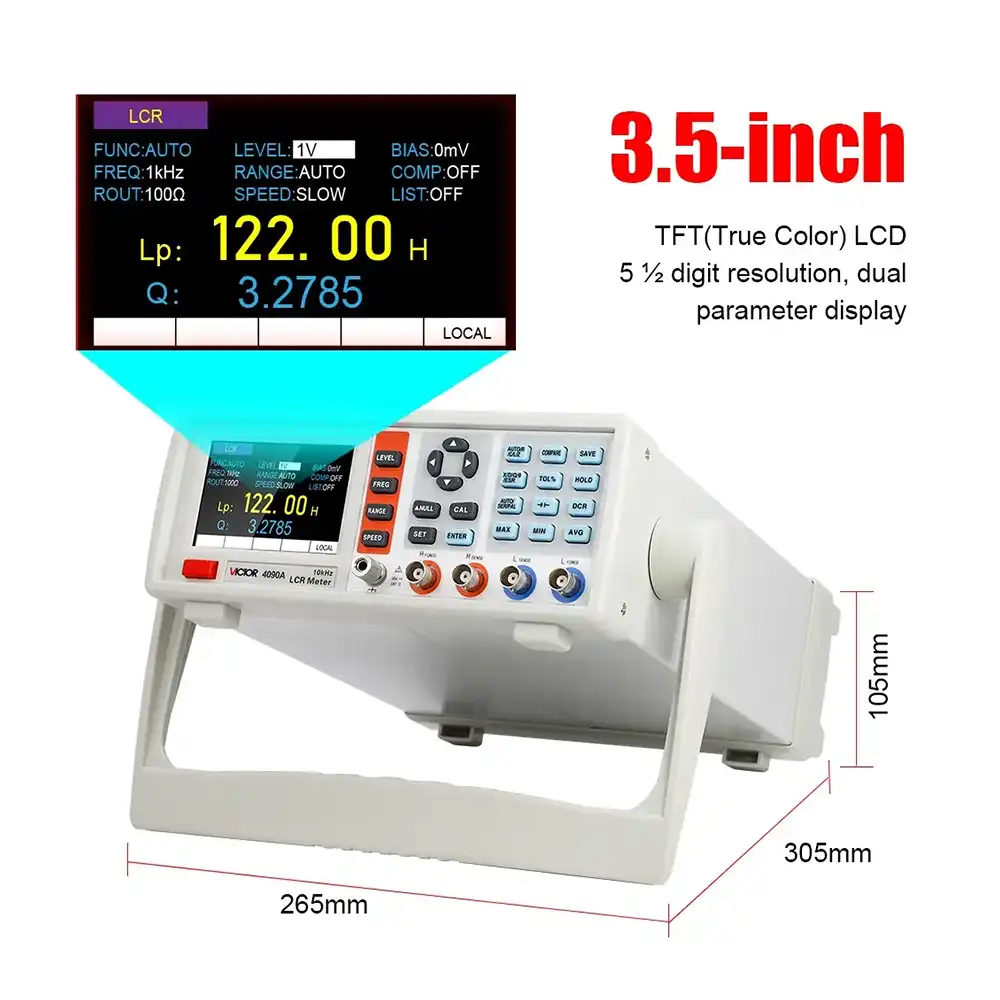

| Screen | 3.5″ TFT,5 digits | |||
| Measurement Time(≥10kHz) | Fast :8meas/s,Medium:4meas/s,Slow:2meas/s | |||
| Equivalent Circuit | Serial/Parallel | |||
| Backlight Adjustable | √ | |||
| Language | English/Chinese | |||
| Correction | Open/ Short | |||
| Comparator | 3 Levels for PASS | |||
| 1 Level for FAIL | ||||
| 1 Level for AUX | ||||
| Max/Min/Ave. | √ | |||
| Interface | USB , RS232,RS485(optional),GPIB(optional) | |||
| General Information | ||||
| Power Supply | AC 110V-220,45-65Hz | |||
| Product Size | 265mmx305mmx105mm | |||
| Product Weight | 3.5kg | |||
| Standard Accessories | Manual/Power Cable/Test Lead | |||
