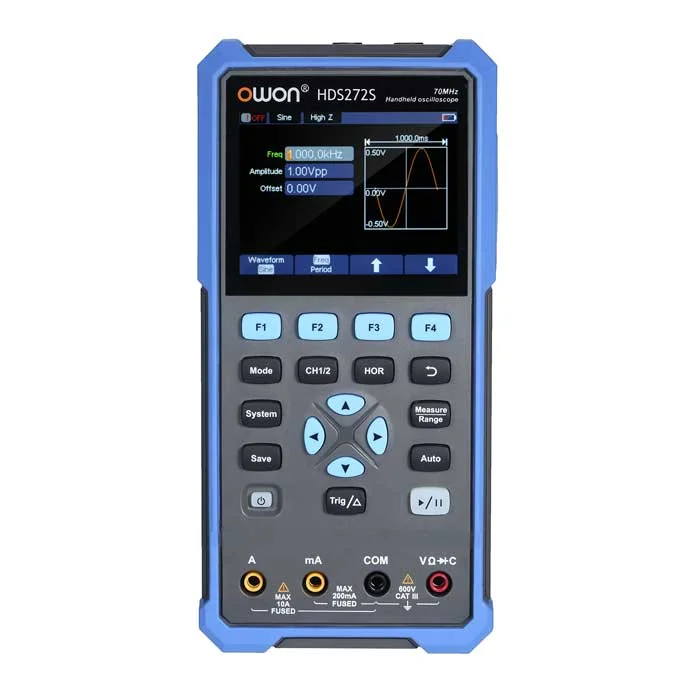

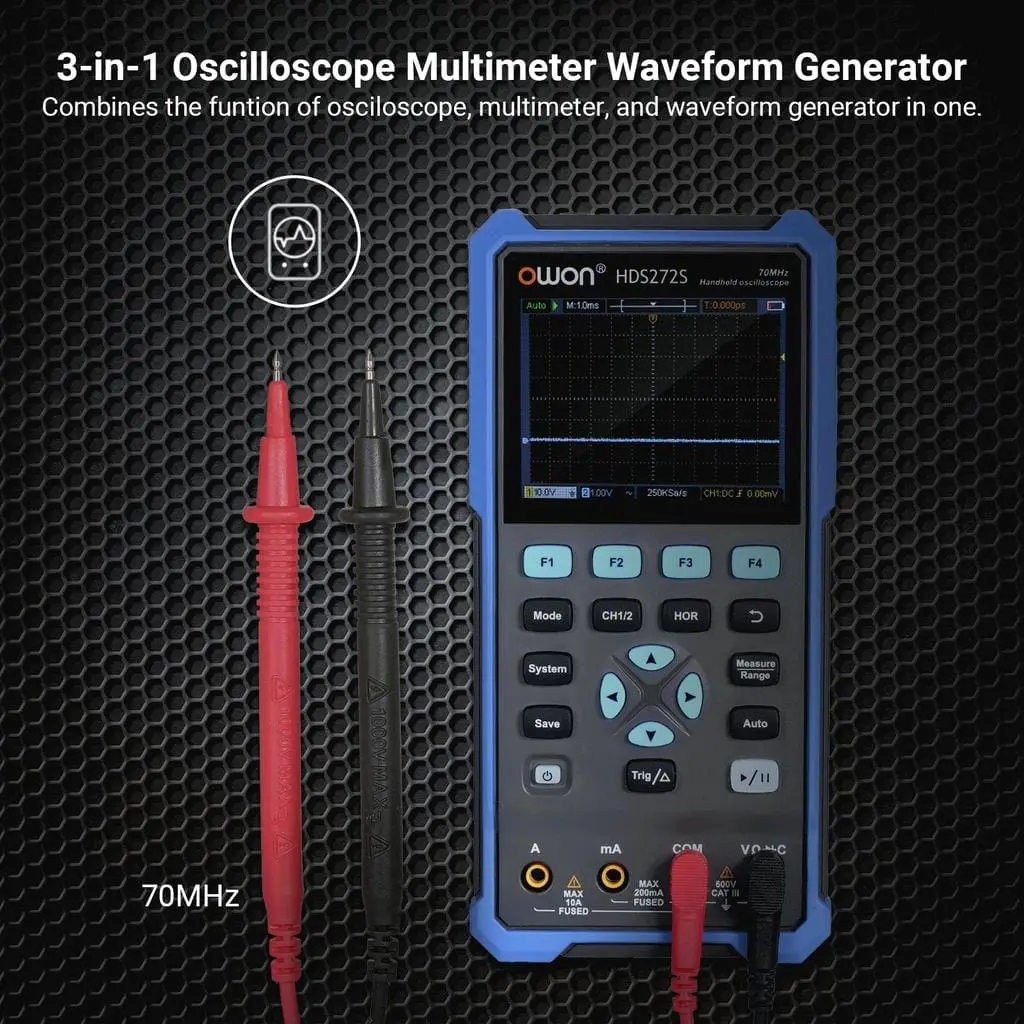

اسیلوسکوپ دیجیتالی اوون مدل OWON HDS272S در فروشگاه عصرتولز:
| Model | HDS242 | HDS272 | HDS2102 | HDS242S | HDS272S | HDS2102S |
| Bandwidth | 40MHz | 70MHz | 100MHz | 40MHz | 70MHz | 100MHz |
| Channels | 2-CH Oscilloscope | 2-CH Oscilloscope+1-CH Generator | ||||
| Sample Rate | 250MS/s | 500MS/s | 250MS/s | 500MS/s | ||
| Acquisition Model | Normal, Peak detect | |||||
| Record Length | 8K | |||||
| Display | 3.5-inch LCD | |||||
| Waveform Refresh Rate | 10,000 wfrms/s | |||||
| Input Coupling | DC, AC, and Ground | |||||
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF | |||||
| Probe Attenuation Factors | 1X,10X,100X,1000X,10000X | |||||
| Max. input Voltage | 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) | |||||
| Bandwidth Limit (typical) | 20MHz | |||||
| Horizontal Scale | 5ns/div – 1000s/div, step by 1 – 2 – 5 | 2ns/div – 1000s/div, step by 1 – 2 – 5 | 5ns/div – 1000s/div, step by 1 – 2 – 5 | 2ns/div – 1000s/div, step by 1 – 2 – 5 | ||
| Vertical Sensitivity | 10mV/div – 10V/div | |||||
| Vertical Resolution | 8 bits | |||||
| Trigger Type | Edge | |||||
| Trigger Modes | Auto, Normal, single | |||||
| Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |||||
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |||||
| Communication Interface | USB Type-C | |||||
「Multimeter」Specifications (Standard)
| Max. Resolution | 20,000 counts |
| Testing Mode | Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test |
| Input Impedance | 10MΩ |
| Max Input Voltage | AC 750V, DC 1000V |
| Max Input Current | DC : 10A AC : 10A |
| Diode | 0 – 2V |

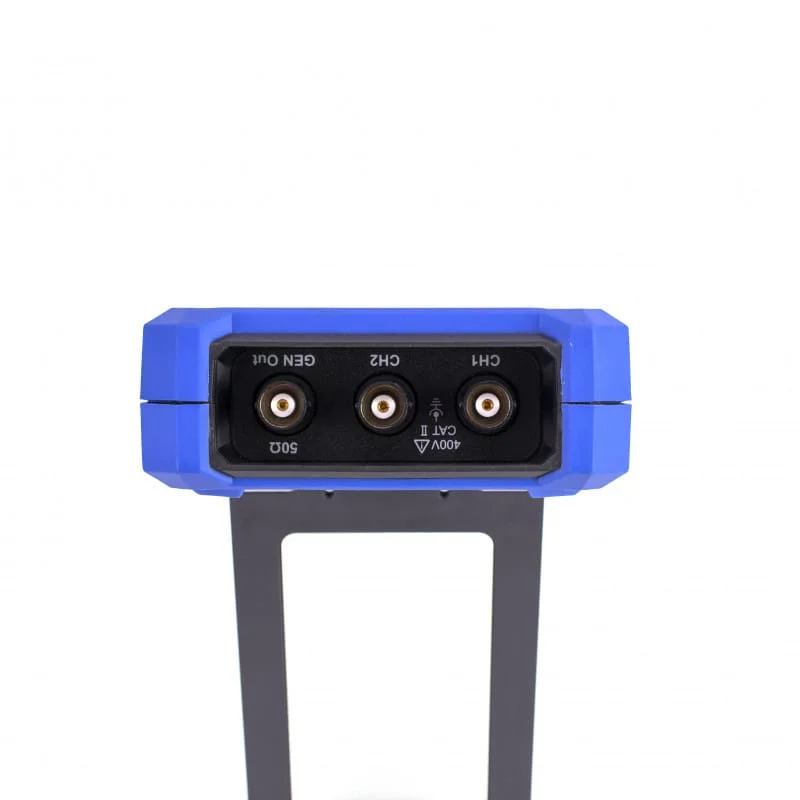

「Waveform Generator」Specifications (Only for HDS242S, HDS272S, HDS2102S)
| Frequency Output | Sine | 0.1Hz – 25MHz |
| Square | 0.1Hz – 5MHz | |
| Ramp | 0.1Hz – 1MHz | |
| Pulse | 0.1Hz – 5MHz | |
| Arbitrary | 0.1Hz – 5MHz | |
| Sampling Rate | 125MSa/s | |
| Channel | 1-CH | |
| Amplitude Range | 20 mVpp – 5 Vpp | |
| Waveform Length | 8K | |
| Vertical Resolution | 14bits | |
| Output Impedance | 50Ω | |
