اسیلوسکوپ دیجیتالی اوون مدل OWON SDS-5052E دارای ویژگی های زیر است:
| Model | SDS5052E | |
| Bandwidth | 50MHz | |
| Sample Rate (real time) | 500MS/s | |
| Horizontal Scale (s/div) | 5ns/div-100s/div, step by 1~2~5 | |
| Rise Time (at input, typical) | ≤7ns | |
| Channel | 2 + 1 (external) | |
| Display | 8″ color LCD, TFT display , 800 × 600 pixels, 65535 colors | |
| Input Impedance | 1MΩ ± 2%, in parallel with 15pF±5pF | 1MΩ ± 2%, in parallel with 15pF±3pF |
| Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | |
| Max Input Voltage | 400V (PK – PK) (DC+AC, PK – PK) | |
| DC Gain Accuracy |
±3% |
|
| Record Length | 10K, 100K( optional 10M) | |
| DC Accuracy (average) | Average≥16:±(3% reading + 0.05 div) for V | |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |
| LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
| Sample Rate/Relay Time
Accuracy |
±100ppm | |
| Interpolation | sin (x) / x | |
| Interval (T) Accuracy
(full bandwidth) |
Single : ±(1 interval time + 100ppm × reading + 0.6ns),
Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
| Input Coupling | DC, AC , and GND | |
| Vertical Resolution (A/D) | 8 bits (2 Channels simultaneously) | |
| Vertical Sensitivity | 5mV/div-10V/div (at input) | |
| Trigger Type | Edge, Pulse, Video, Slope, Alternate | |
| Trigger Mode | Auto, Normal, Single | |
| Trigger Level | ±6 divisions from screen center | |
| Line / Field Frequency
(video) |
NTSC, PAL, and SECAM standard | |
| Cursor Measurement | V, and T between cursors | |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B | |
| Waveform Math | +, -, ×, ÷, invert, FFT | |
| Waveform Storage | 15 waveforms | |
| Lissajous
Figure |
Bandwidth | Full bandwidth |
| Phase
Difference |
±3 degrees | |

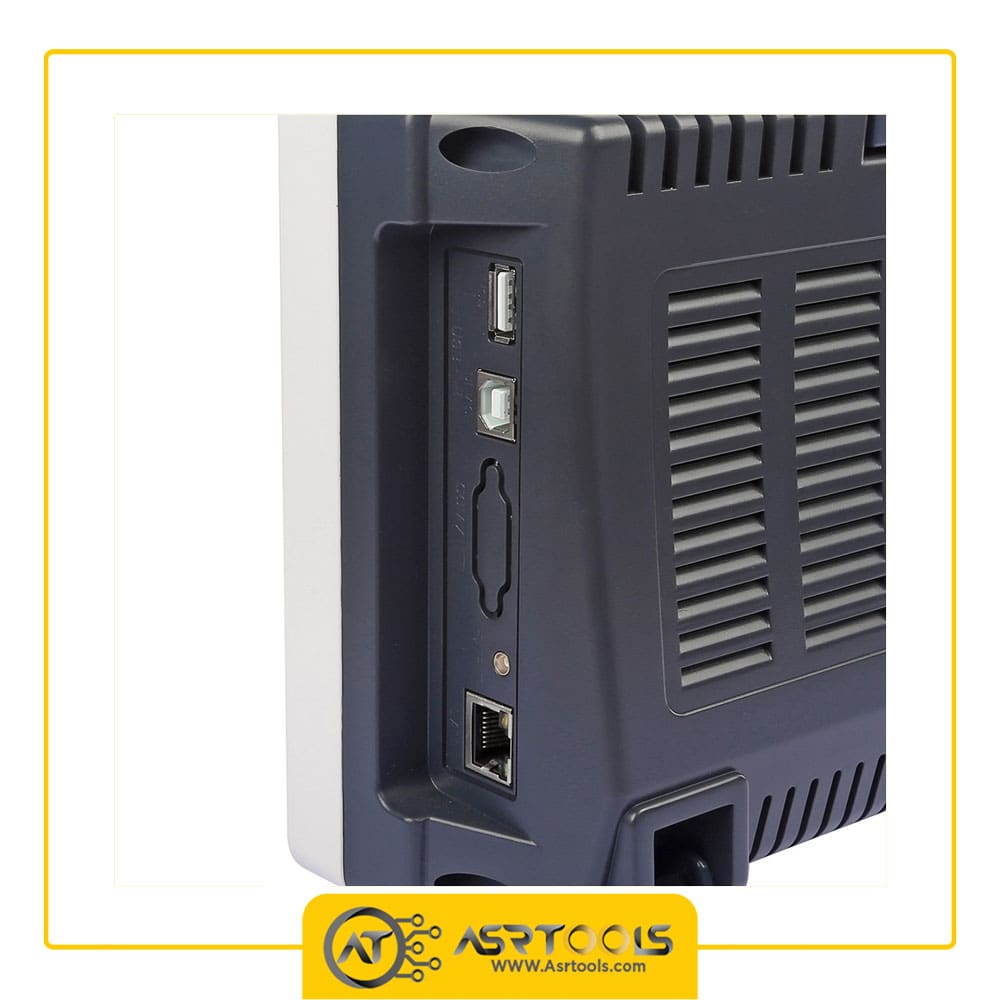

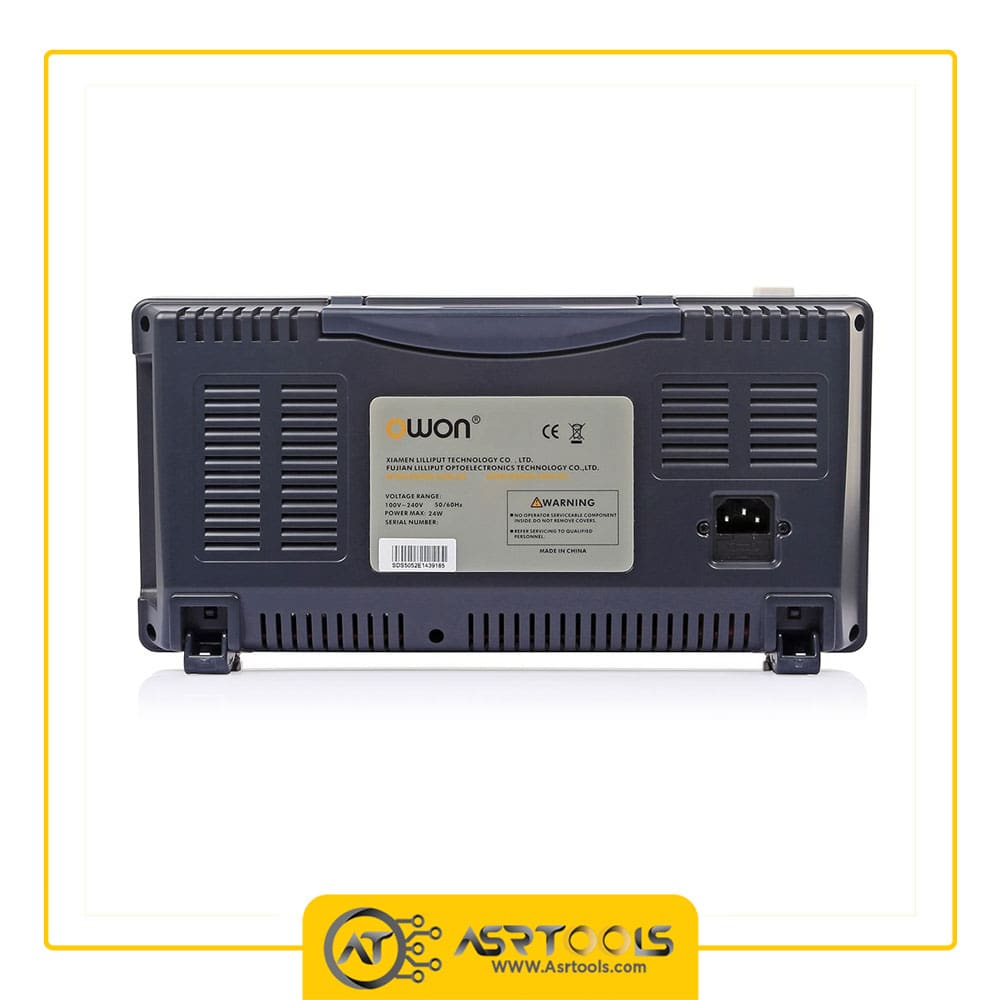

| Communication Interface | USB host, USB device, Pass / Fail, LAN, VGA (optional) | |
| Cymometer | available | |
| Power Supply | 100V – 240V AC, 50/60Hz, CAT | |
| Power Consumption | <18W | |
| Fuse | 2A, T class, 250V | |
| Battery |
not supported |
|
| Dimension (W×H×D) |
348 × 170 × 78 (mm) |
|
| Weight (without package) | 1.50 kg | |
