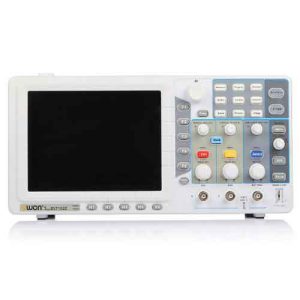

اسیلوسکوپ دیجیتالی اوون مدل OWON SDS-6062E دارای ویژگی های زیر است:
Display | 8″ TFT, 800×600 pixels, 65535 colours |
Input Impedance | 1 MΩ |
Rise Time (at input) |
≤11 ns |
Horizontal scale (input) |
4 ns/div – 100 s/div |
Vertical sensitivity (input) |
5 mV/div – 10V/div |
Maximal voltage | 400V (peak – peak) |
DC gain accuracy | ±3% |
Probe support | 1x, 10x, 100x, 1000x |
Number of channels | 2 |
Weight (without box) | 1.5 Kg |
Dimensions | 348 x 170 x 78 mm |
