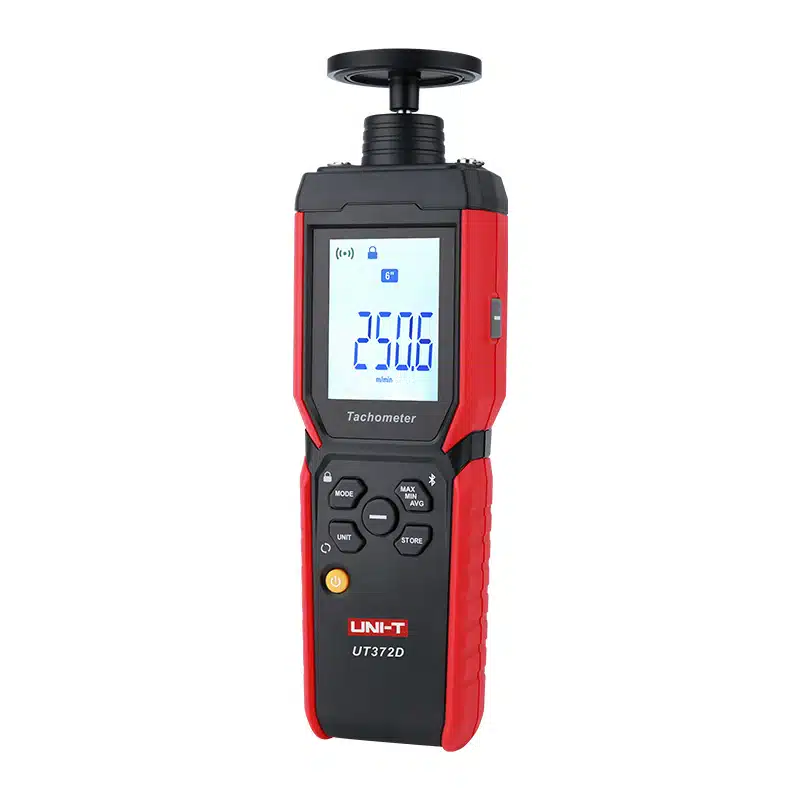

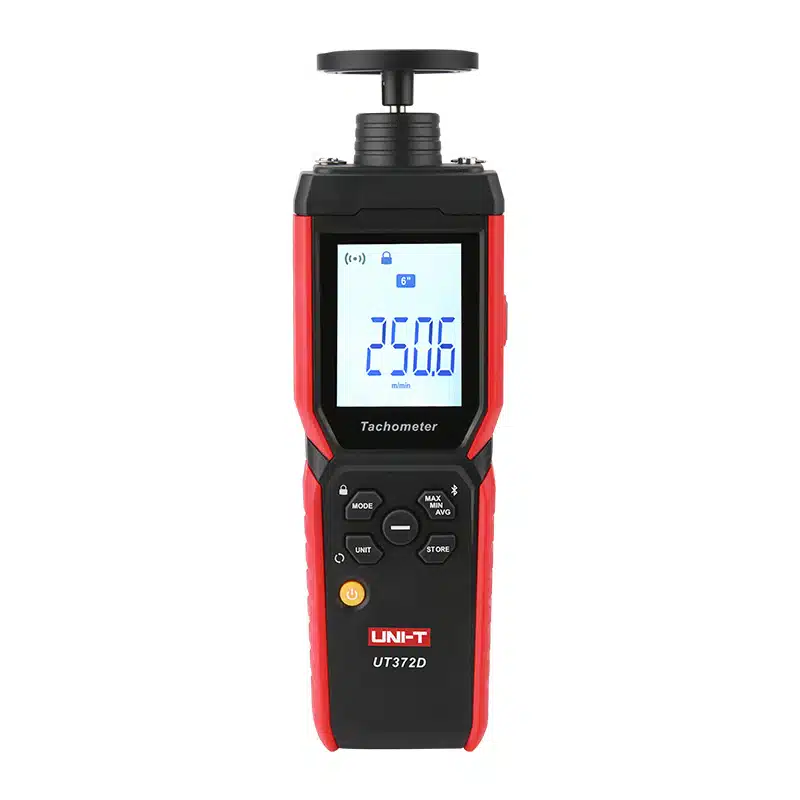

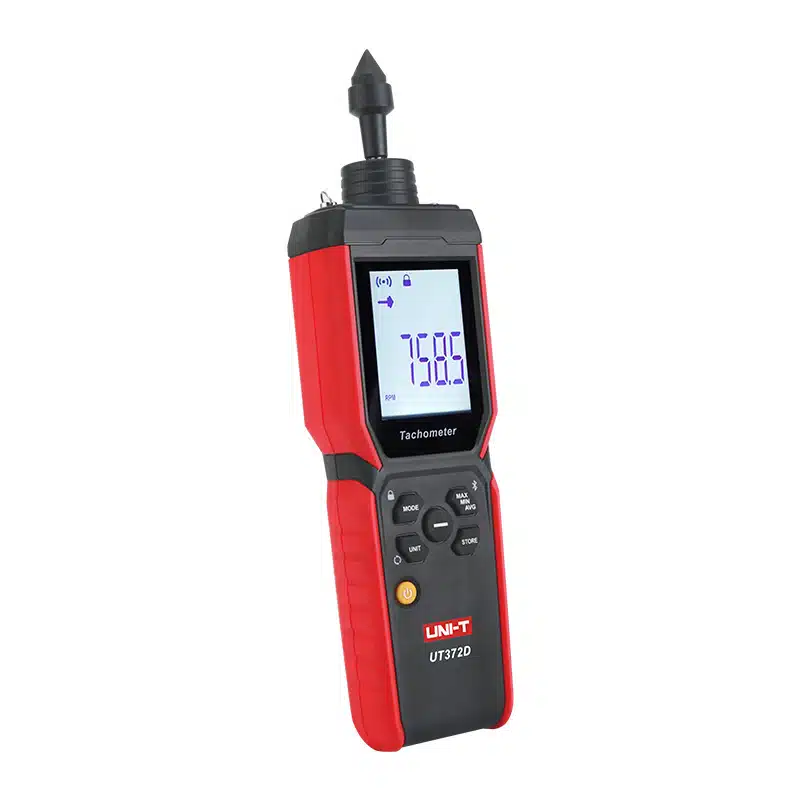

دورسنج یونی تی مدل UNI-T UT372D دارای جدول مشخصات فنی زیر است:
| Sepecification | Range | |
| Non-contact (optical) measurement | Rotational velocity (RPM) | 1-99,999 |
| Frequency (HZ) | 1-1,666 | |
| Count(REV) | 1-99,999 | |
| Target distance | 50~500mm | |

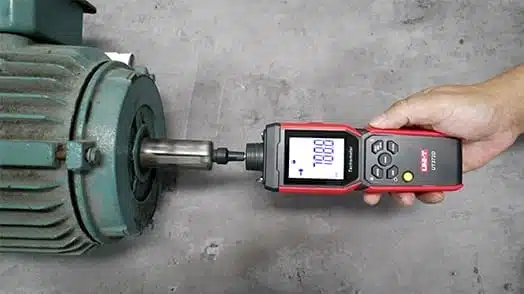

| Contact measurement | Rotational velocity (RPM) | 1-19,999 |
| Frequency (HZ) | 1-333 | |
| Surface velocity | 0.1m wheel | |
| 0.1-1,999m/min | ||
| 0.4-6,550ft/min | ||
| 4-78,700in/min | ||
| 6”wheel | ||
| 0.15-1,524m/min | ||
| 0.5-5,000ft/min | ||
| 6-60,000in/min | ||
| Length | 0-99999(m/ft/in) | |
| Accuracy | ±0.02% ±1 digit | |
| Measurement modes | Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length | |
| Contact measurement unit | m/min, ft/min, in/min,m,ft,in | |
| Statistical measurement | Max/Min/Last reading/Average | |
| Data storage | 10 groups | |
| Operating temperature/humidity | 0°C~50°C; ≤80%RH | |
| Storage temperature | -20°C~60°C; ≤80%RH | |
| Drop test | 1m | |
| Auto power off | After about 15 minutes of inactivity | |
| General Characteristics | ||
| Product color | Red and grey | |
| Product weight | About 181g (without batteries) | |
| Product size | 176 × 63 x 38mm | |
| Battery type | AAA 1.5V ×3 | |

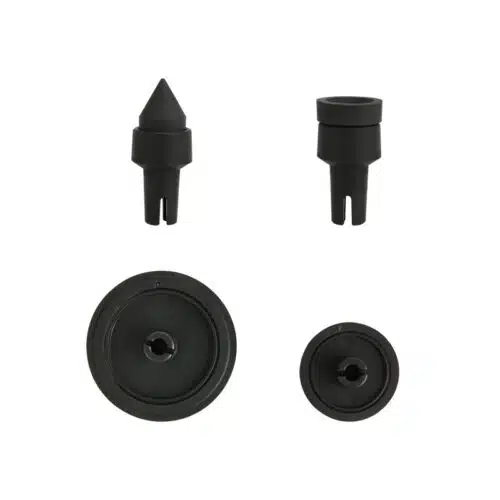

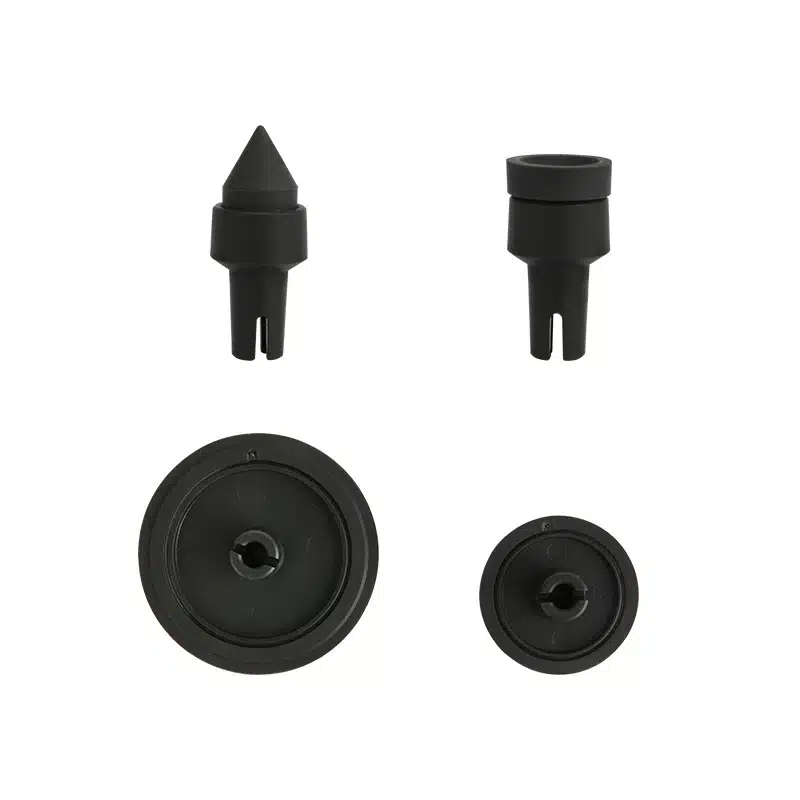

| Standard accessories | user manual quick start guide safety instruction shaft contacts(cone/internal cone) contact wheels(6in/0.1m) cloth bag reflecting tape |
|
| Standard carton measurment | 395mm × 330mm x 330mm | |
| Standard quantity per carton | 10pcs | |
