میگر دیجیتال یونی تی مدل UNI-T UT501C دارای مشخصات فنی زیر است:
| Specifications | Output Voltage | Measurement Range | UT501C |
| Insulation Resistance Measurement | 100V | 0.00MΩ～100MΩ | √ |
| 250V | 0.00MΩ～500MΩ | √ | |
| 500V | 0.00MΩ～2.00GΩ | √ | |
| 1000V | 0.00MΩ～5.00GΩ | √ | |
| 2500V | 0.00MΩ～20.0GΩ | ||
| Accuracy | 0.00MΩ～99.9MΩ: ±(3%+5) 100MΩ～5.00GΩ: ±(5%+5) |
√ | |
| 0.00MΩ～99.9MΩ: ±(3%+5) 100MΩ～9.99GΩ: ±(5%+5) 10.0GΩ～20.0GΩ: ±(10%+5) |
|||
| Voltage Measurement Range | AC: 30V～750V (50Hz/60Hz)， ±(2%+3) | ||
| Short-Circuit Current | <2mA | ||
| Powered by | Adaptor (optional,without charging function) | ||
| 6×1.5V AA alkaline batteries | |||
| Auto Power Off | √ | ||
| Self-Lock Function | √ | ||
| Low Battery Indication | √ | ||
| Data Hold | √ | ||
| Auto Discharge | √ | ||
| Audible and Visual Alarm | √ | ||
| Overrange Indication | √ | ||

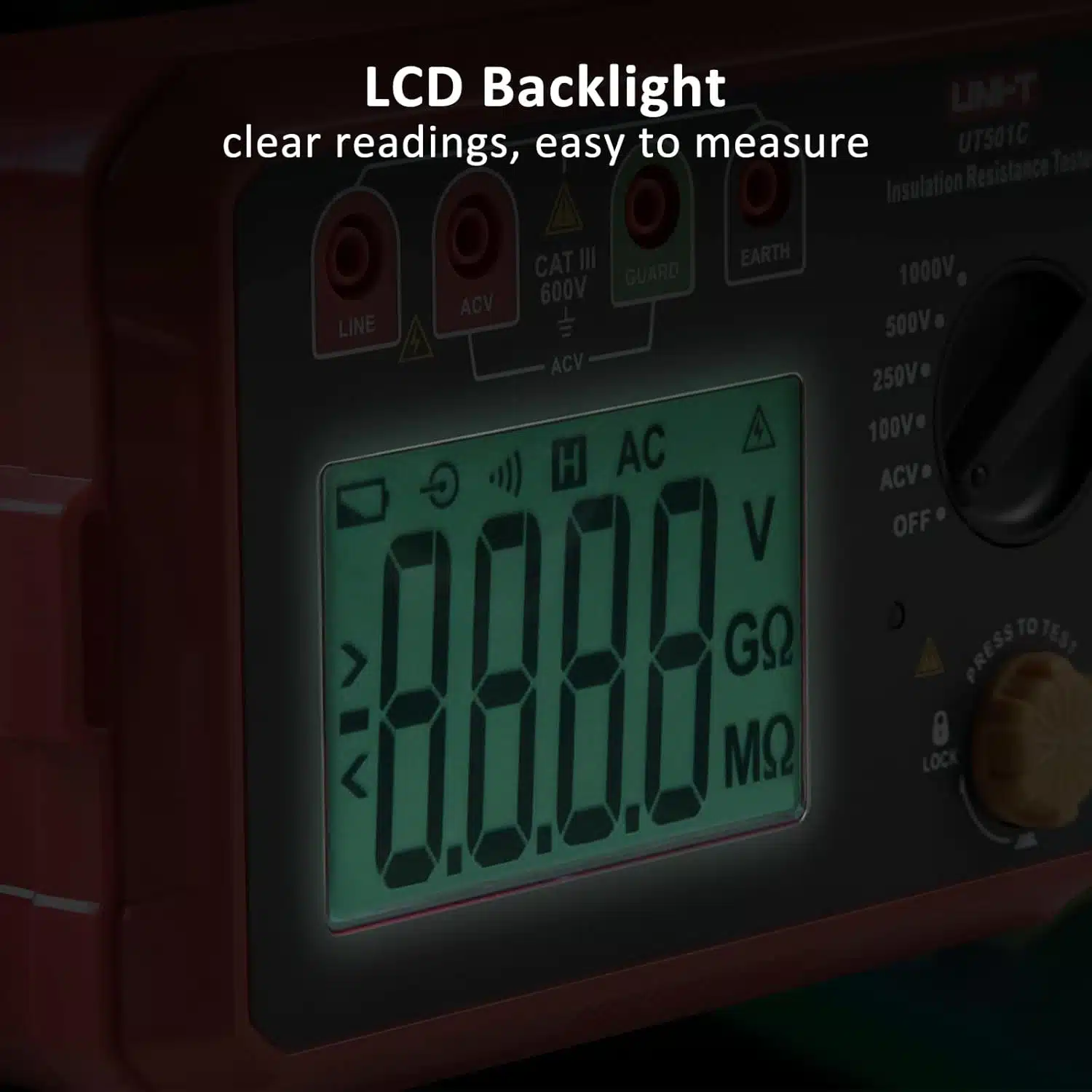

| Backlight function | √ | ||
| Altitude | ≤2000 m | ||
| Operating temperature and Humidity | 0℃~35℃,<75% RH | ||
| Storage temperature and Humidity | -20℃~60℃,<80% RH | ||
| Rating | CAT III 600V | ||
| General Characteristics | |||
| Product Color | Red + grey | ||
| Product Weight (Include batteries) |
0.6kg | ||
| Product Size | 183.5mmx115mmx74mm | ||
| Accessories | User manual *1 pcs；test lead *1 set；Alligator *1 set,Strap *1 pcs, 1.5V AA batteries *6pcs. | ||
| Standard Package | Gift box+ cloth bag | ||
| Package Quantity | Outer Carton：20pcs | ||
| Package Size | 345mmx335mmx245mm | ||
