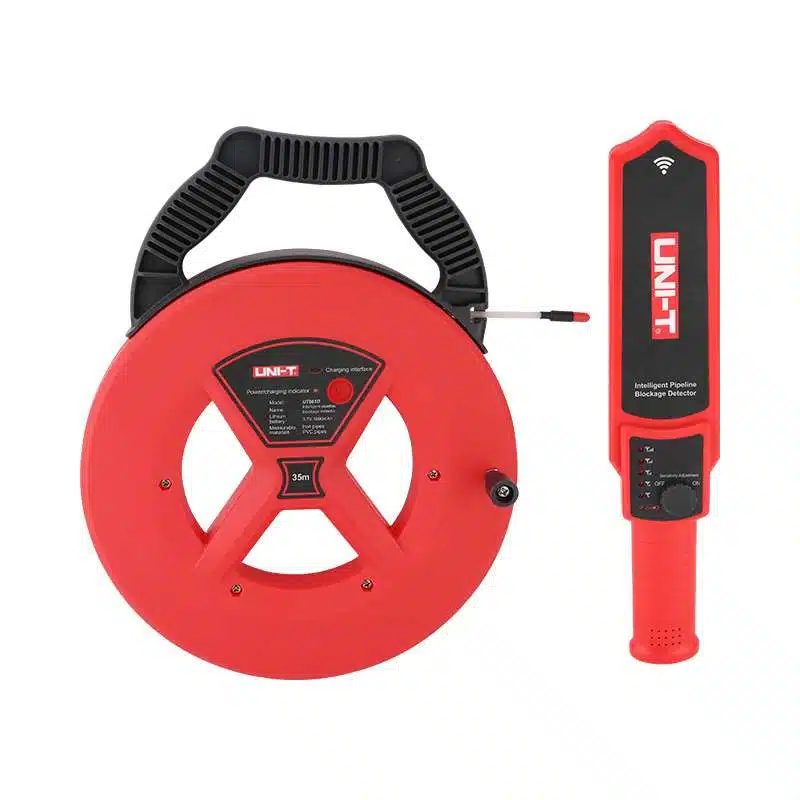

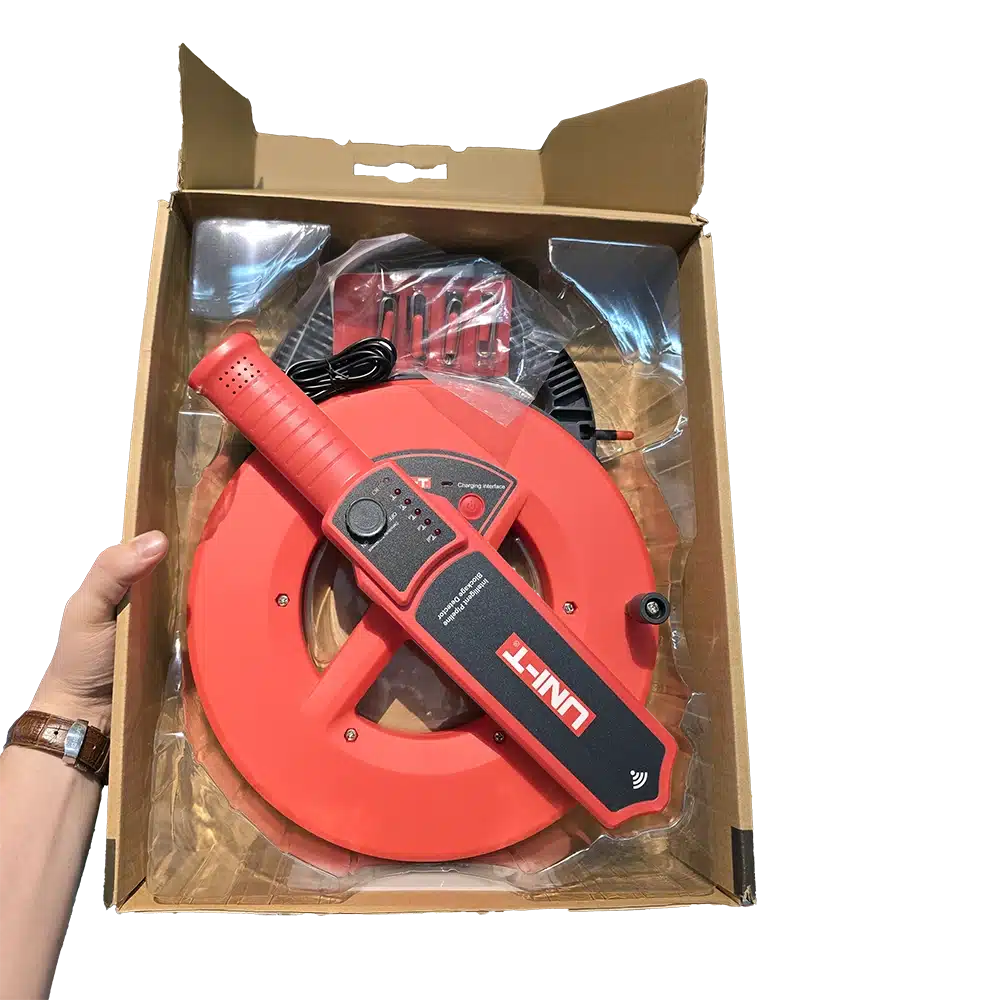

گرفتگی یاب یونی تی مدل UNI-T UT661D

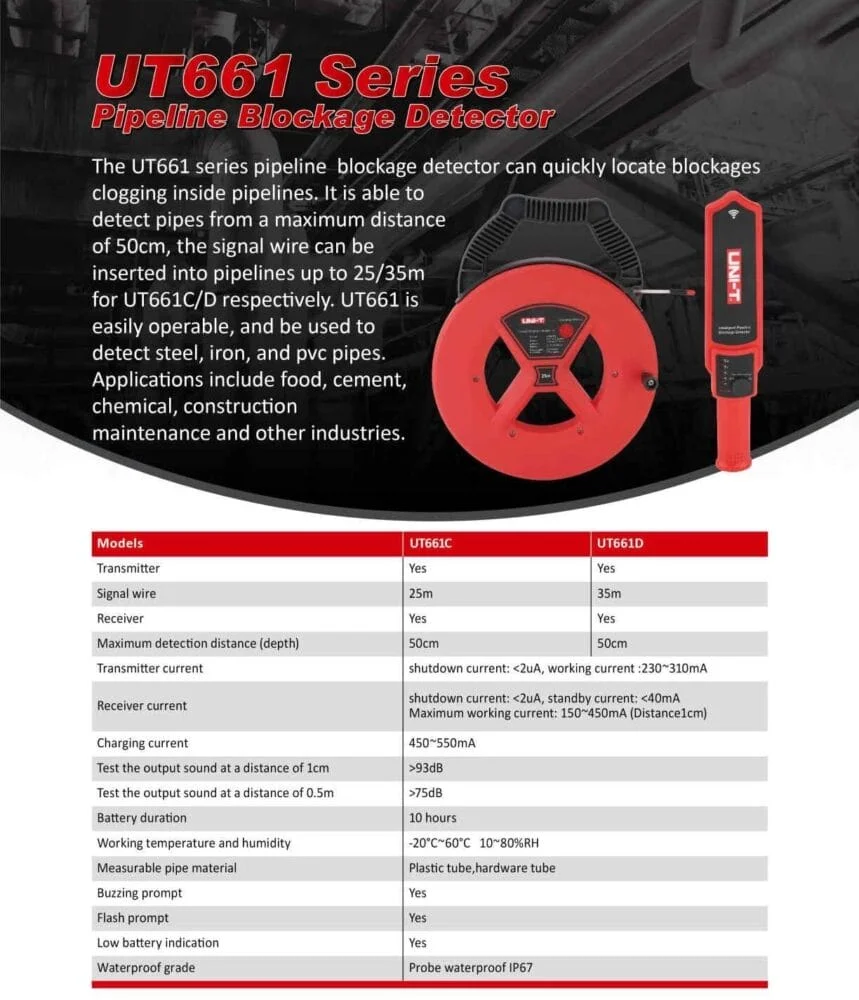

Specifications | UT661C | UT661D |

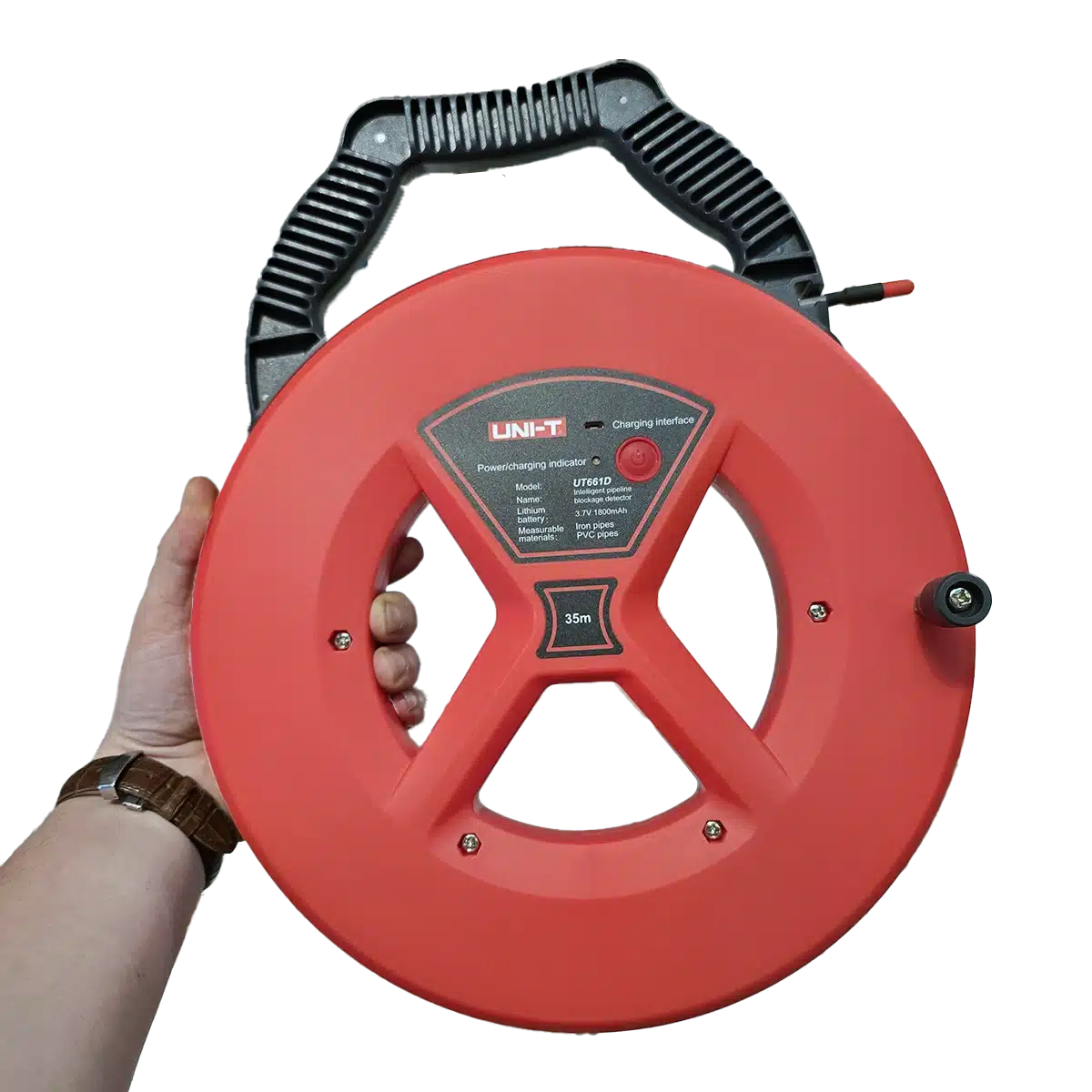

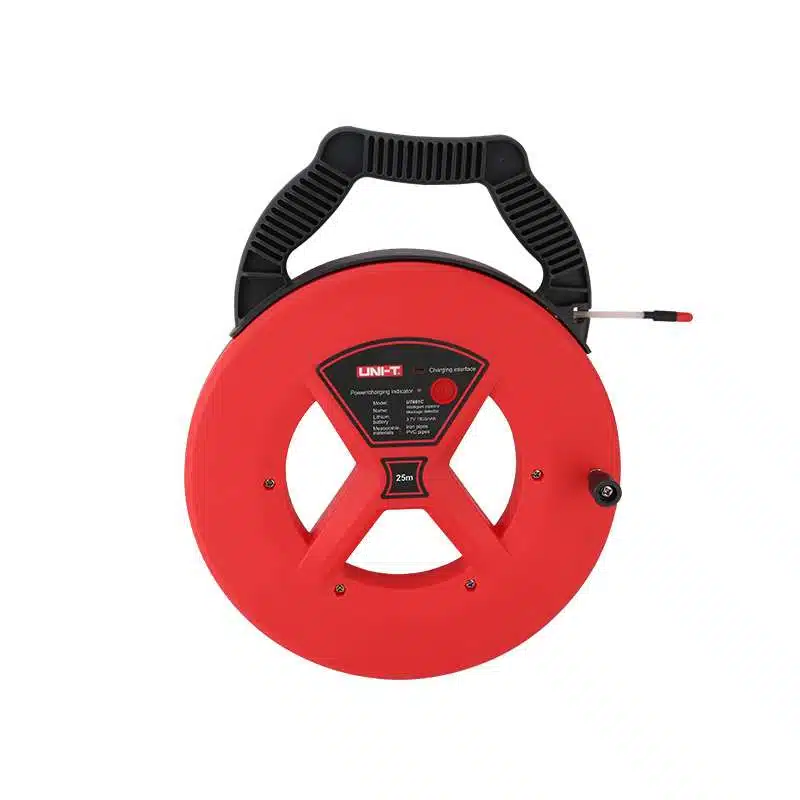

Transmitter | Yes | Yes |
Signal wire | 25m | 35m |

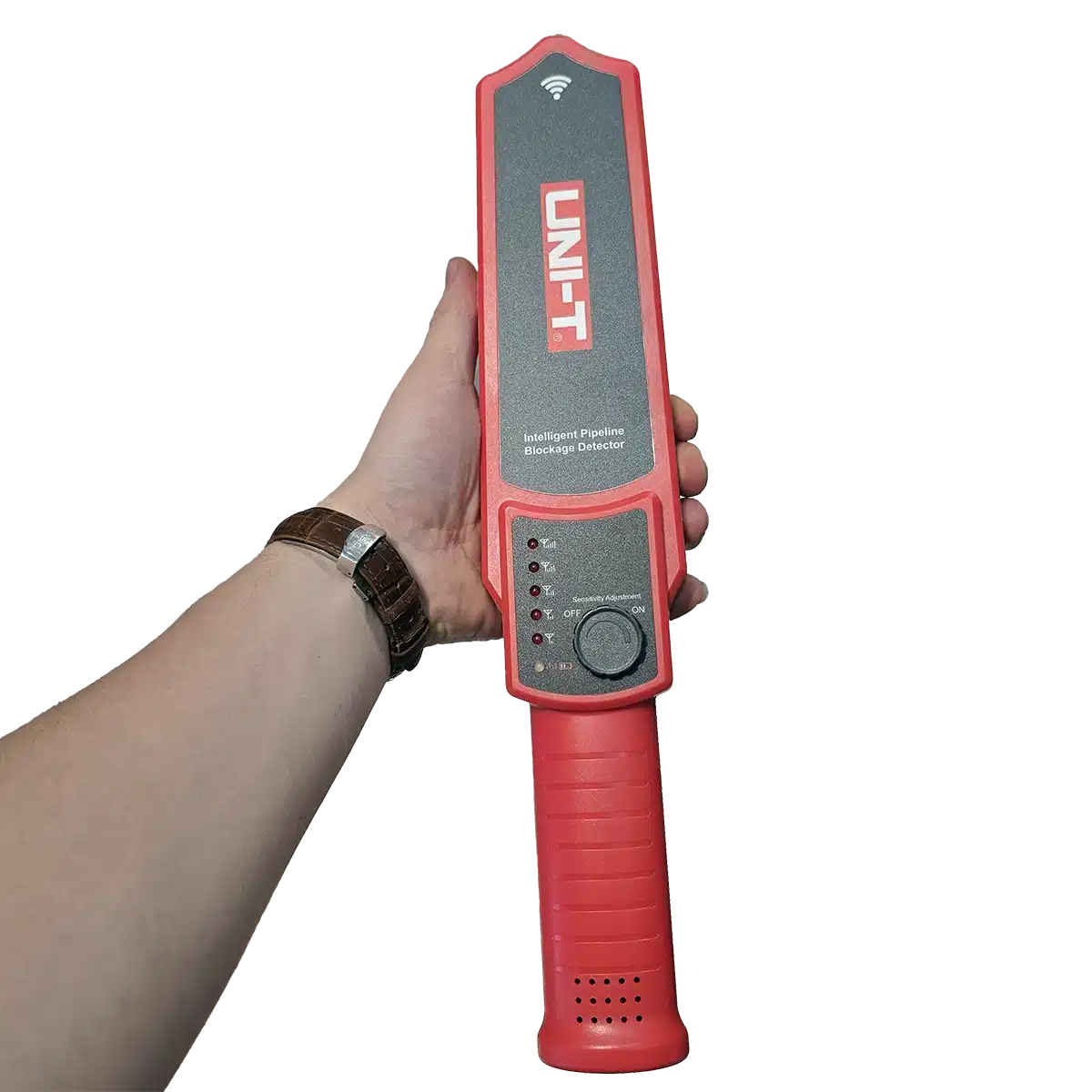

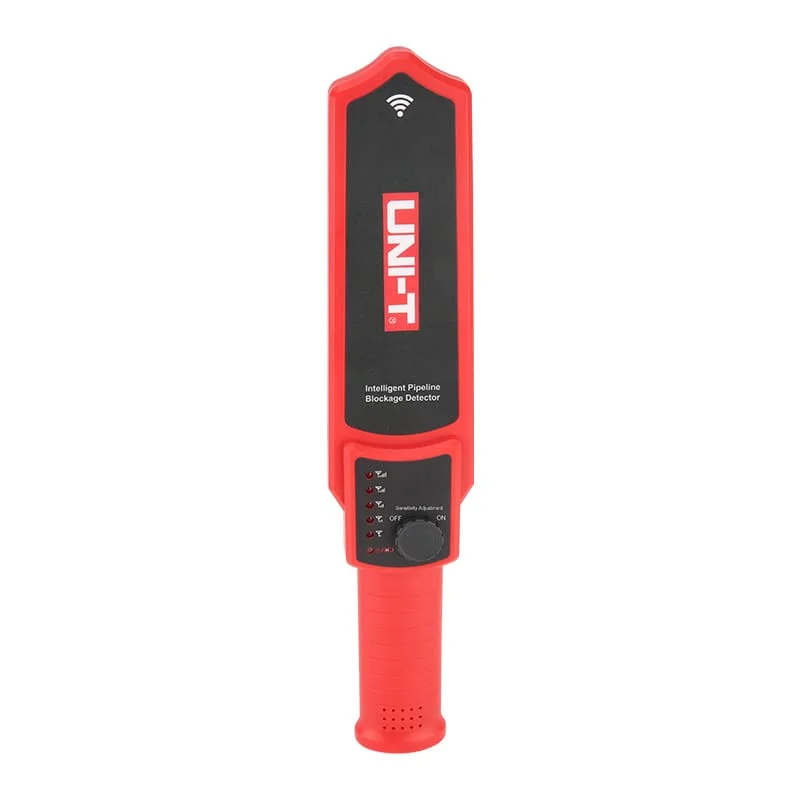

Receiver | Yes | Yes |

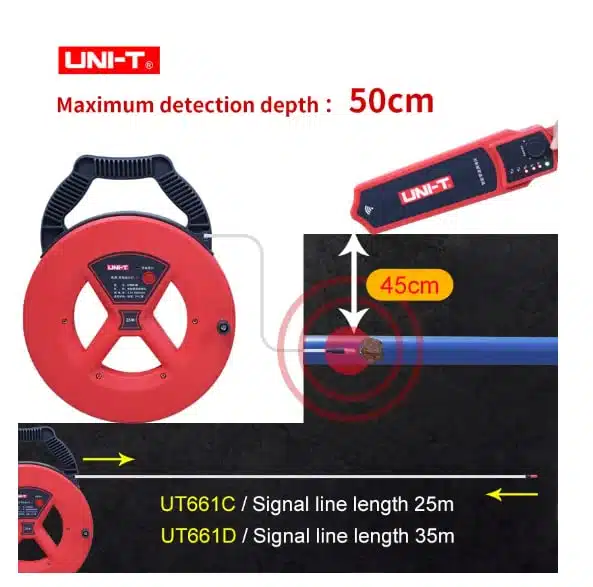

Maximum detection distance(depth) | 50cm | 50cm |
Transmitter current | Shutdown current: <2uA, working current: 230~310mA | |
Receiver current | Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm) |
|
Charging current | 450~550mA | |
Test the output sound at a distance of 1cm | >93dB | |
Test the output sound at a distance of 0.5m | >75dB | |
Battery duration | 10 hours | |
Operting temperature and humidity | -20°C~60°C, 10~80%RH | |
Measurable pipe material | Plastic pipes, metal pipes | |
Buzzing prompt | Yes | |
Flash prompt | Yes | |
Low battery indication | Yes | |
Waterproof grade | Probe waterproof IP67 | |
General Characteristics | ||
Transmitter battery | Built-in lithium battery (3.7V 1800mAh) | |

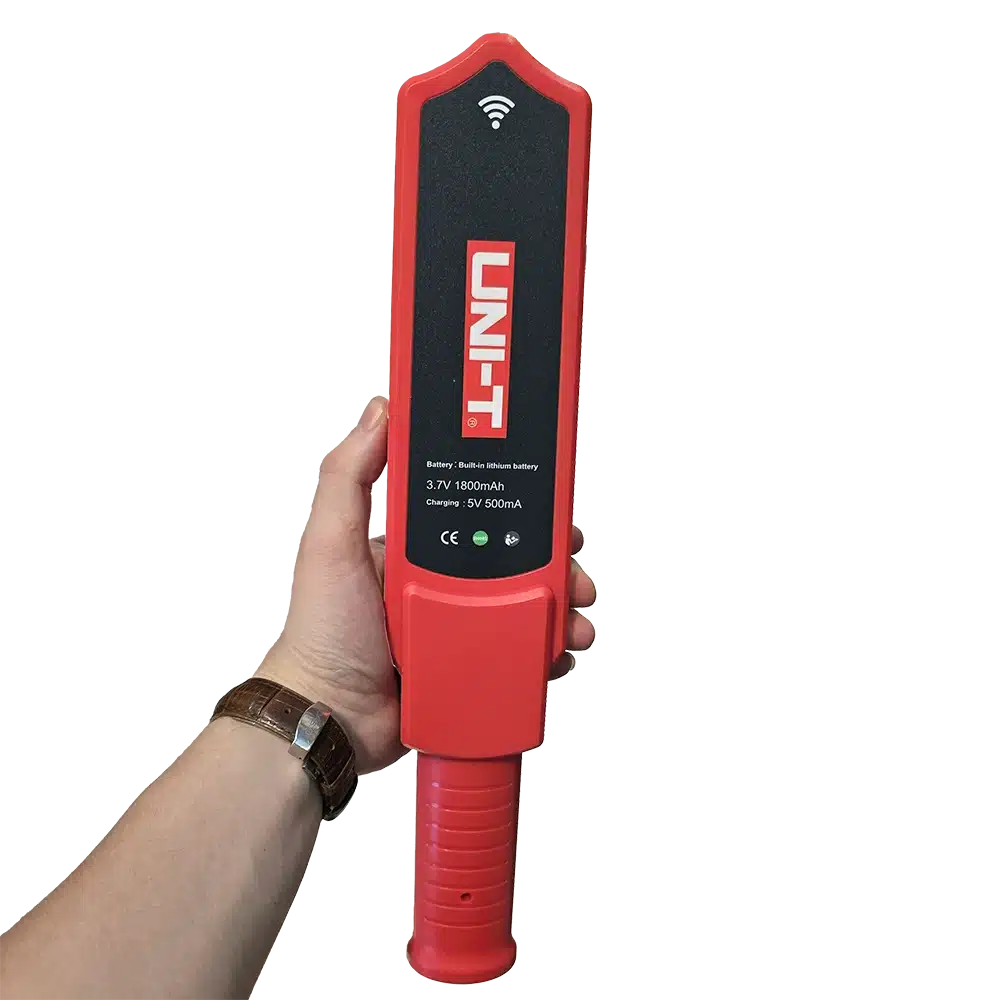

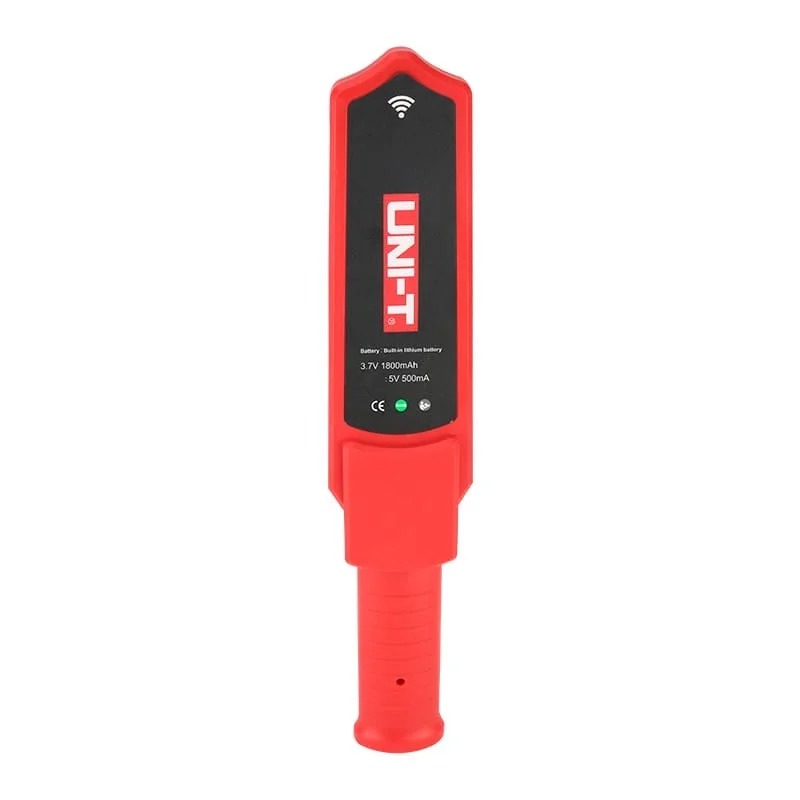

Receiver battery | Built-in lithium battery (3.7V 1800mAh) | |
Color | Red and grey | |
Weight | Transmitter: 1.24KG Receiver: 0.26KG |
Transmitter: 1.42KG Receiver: 0.26KG |
External dimension | Tansmitter: 38x30x42mm Receiver: 40x38x80mm |
|

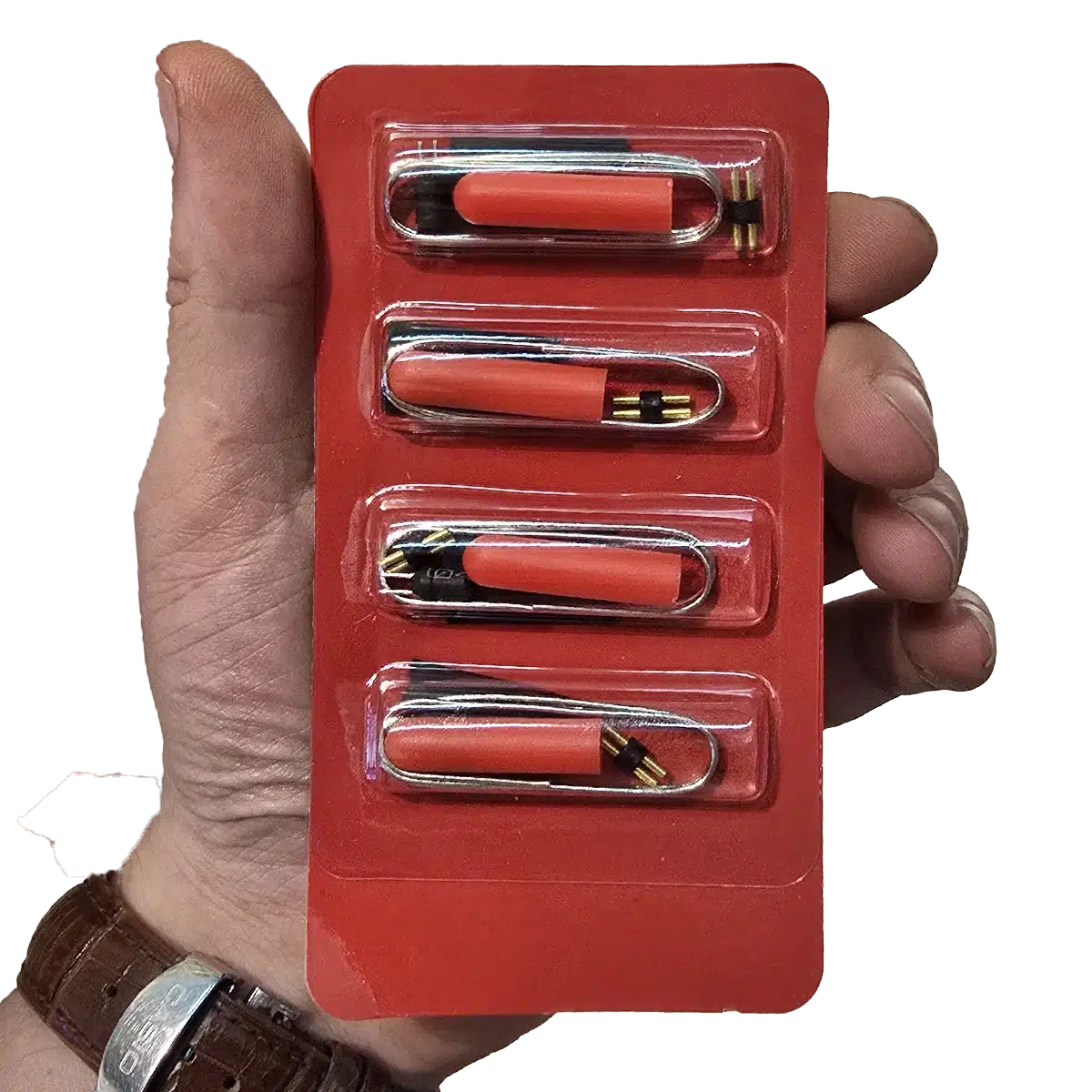

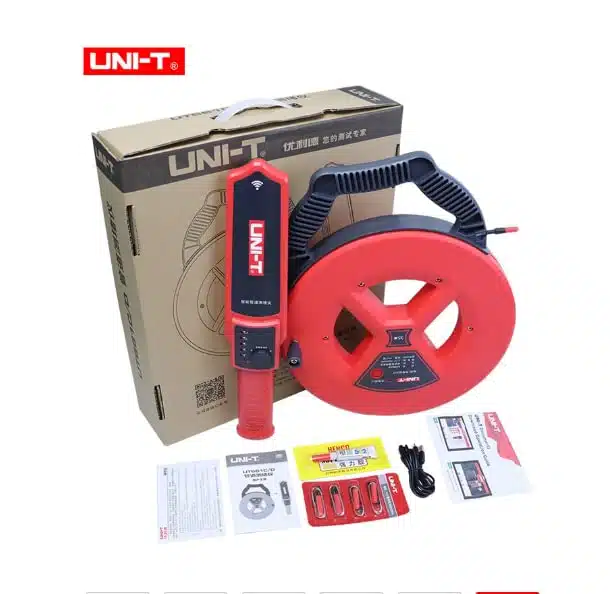

Standard accessories | Charging cable, Probe kit | |

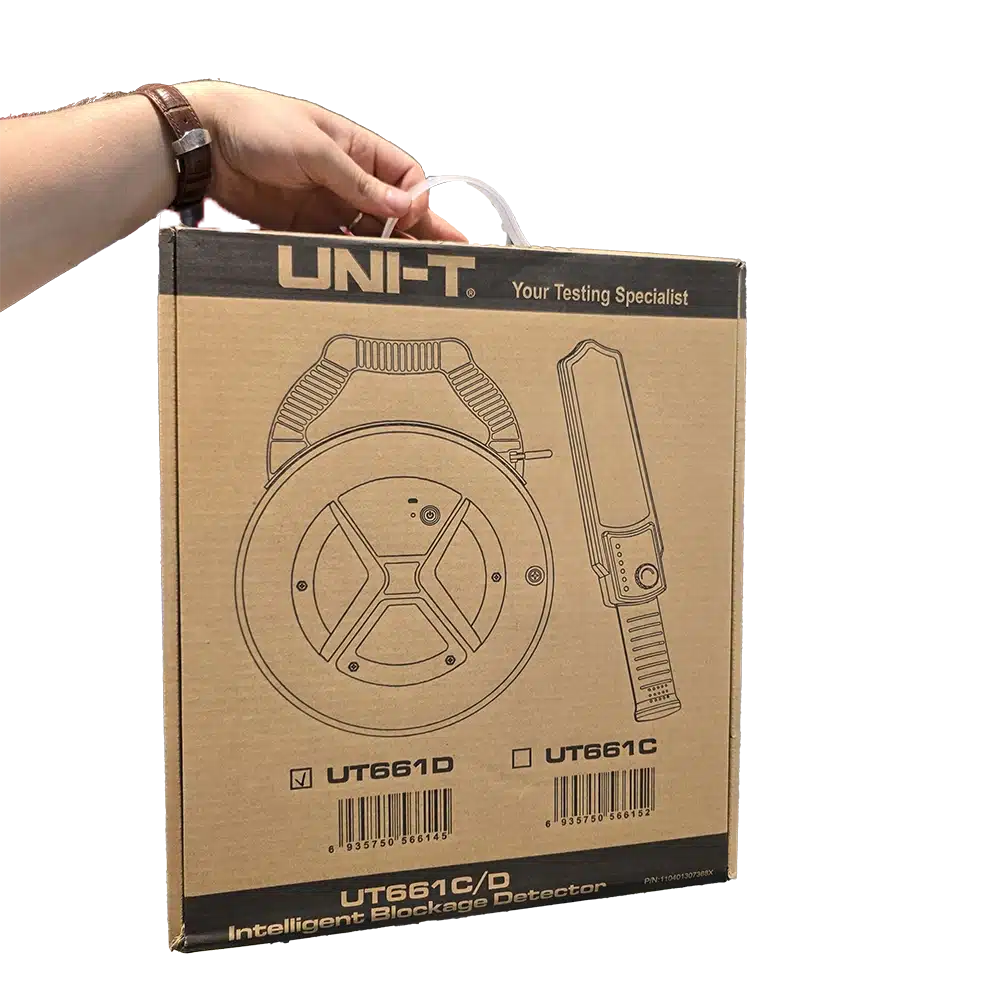

Standard individual packing | Gift box, English manual, Warranty card | |
Standard quantity per carton | 5pcs | |
Standard packing size | 405x90x350mm |
