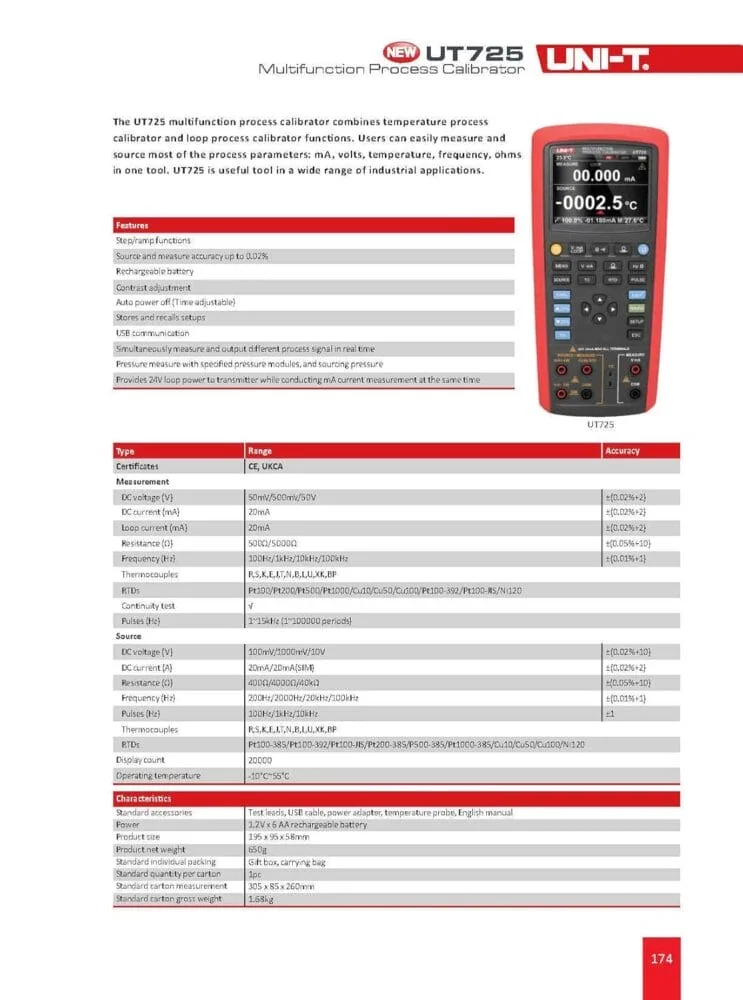

| Specifications |
Range |
UT725 |
| Measurement |
| DC voltage (V) |
50mV/500mV/50V |
±(0.02%+2) |

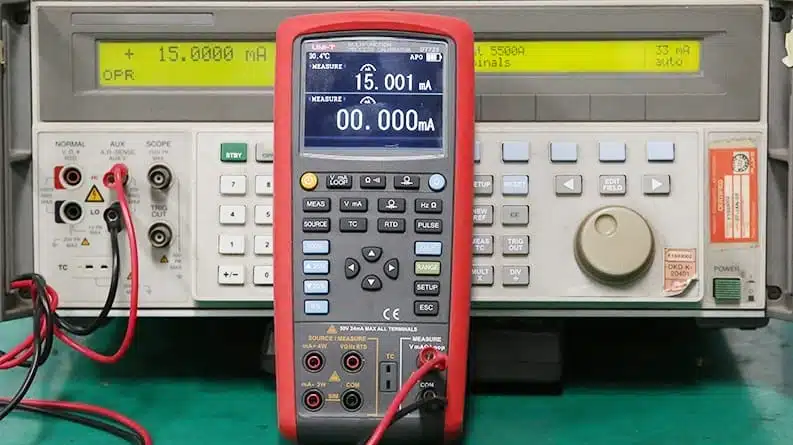

| DC current (mA) |
20mA |
±(0.02%+2) |
| Loop current (mA) |
20mA |
±(0.02%+2) |
| Resistance (Ω) |
500Ω/5000Ω |
±(0.05%+10) |
| Frequency (Hz) |
100Hz/1kHz/10kHz/100kHz |
±(0.01%+1) |

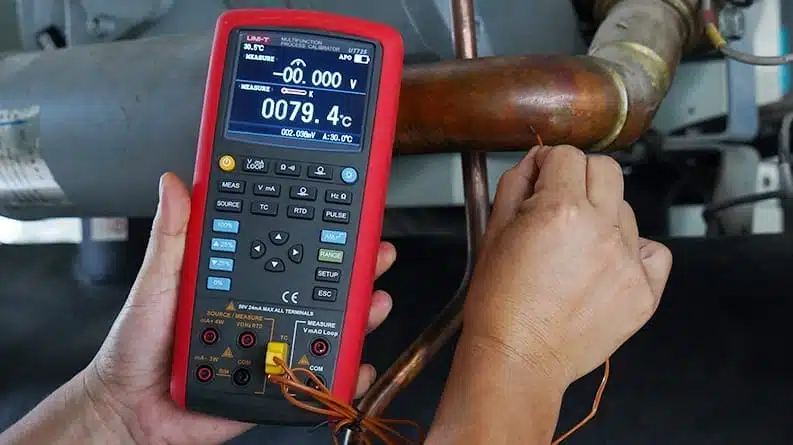

| Thermocouples |
R,S,K,E,J,T,N,B,L,U,XK,BP |
| RTDs |
Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 |
| Continuity test |
√ |
| Pulses (Hz) |
1~15kHz (1~100000 periods) |
| Source accuracy |
| DC voltage (V) |
100mV/1000mV/10V |
±(0.02%+10) |
| DC current (A) |
20mA/20mA(SIM) |
±(0.02%+2) |
| Resistance (Ω) |
400Ω/4000Ω/40kΩ |
±(0.05%+10) |
| Frequency (Hz) |
200Hz/2000Hz/20kHz/100kHz |
±(0.01%+1) |
| Pulses (Hz) |
100Hz/1kHz/10kHz |
±1 |
| Thermocouples |
R,S,K,E,J,T,N,B,L,U,XK,BP |
| RTDs |
Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 |
| Display count |
20000 |
| Operation temperature |
-10°C~55°C |
| General Characteristics |
| Power |
1.2V x 6 AA rechargeable battery |
| Product net weight |
650g |
| Product size |
195mm x 95mm x 58mm |
| Standard accessory |
Test lead, USB cable, power adapter, temperature probe, English manual |
