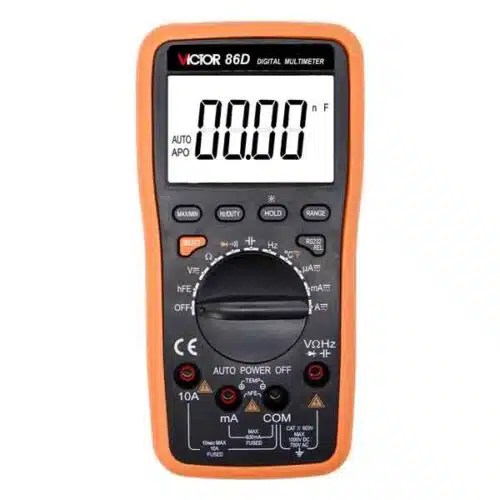

مولتی متر ویکتور مدل Victor VC-86D
-
مولتی متر دستی اتورنج
-
قابلیت اتصال به کامپیوتر
-
دارای فرکانس متر
-
دارای بارگراف
-
دما سنج
-
نور پس زمینه صفحه نمایش
-
خاموشی اتوماتیک جهت بهینه شدن مصرف باتری
|
Basic Function
|
Range
|
Basic Function
|
|
|
DC Voltage
|
600mV/6V/60V/600V/1000V
|
±(0.5%+4)
|
|
|
AC Voltage
|
6V/60V/600V/750V
|
±(0.8%+10)
|
|
|
DC Current
|
600uA/6000uA /60mA/600mA/6A/10A
|
±(1.2%+10)
|
|
|
AC Current
|
600uA/6000uA /60mA/600mA/6A/10A
|
±(1.5%+10)
|
|
|
Resistance
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
|
±(0.8%+4)
|
|
|
Capacitance
|
40nF/400nF/4uF/40uF/200uF
|
±(3.5%+8)
|
|
|
Frequency
|
100Hz/1kHz/10kHz/100kHz/1MHz/30MHz
|
±(0.5%+15)
|
|
|
Temperature/Celsius
|
(-20 ~ 1000) ℃ /(0~1832) ℉
|
±(1.5%+15)
|
|
|
Special Function
|
86D
|
||
|
Diode test
|
√
|
||
|
Transistor test
|
√
|
||
|
Continuity buzzer
|
√
|
||
|
Low battery indication
|
√
|
||
|
Data hold
|
√
|
||
|
Auto power off
|
√
|
||
|
Bar graph display
|
61 segment(30times/s)
|
||
|
RS232 interface jack
|
√
|
||
|
Max./ Min
|
√
|
||
|
Function protection
|
√
|
||
|
Shockproof protection
|
√
|
||
|
Frequency /duty cycle
|
0.1%~99.9%
|
||
|
Input impedance
|
10MΩ
|
||
|
Sampling rate
|
3 times/s
|
||
|
AC Frequency response
|
(40-400)Hz
|
||
|
Operation way
|
Manual/Auto range
|
||
|
Max. display
|
5999
|
||
|
LCD Size
|
70×50mm
|
||
|
Power
|
1.5*2
|
|
Product Color
|
Case: black; Holster color: orange
|
|
Product Net Weight
|
Approx.410g (including battery)
|
|
Standard Accessories
|
Test leads; battery; instruction manual TP01
temperature probe; Holster |
|
Standard inner packing
|
Color box
|
|
Standard Quantity Per Carton
|
30Pcs
|
|
Standard Gross Weight
|
Approx. 23kg
|
