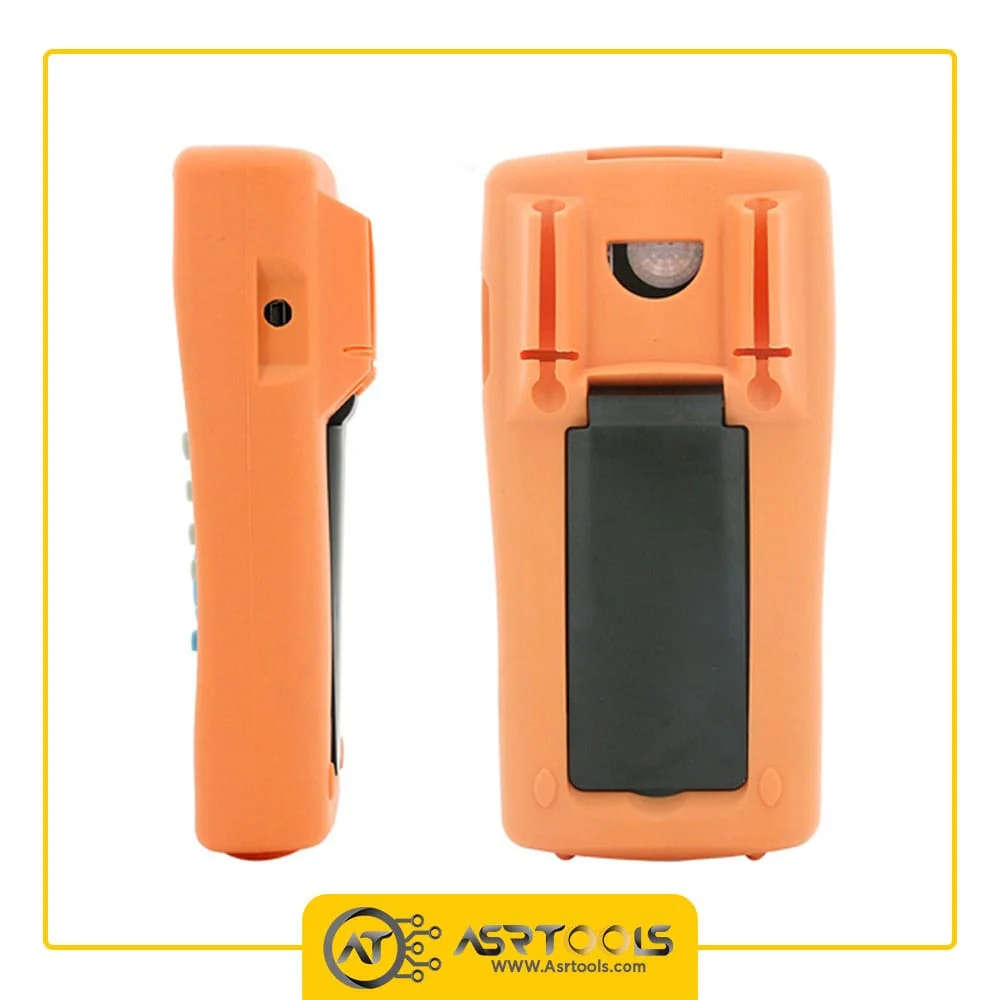

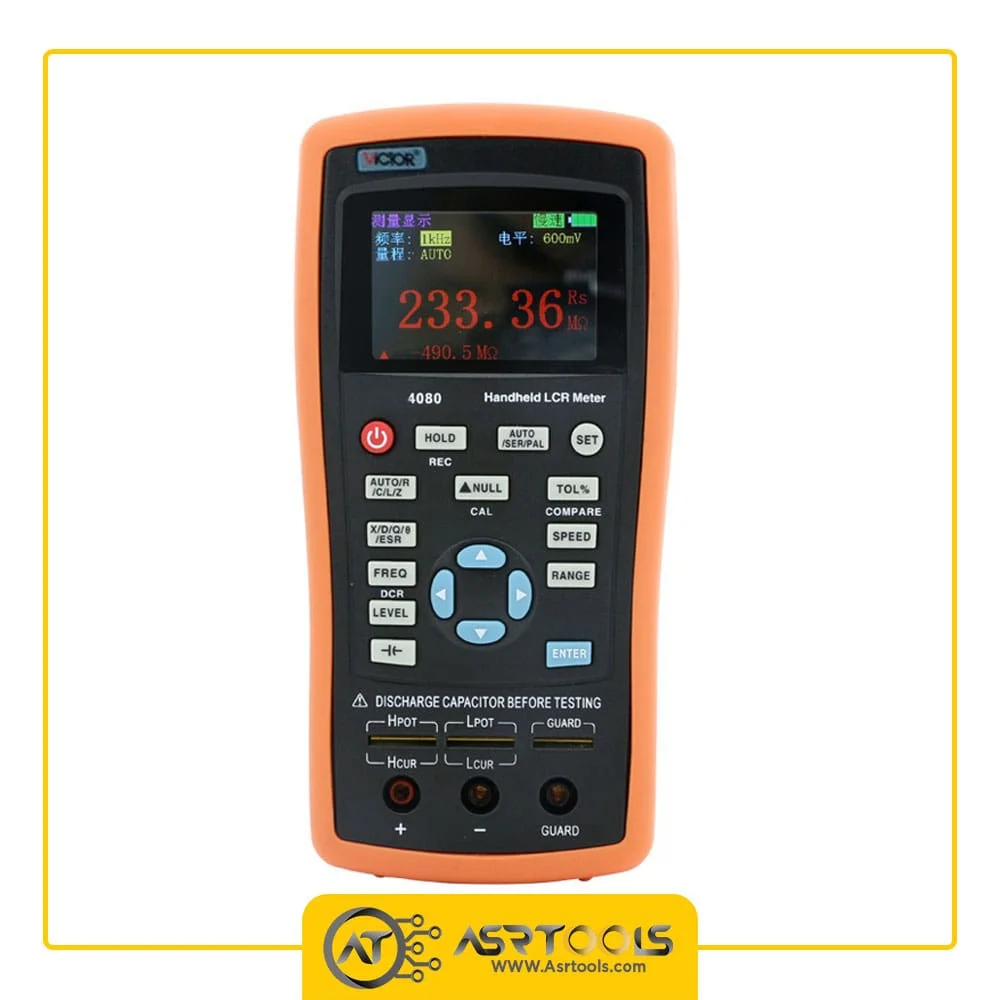

LCR متر دیجیتال ویکتور مدل Victor VC-4080

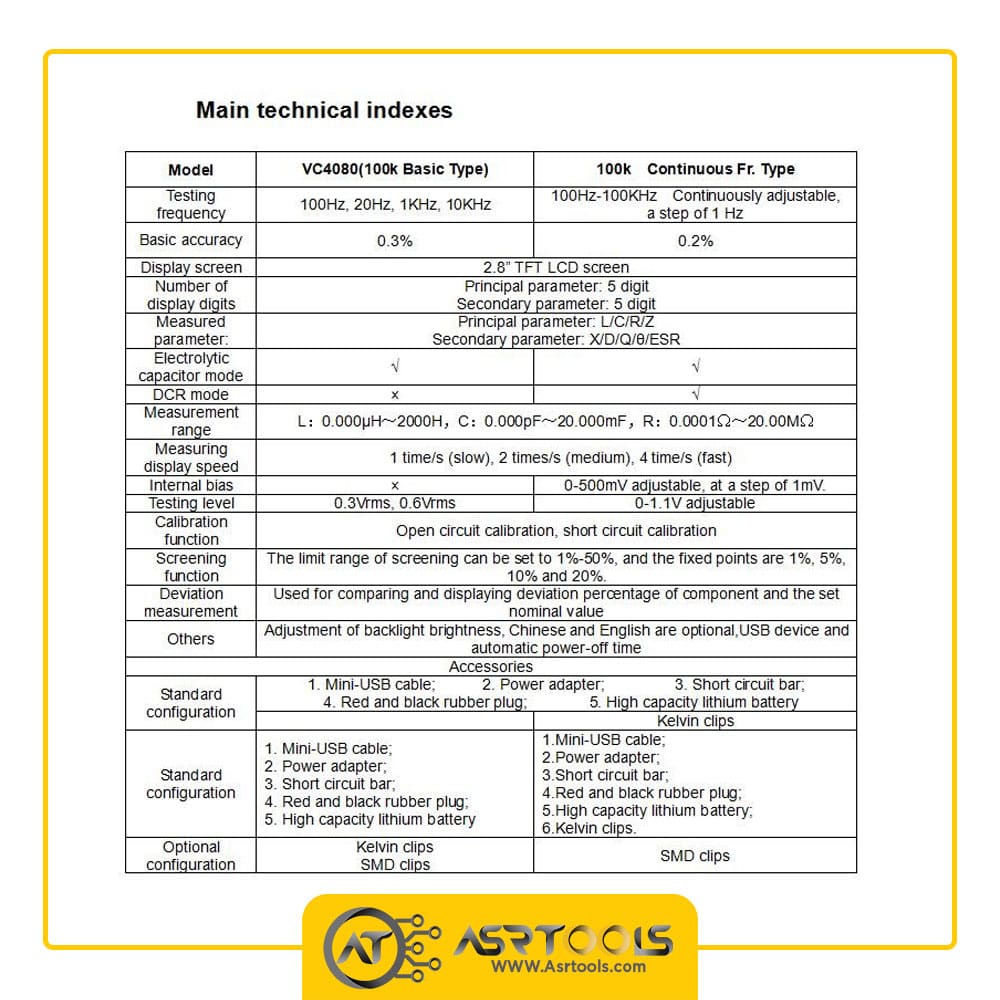

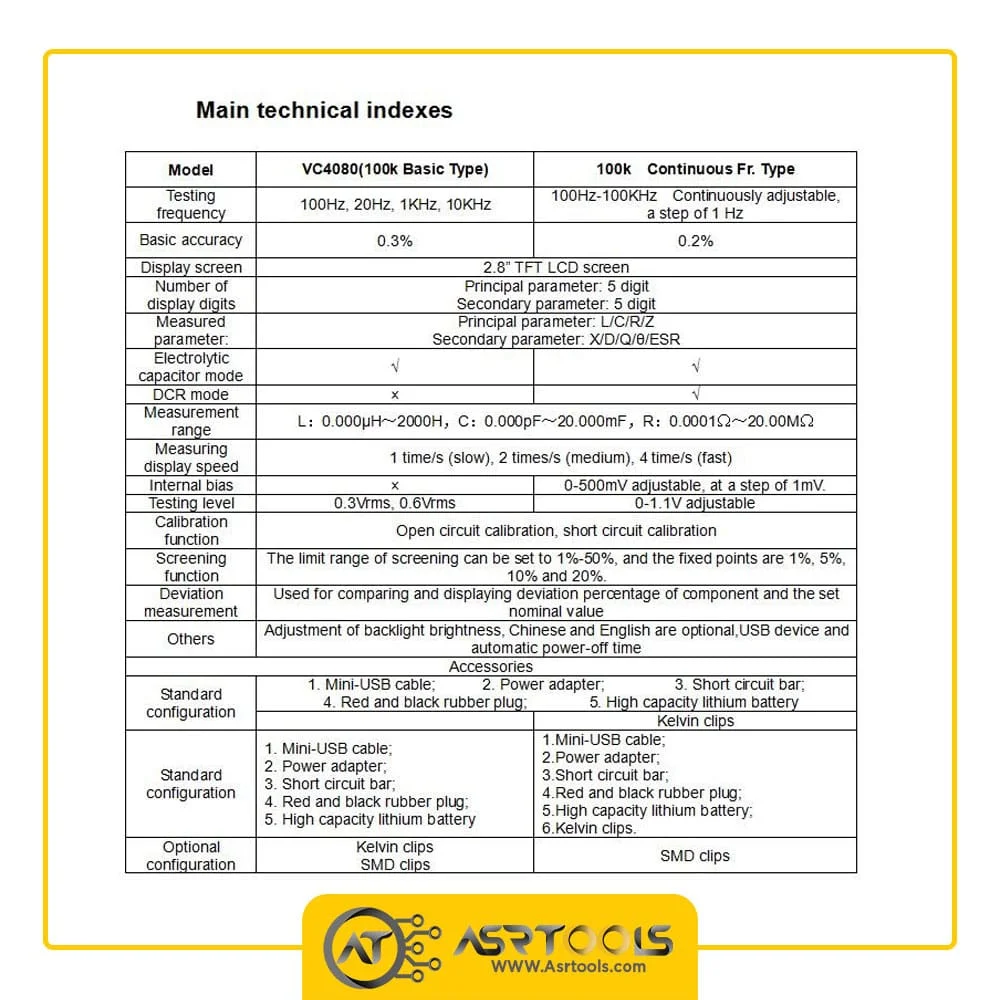

| Handheld LCR meter | 4080 | 4082 |
| Testing frequency | 100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz | 100Hz-100KHz adjustable, step from 1Hz |
| Basic accuracy | 0.3% | 0.2% |
| Electrolytic capacitor mode | √ | √ |
| DCR mode | × | √ |
| Bias Voltage | × | 0-500mV can be adjustable, step from 1mV |
| Electric level | 0.6Vrms | 0-0.7 adjustable |
| Screen | 2.8 inches TET LCD | |
| Digits display | Main parameter: 5 digits; auxiliary parameter: 5 digits | |
| Measuring parameters | ||
| Main parameter | L/C/R/Z | |
| Auxiliary parameter | X/D/Q/ESR | X/D/Q/θ/ESR |
| Measuring Range | (L) 0-2000H | |
| Measuring Range | (C) 0-20mF | |
| Measuring Range | (R) 0-20MΩ | |
| Measuring speed | 1 time/s (slow), 2 times/s (moderate), 4 times/s (fast) | |
| Calibration function | Open circuit calibration, short circuit calibration | |
| Filtering function | Limit scope 1%~50% can be set; 1%, 5%, 10%, 20% are the fix points | |
| errors measurement | is use for comparing the percent errors between components and nominal value, meanwhile display | |
| others | Backlight luminance can be adjustable; USB device and auto power off can be set | |
| Standard Accessories | Mini-USB cable; power adapter; short-circuit plate; plug made of red and black rubber; Lithium battery with large capacity | |
