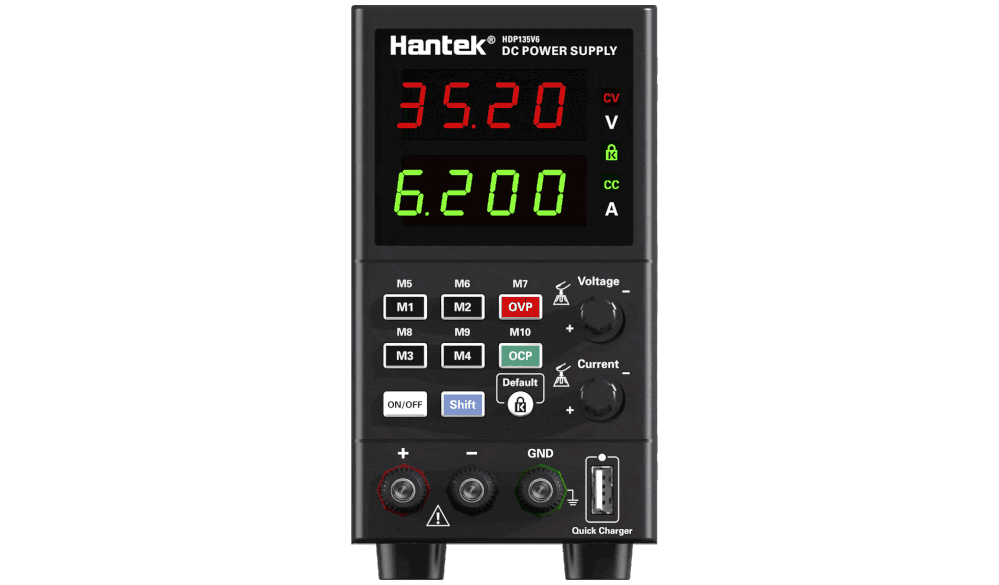

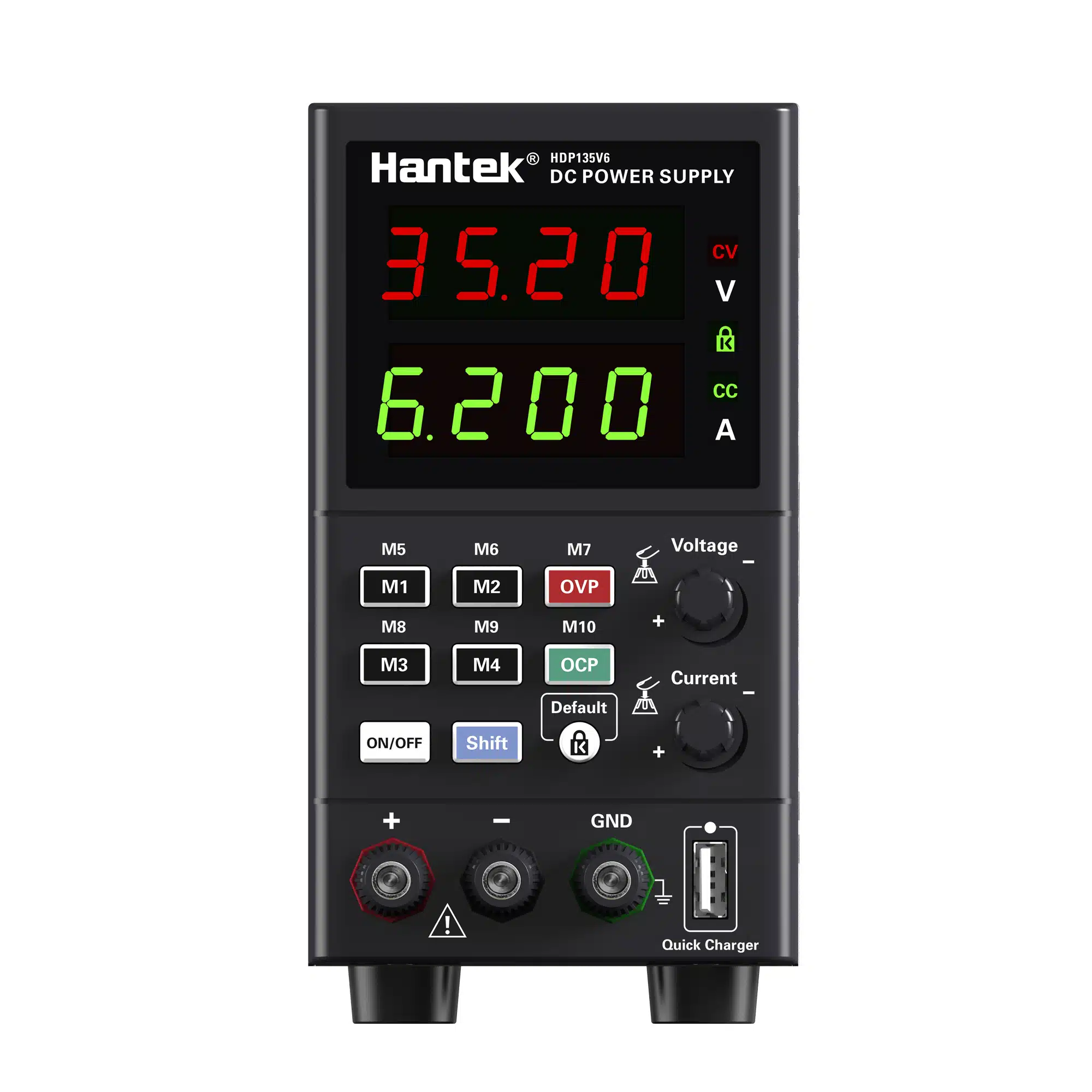

منبع تغذیه قابل برنامه ریزی هانتک مدل HANTEK HDP135V6S دارای مشخصات فنی زیر است:

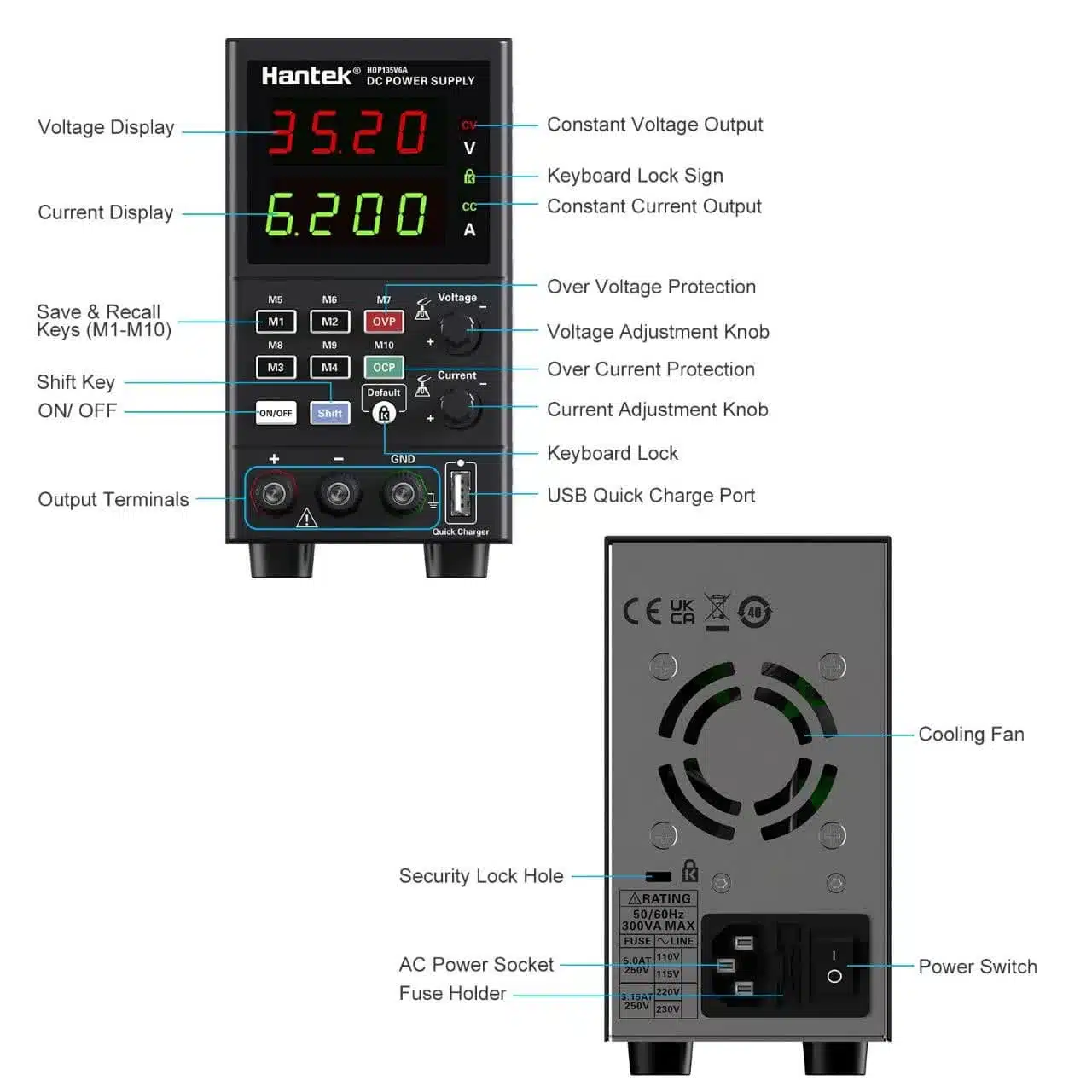

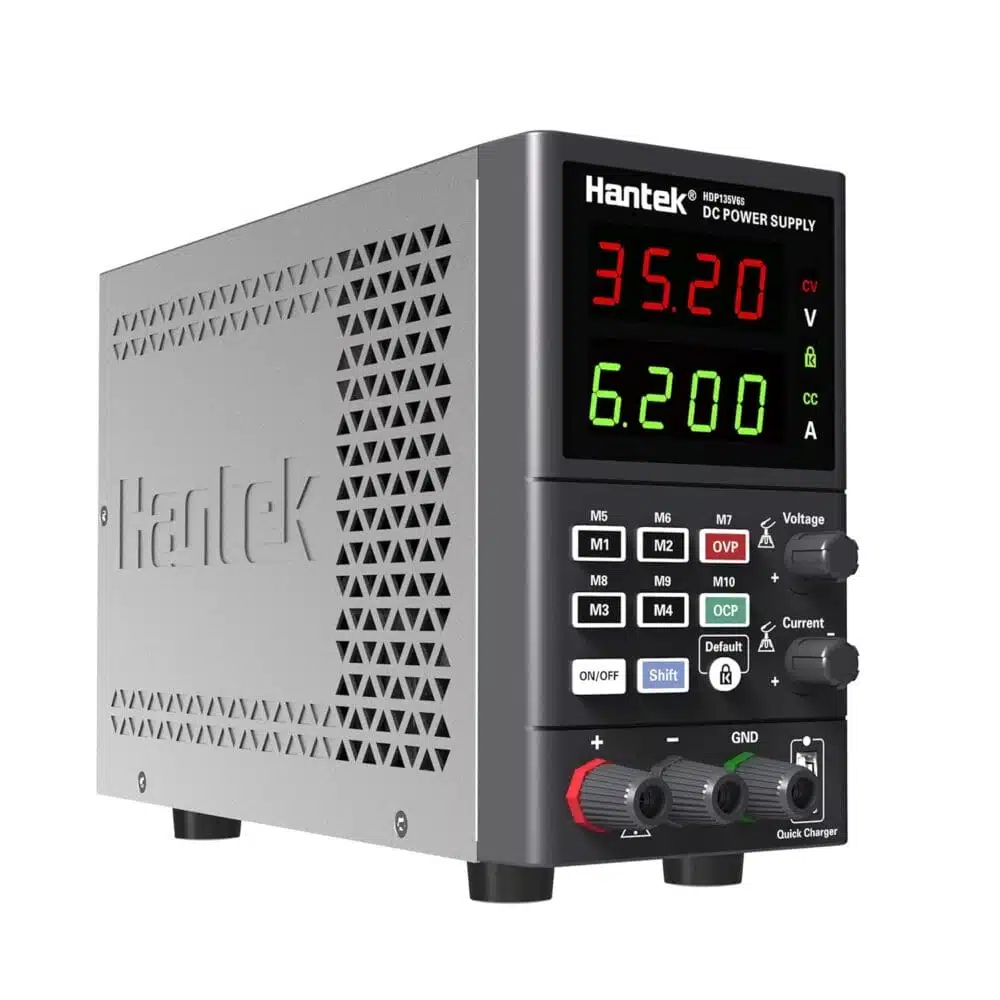

منبع تغذیه قابل برنامه ریزی هانتک مدل HANTEK HDP135V6A عصرتولز
| Model | HDP135V6 | HDP135V6S | HDP135V6A | HDP135V6B |
| Channel | 1CH | |||
| Storage | 10 Groups of data | |||
| Output voltage/current | 35V/6A | |||
| Input voltage | 115 VAC ± 10%, 230 VAC ± 10%, 50/60Hz | 230 VAC ± 10%, 50/60Hz | 115 VAC ± 10%, 50/60Hz | |
| Maximum output power | 210W | |||

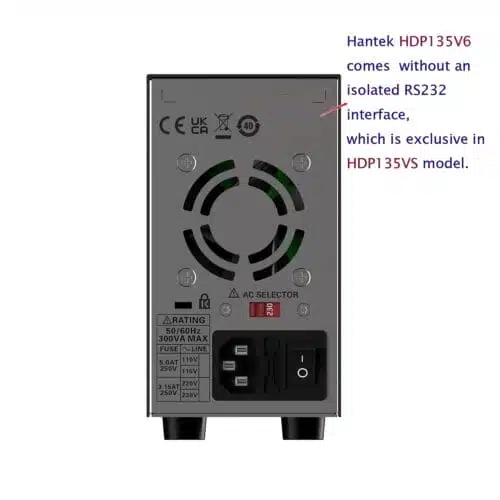

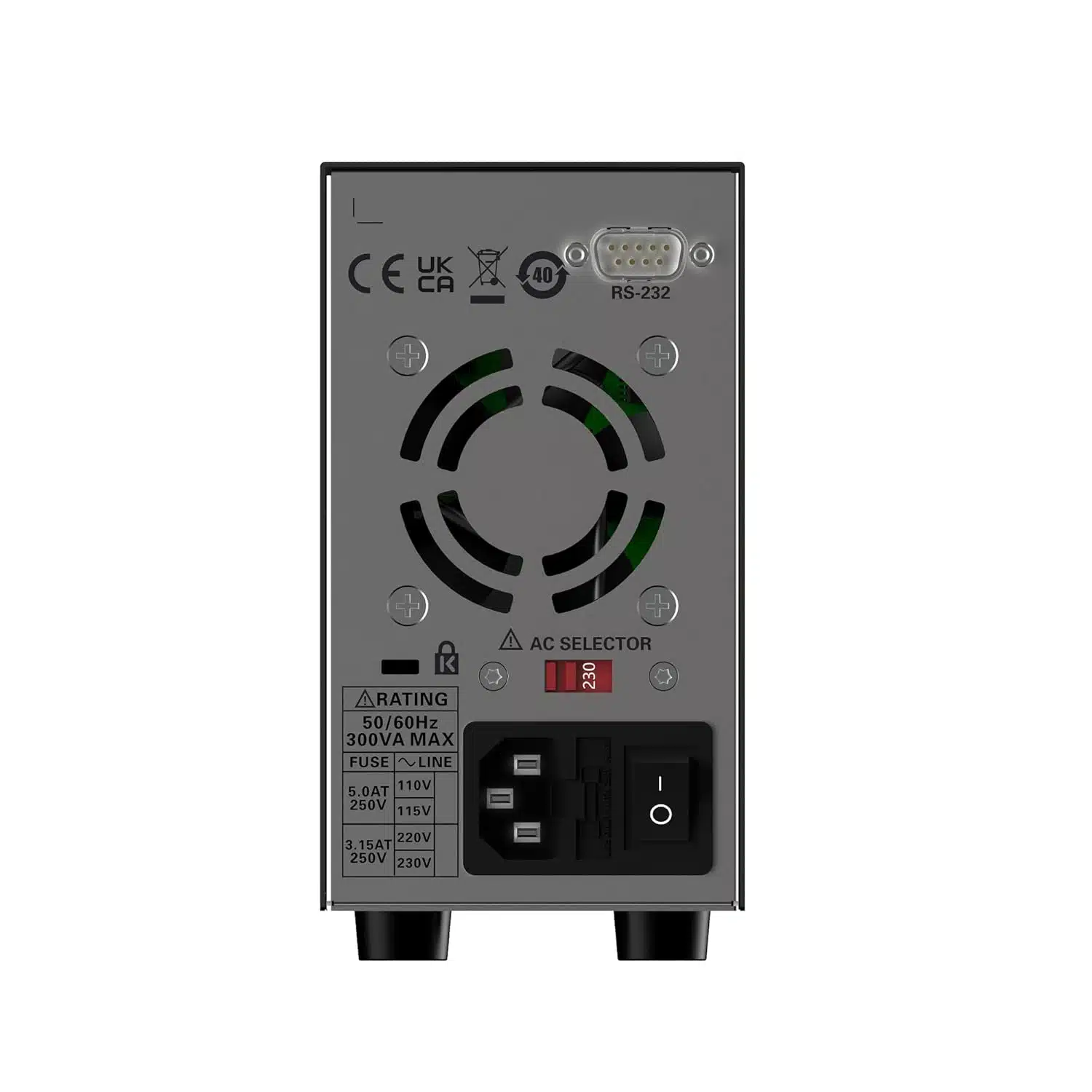

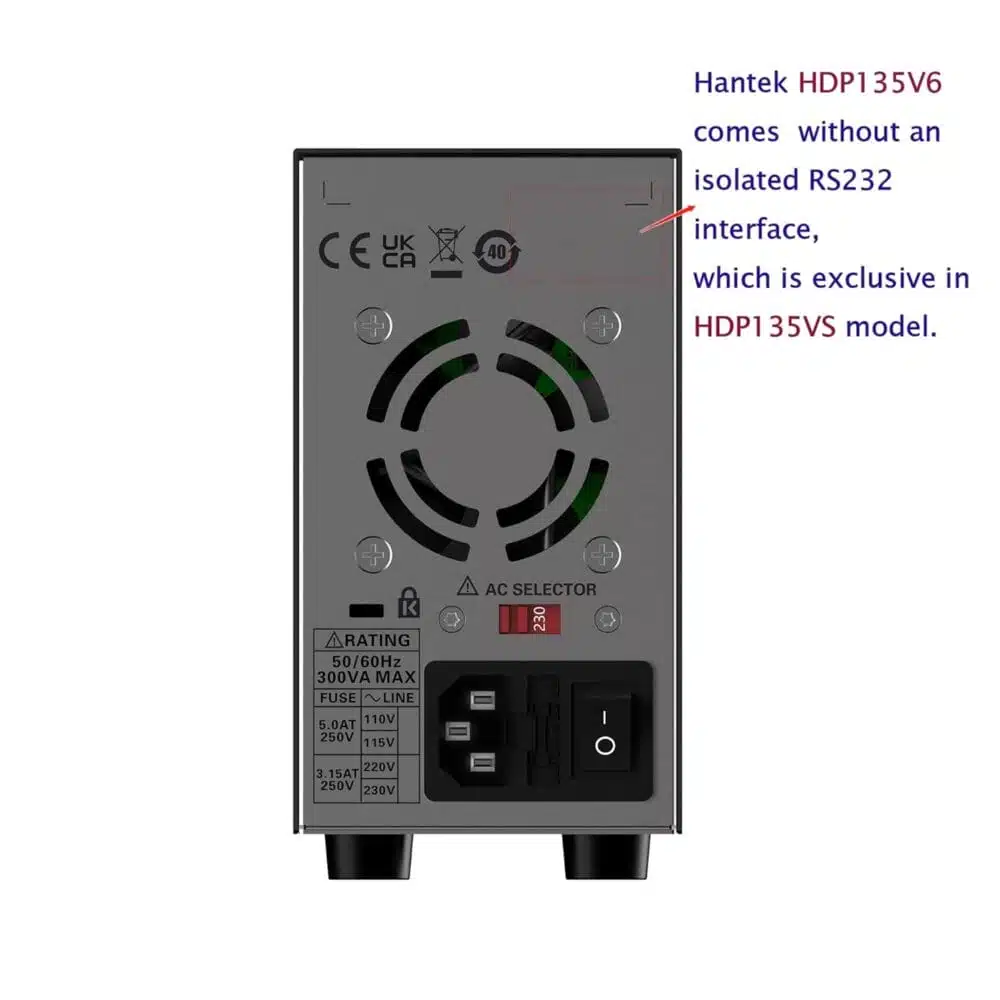

| Communication interface | None | RS232 | None | None |
| Voltage | ||||
| Load regulation | ≤0.1% + 5 mv | |||
| Linear regulation | ≤0.01% + 5 mv | |||
| Set resolution | 10mV | |||
| Set precision | ≤0.1% + 1 digits | |||
| Read back resolution | 10mV | |||
| Read back accuracy | ≤0.1% + 1 digits | |||
| Ripple | 10mVrms | |||
| Current | ||||
| Load regulation | ≤0.2% + 3mA | |||
| Linear regulation | ≤0.2% + 3mA | |||
| Set resolution | 1mA | |||
| Set precision | ≤0.2% + 3mA | |||
| Read back resolution | 1mA | |||
| Read back accuracy | ≤0.2% + 3 digits | |||
| Ripple | 5mArms | |||
| Overvoltage protection (OVP) | 0 ~ 35V ± 0.2%FS | |||
| Maximum voltage | 35V ± 0.2% | |||
| Overcurrent protection (OCP) | 0 ~ 6A ± 0.2%FS | |||
| Maximum current | 6A ± 0.2% | |||

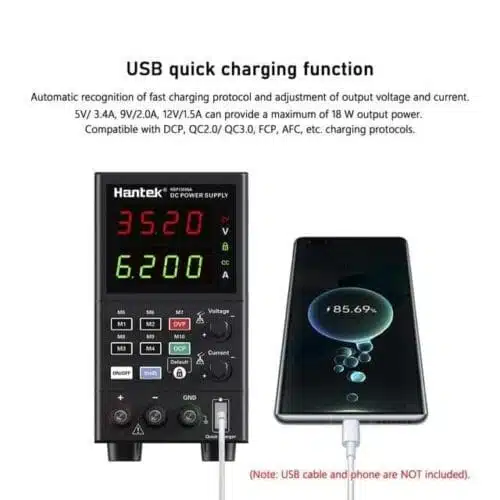

| Quick charge | ||||
| Output voltage range | 5V~12V | |||
| Output power | Maximum: 18 w | |||
| Supported fast charging protocol | DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC | |||
| General features | ||||
| Working conditions | Temperature -10 ° C to 40 ° C, relative humidity ≤80% | |||
| Storage conditions | Temperature -20 ° C to 60 ° C, relative humidity ≤80% | |||
| Cooling | Air cooling | |||
| Weight | 2 Kg | |||
| Size | 85 * 160 * 260 (mm) | |||

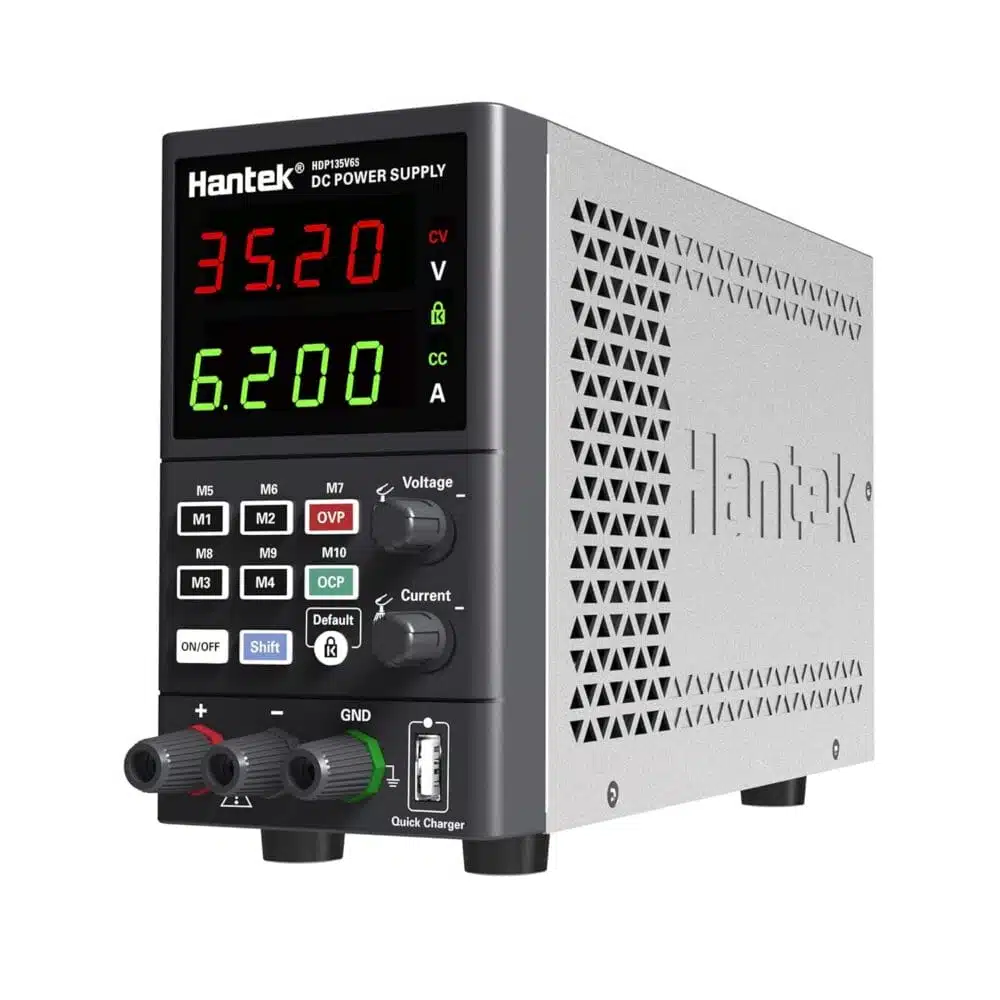

منبع تغذیه قابل برنامه ریزی هانتک مدل HANTEK HDP135V6S عصرتولز

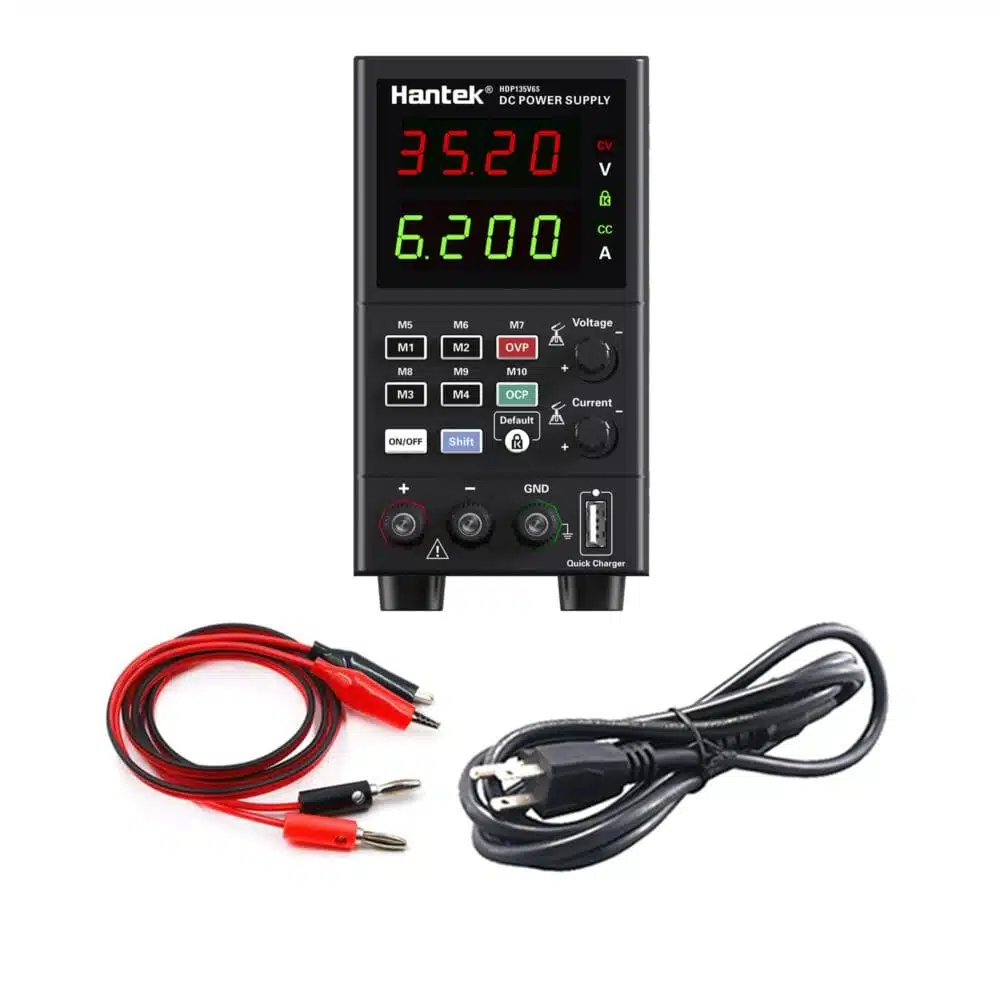

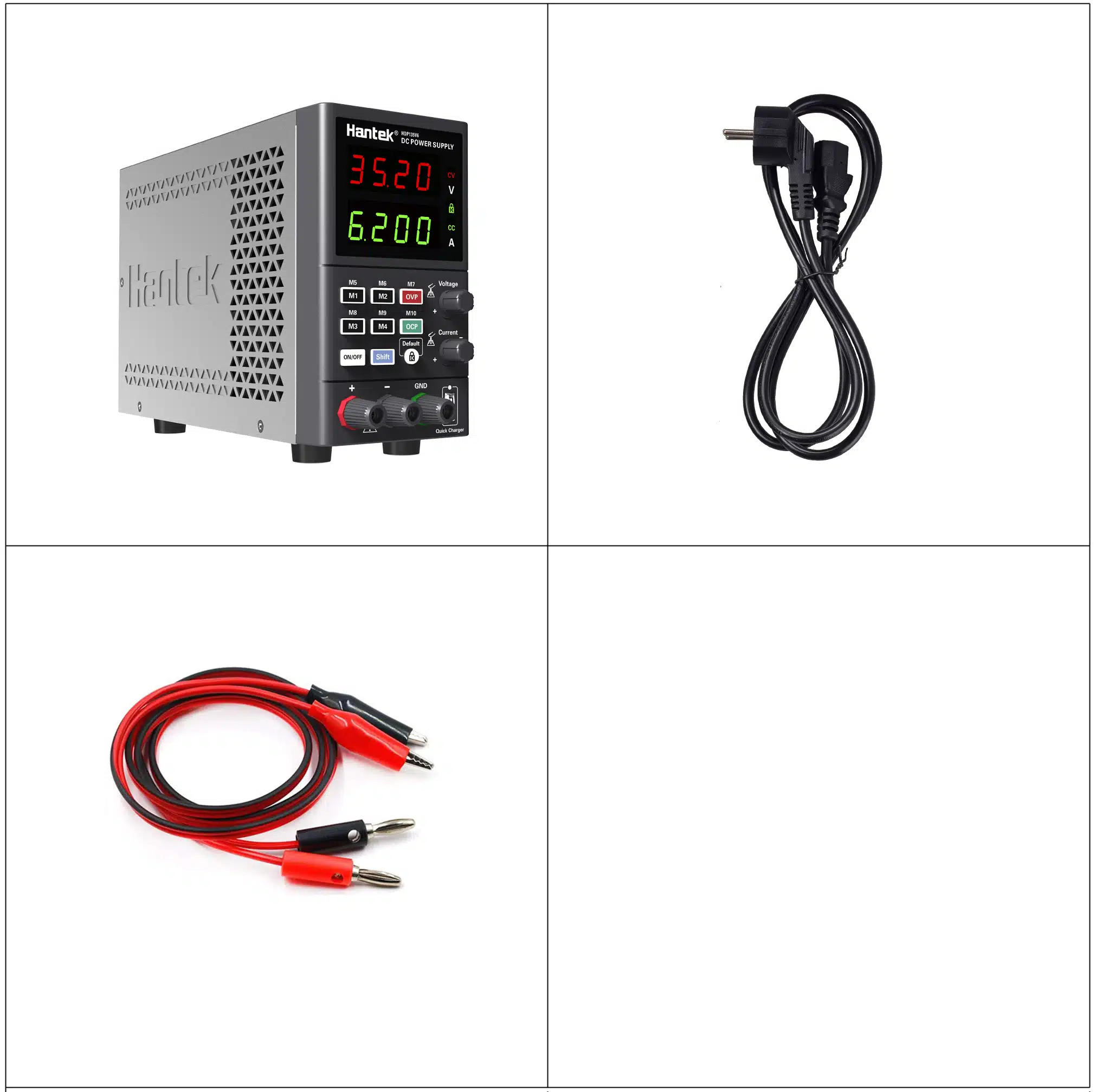

اقلام همراه منبع تغذیه قابل برنامه ریزی هانتک مدل HANTEK HDP135V6A
اقلام همراه منبع تغذیه قابل برنامه ریزی هانتک مدل HANTEK HDP135V6A عصرتولز
