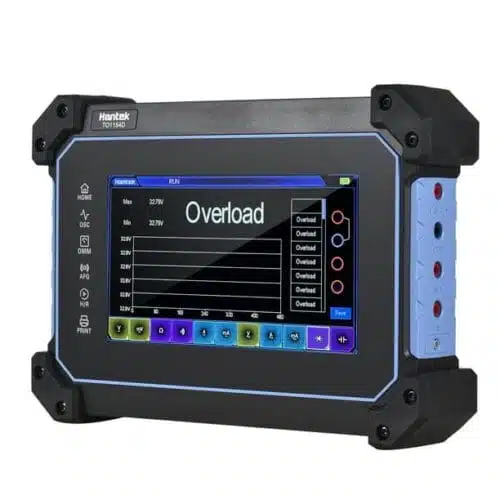

اسیلوسکوپ تبلتی هانتک مدل HANTEK TO-1154C در فروشگاه عصرتولز، دارای مشخصات فنی زیر است:
- پهنای باند 150 مگاهرتز
- چهار کانال دیجیتال
- دارای حافظه داخلی 8M
- سرعت نمونه برداری 1GS/s
- رزولوشن 8 بیتی
- صفحه نمایش 7 اینچ LCD رنگی لمسی
- همراه با پروب
- دارای مولتی متر 4.5 رقمی
- تابع FFT
- USB HOST
- USB DEVICE
- باتری لیتیومی 2600 میلی آمپر ساعتی
| Series | TO1000 Series (1G Sampling) | TO1112 Series (250M Sampling) | |||
| Level | |||||
| Horizontal Scale Range | 2ns/div~100s/div1、2、5 sequence | 2ns/div~100s/div1、2、5 sequence | |||
| Incremental Time Measurement Accuracy
(Full Bandwidth) |
Single, “Sampling” mode | Single, “Sampling” mode | |||
| ± (1 sampling interval +100ppm× reading +0.6ns) | ± (1 sampling interval +100ppm× reading +0.6ns) | ||||
| ＞16 times on average | ＞16 times on average | ||||
| ±(1 sampling interval +100ppm× reading +0.4ns) | ±(1 sampling interval +100ppm× reading +0.4ns) | ||||
| Sampling interval = seconds/grid ÷200 | Sampling interval = seconds/grid ÷200 | ||||
| Vertical | |||||
| A/D Converter | 8-bit resolution,each channel sampled simultaneously | 8-bit resolution,each channel sampled simultaneously | |||
| Vertical Cale Range | 2mV/div~10V/div at input BNC | 10mV/div~10V/div at input BNC | |||
| Vertical Resolution | 8bit | 8bit | |||
| Vertical Sensitivity Range | 2mV/div~10V/div | 10mV/div~10V/div | |||
| Offset Range | ±1V（2mV/div~100mV/div） | ±1Vmax(100mV/div) | |||
| ±10V（200mV/div~1V/div） | ±10Vmax (1V/div) | ||||
| ±50V（2V/div~10V/div） | ±50Vmax (10V/div) | ||||
| Dynamic Range | ±5div（8bit） | ±5div（8bit） | |||
| Optional Analog Bandwidth Limitation, Typical | 20MHz,Each channel is independently selectable | 20MHz，Each channel is independently selectable | |||
| DC Gain Accuracy | ±3% FullScale | ±3% FullScale | |||
| Isolation Between Channels | 40dB，DC to the maximum rated bandwidth of each model | 40dB，DC to the maximum rated bandwidth of each model | |||
| Note: Bandwidth reduced to 6MHz when using a 1X probe. | |||||
| Acquisition | |||||
| Sampling Rate Range | 1GSa/s | 250MSa/s | |||
| Acquisition Modes | Normal, Average, Peak, High resolution | Normal, Average, Peak, High resolution | |||
| Waveform Interpolation | （sinx）/x | （sinx）/x | |||
| Single Sequence | Acquisition Modes | Collection Stop Time | Collection Stop Time | ||
| Normal and Peak | All channels perform single collection at the same time. | Simultaneous single acquisition of all channels | |||
| Average | All channels perform collections for N times at the same time. N can be 2, 4, 8, 16, 32, 64, 128, or 256. | All channels conduct n acquisitions at the same time, and N can take the values of 2, 4, 8, 16, 32, 64, 128, 256 | |||
| Storage Depth | 8Mpts | 8Mpts | |||
| Trigger | |||||
| Mode | Automatic, Normal, Single | Automatic, Normal, Single | |||
| Level | CH1~CH4 ±4 divisions from center of screen | CH1/CH2 ±4 divisions from center of screen | |||
| Release Inhibition Range | 8ns~10s | 8ns~10s | |||
| Trigger Level Accuracy | CH1~CH4 / CH1~CH2 | CH1/CH2 | |||
| Trigger Sensitivity | ±0.87div(2mV/div)
±0.78div(5mV/div) ±0.69div(10mV/div) ±0.52div(20mV/div) ±0.47div(50mV/div) ±0.26div(100mV/div) ±0.26div(200mV/div) ±0.47div(500mV/div) ±0.26div(1V/div) ±0.26div(2V/div) ±0.26div(5V/div) ±0.26div(10V/div) |
±0.87div(2mV/div)
±0.78div(5mV/div) ±0.69div(10mV/div) ±0.52div(20mV/div) ±0.47div(50mV/div) ±0.26div(100mV/div) ±0.26div(200mV/div) ±0.47div(500mV/div) ±0.26div(1V/div) ±0.26div(2V/div) ±0.26div(5V/div) ±0.26div(10V/div) |
|||
| Edge-triggered | |||||
| Slope | Rising, Falling, Rising & Falling | Rising, Falling, Rising & Falling | |||
| Source | CH1~CH4 / CH1~CH2 | CH1/CH2 | |||
| Pulse Width Trigger | |||||
| Polarity | Positive polarity, negative polarity | Positive polarity, negative polarity | |||
| Condition | <、>、!=、= | <、>、!=、= | |||
| Source | CH1~CH4 / CH1~CH2 | CH1/CH2 | |||
| Pulse width range | 8ns~10s | 8ns~10s | |||
| Video Trigger | |||||
| Signal standard | NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i | NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i | |||
| Source | CH1~CH4 / CH1~CH2 | CH1~CH2 | |||
| Synchronization | Scan line, Line number, Odd field, Even field, All fields | Scan line, Line number, Odd field, Even field, All fields | |||
| Slope Trigger | |||||
| Slope | Rising, Falling | Rising, Falling | |||
| Condition | <、>、!=、= | <、>、!=、= | |||
| Source | CH1~CH4 / CH1~CH2 | CH1/CH2 | |||
| Time Range | 8ns~10s | 8ns~10s | |||
| Timeout Trigger | |||||
| Source | CH1~CH4 / CH1~CH2 | CH1/CH2 | |||
| Polarity | Positive polarity, negative polarity | Positive polarity, negative polarity | |||
| Time Range | 8ns~10s | 8ns~10s | |||
| Input | |||||
| Channel Count | 4 / 2 Analog channels | 2 Analog channels | |||
| Input Coupling | DC, AC or GND | DC, AC or GND | |||
| Input Impedance | 1MΩ±2% | 1MΩ±2% | |||
| Input Capacitance | 18pF±3pF | 18pF±3pF | |||
| Probe Attenuation | 1X、10X | 1X、10X | |||
| Support probe attenuation coefficient | 0.01X~10000X | 0.01X~10000X | |||
| Voltage Level | 300VCATII | 300VCATII | |||
| Maximum Input Voltage | 300VRMS（10X） | 300VRMS（10X） | |||
| Measurement | |||||
| Cursor | The voltage difference between the cursors △Y | ||||
| The time difference between the cursors △X | |||||
| Reciprocal of △X in Hertz (1/△X) | |||||
| Auto Measure | Frequency、Bimodal value、Average value、Maximum value、Minimum value、Period、Top value, Middle value、Bottom value、 Amplitude、 Root mean square、Rising edge overshoot、Rising edge precharge、Cycle root mean Square、Cycle average value、Rising time、Falling time、Positive pulse Width、Negative pulse width、Positive duty cycle、Negative duty cycle、FRR、FFF、Falling edge overshoot, Falling edge precharge, Pulse width、FRF、FFR、LRR、LRF、LFR、LFF、Maximum value time、Minimum value time、Positive phase difference、Negative phase difference、Variance、Number of positive pulses、Number of negative pulses、Number of rising edges、Number of falling edges、Trigger count | ||||
| Math Operations | |||||
| Data Source | CH1~CH4 / CH1~CH2 | CH1/CH2 | |||
| Operator | ＋、－、×、/、FFT | ||||
| FFT | Point | 1024 | |||
| Window | Rectangle, Hanning, Hemming, Blackman, Bartlett, Flat top | ||||
| Display | Display single or display all | ||||
| Vertical scale | dB、VRms | ||||
| Storage | |||||
| Save / Transfer out | Save and call out, Including Images, References, CSV, Binary, Settings | ||||
| Save to External Storage | Images, References, CSV, Binary, Settings | ||||
| Arbitrary Waveform Generator | |||||
| Channel Number | 1 | ||||
| Sampling Rate | 200MSa/s | ||||
| Vertical Resolution | 12bit | ||||
| The Highest Frequency | 25MHz | ||||
| Standard Waveform | Sine wave, Square wave, Triangle wave, Noise, DC | ||||
| Sine Wave | Frequency range | 0.1Hz~25MHz | |||
| Square wave/Pulse | Frequency range | 0.1Hz~10MHz | |||
| Duty ratio | 0~100% | ||||
| Triangle Wave | Frequency range | 0.1Hz~1MHz | |||
| Symmetry | 0%~100% | ||||
| Noise | Bandwidth | ＞25MHz | |||
| DC | Offset | ±1.5V（50Ω）、±3.0V（high resistance） | |||
| Resolution | 100μV | ||||
| Precision | 2%（1KHz） | ||||
| Arbitrary Wave | Frequency range | 0.1Hz~10MHz | |||
| Support upper computer download, and external memory calling out | |||||
| Amplitude | 50Ω+2% | ||||
| Amplitude | 0mV~3Vpp（50Ω） | ||||
| 0mV~6Vpp（high resistance） | |||||
| Frequency Resolution | 0.1 Hz or 4 bits, take the greater one of the two | ||||
| Wavelength | 4KSa | ||||
| Frequency Accuracy | 100 ppm (< 10 kHz) 50 ppm (> 10 kHz) | ||||
| Modulation | FM | Modulation waveform | Sine wave, Square wave, Triangle wave | ||
| Modulation frequency | 1Hz~50KHz | ||||
| Modulation deviation | 0.1Hz~1KHz | ||||
| AM | Modulation waveform | Sine wave, Square wave, Triangle wave | |||
| Modulation frequency | 1Hz~50KHz | ||||
| Modulation depth | 0%-120% | ||||
| Burst | Type | Multi-period, Infinite | |||
| Cycle Number | 1~2000000000 | ||||
| Trigger source | Manual | ||||
| Multimeter | |||||
| Maximum resolution | 4000 points | ||||
| Measuring method | Voltage, Current, resistance, capacitance, diode, on-off measurement | ||||
| Maximum Input Voltage | AC:600V,DC:600V | ||||
| Maximum Input Current | AC:10A,DC:10A | ||||
| Input Impedance | 10MΩ | ||||
| Measurement Item | Range | Precision | Resolution | ||
| DC Voltage | 400mV | ±（1%+2） | 100μV | ||
| 4.000V | 1mV | ||||
| 40.00V | 10mV | ||||
| 400.0V | 100mV | ||||
| 600.0V | 1V | ||||
| Overload protection: 400mV: 250V, other: 600Vrms. | |||||
| AC Voltage | 4.000V | ±（1.2%+5） | 1mV | ||
| 40.00V | 10mV | ||||
| 400.0V | 100mV | ||||
| 600.0V | ±（1.5%+5） | 1V | |||
| Frequency：40Hz~400Hz | |||||
| Frequency of 400V and 600V：40Hz~100Hz | |||||
| DC Current | 40.00mA | ±（1%+2） | 10μA | ||
| 200.0mA | ±（1.5%+2） | 100μA | |||
| 4.000A | ±（1.8%+2） | 1mA | |||
| 10.00A | ±（3%+2） | 10mA | |||
| Overload protection: self restoring fuse: 200mA/250V, 4A and 10A range no fuse | |||||
| AC Current | 40.00mA | ±（1.3%+2） | 10μA | ||
| 400.0mA | ±（1.8%+2） | 100μA | |||
| 4.000A | ±（2%+3） | 1mA | |||
| 10.00A | ±（3%+5） | 10mA | |||
| Frequency: 40Hz~400Hz; | |||||
| Self restoring fuse: 200mA/250V, 4A and 10A range no fuse. | |||||
| Resistance | 400.0Ω | ±（1%+3） | 0.1Ω | ||
| 4.000KΩ | ±（1.2%+5） | 1Ω | |||
| 60.00KΩ | 10Ω | ||||
| 400.0KΩ | 100Ω | ||||
| 4.000MΩ | 1KΩ | ||||
| 40.00MΩ | ±（1.5%±3） | 10KΩ | |||
| Overload protection: 220Vrms | |||||
| Capacitance | 40.00nF | ±（3%+5） | 10pF | ||
| 400.0nF | 100pF | ||||
| 4.000μF | 1nF | ||||
| 40.00μF | 10nF | ||||
| 100.0μF | 100nF | ||||
| Overload protection: 220Vrms | |||||
| Diode | 0V~1.0V | ||||
| On off Measurement | <50Ω | ||||
| General Specifications | |||||
| Panel Type | 7 “TFT LCD | ||||
| Display Resolution | 800 (horizontal) *480 (vertical) pixels | ||||
| Display Type | Point, Vector | ||||
| Waveform Brightness | Adjustable | ||||
| Grid Types | Solid line, Dotted line, None | ||||
| Grid Brightness | Adjustable | ||||
| Screen Brightness | Adjustable | ||||
| Afterglow | 1s、5s、10s、30s、Infinite, Off | ||||
| Standard Interface | USB Host、USB Device | ||||
| Power Supply | AC 100 ~ 240V, 50 ~ 60Hz; DC input 5V3A/9V2A/12v1.5A | ||||
| Power Consumption | <8W | ||||
| Fast Charge | Support fast charging | ||||
| Battery | 3.7V 2600mAh*4 in parallel | 3.7V 2600mAh*2 in parallel | |||
| Environmental | |||||
| Temperature | 0℃-50℃ | ||||
| Storage Temperature | -20℃-60℃ | ||||
| Humidity | ≤+104℉（≤+40°C）: ≤90% relative humidity | ||||
| 106℉~122℉（+41°C~50°C）:≤60% relative humidity | |||||
| Cooling | Convection | ||||
| Altitude | Operating and Nonoperating | 3,000m（10,000 feet） | |||
| Random vibration | 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis | ||||
| Nonoperating | 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis | ||||
| Mechanical | |||||
| Dimension | 248mm*176mm*54mm (L x W x H) | ||||
| Weight | 1.2KG (including batteries) | ||||
