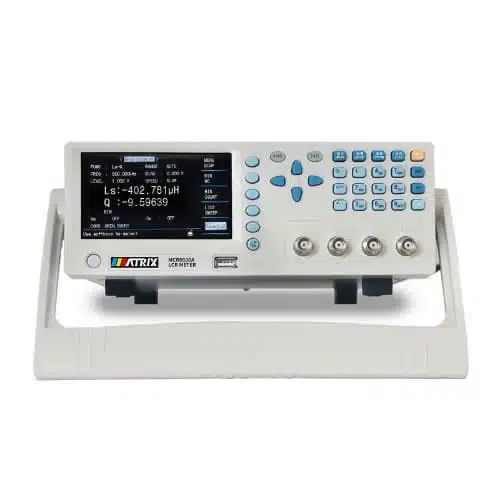

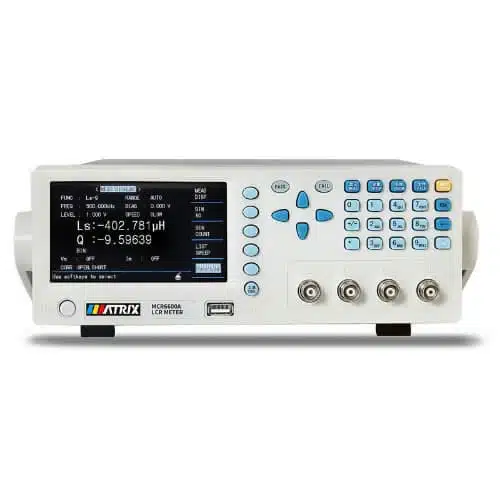

LCR متر دیجیتال ماتریکس مدل MATRIX MCR-6200A
| model | MCR-6100A | MCR-6200A | MCR-6600A | |
| Test parameters | lZl, lYl, C, L, X, B, R, G, D, Q, θ, DCR | |||
| Test frequency | 12Hz-100kHz | 12Hz-200kHz | 12Hz-600kHz | |
| Basic measurement accuracy | 0.05% | |||
| Equivalent Circuit | Series Parallel | |||
| Mathematical functions | Absolute deviation | |||
| Range method | Automatic, hold, manual selection | |||
| Trigger method | Internal, manual, external, bus | |||
| Measuring speed (≥1kHz) | Fast: fastest 75 times / second, medium speed: 12 times / second. Slow speed: 3 times / second | |||
| Average times | 1-255 | |||
| Delay time | 0-60S, step by 1ms | |||
| Calibration function | Open circuit / short circuit / load | |||
| Display method | Direct reading, Δ, Δ%, V / I (measured voltage / current monitoring) | |||
| monitor | 5-digit display of main and auxiliary parameters, 4.3-inch true color LCD display | |||
| Test signal | ||||
| Output impedance | 30Ω, 100Ω optional | |||
| Test signal level | Normal: 5mV-2V Accuracy: 10%, 1mV step constant level: 10mV-1V Accuracy: 5%, 1mV step For specific product information , please refer to the instruction |
|||
| DC bias source | internal | 0V 1.5V 2V accuracy 1% | ||
| Matching | IV 1A: 0-1A DC bias source option | |||
| Display range | ||||
| lZl, R, X | 0.01mΩ-99.9999MΩ | |||
| DCR | 0.001mΩ-99.9999MΩ | |||
| lYl, G, B | 0.00001μS-99.9999S | |||
| C | 0.00001pF-9.9999F | |||
| L | 0.00001μH-99.9999kH | |||
| D | 0.00001-9.9999 | |||
| Q | 0.00001-9999.9 | |||
| θ (Deg) | -179.999 ° -179.999 ° | |||
| θ (Rad) | -3.14159-3.14159 | |||
| Comparator function | 10 files: (9 files are qualified, 1 file is unqualified), and another AUX file | |||
| Multiparameter | 4 parameters can be selected and measured and displayed at the same time | |||
| Curve scan function | Under various test conditions, perform graphic scanning analysis on the tested parts | |||
| Memory | More than 100 sets of internal instrument settings for storage / recall, U disk expands more than 500 sets | |||

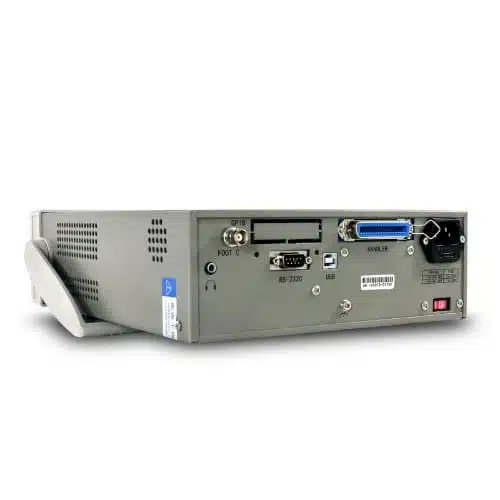

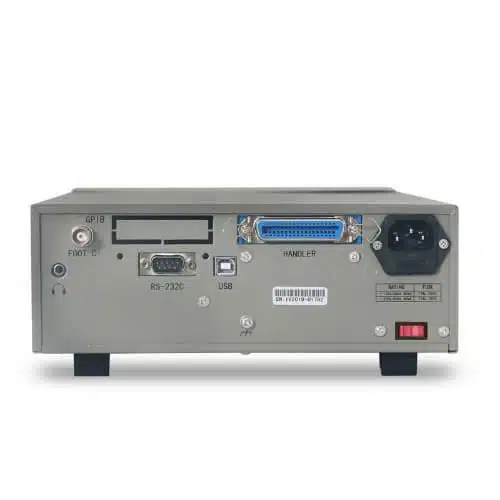

| interface | Standard RS-232C, HANDLER, USB HOST, USB DEVICE, headphone jack, foot pedal jack; optional GPIB, LAN | |||
| Bare metal size (W * H * D) mm | 240 * 100 * 340 | |||
| Packing size (W * H * D) mm | 335 * 210 * 420 | |||
| Net weight kg | 4.5 | |||
| Gross weight kg | 5.8 | |||
