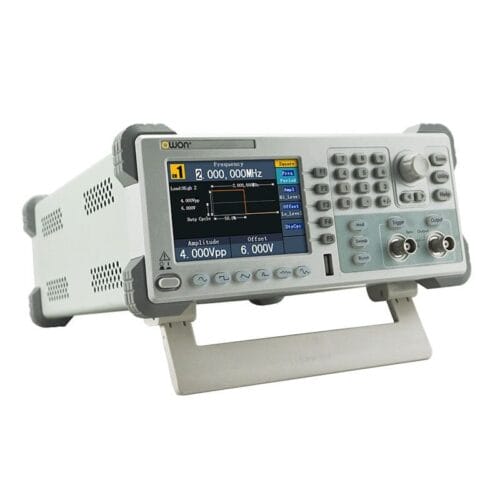

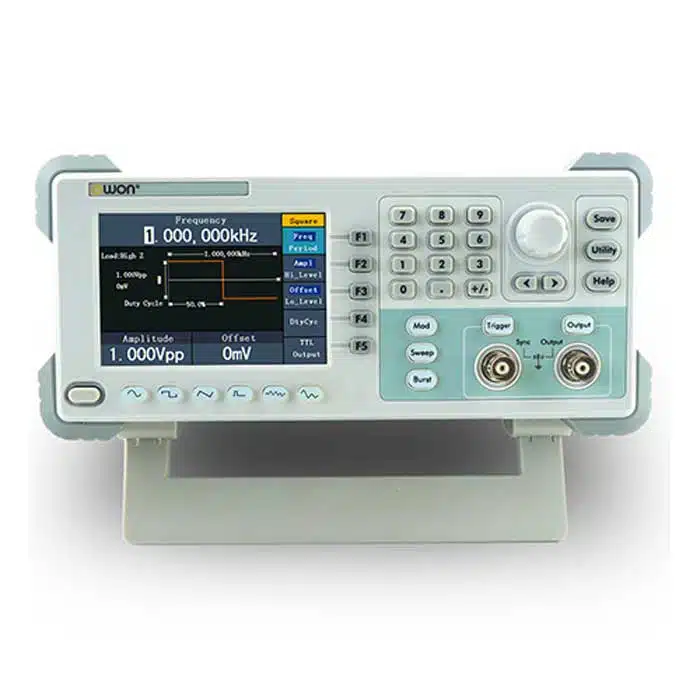

فانکشن ژنراتور اوون مدل OWON AG-051
| Channel | Single + Trigger |
| Frequency Output | 5 MHz |
| Sample Rate | 125 MS/s |
| Vertical Resolution | 14 bits |
| Waveform | |
|---|---|
| Standard Waveform | Sine, Square, Pulse, Ramp, and Noise |
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform |
| Frequency (resolution 1 μHz) | |
| Sine | 1 μHz – 5 MHz |
| Square | 1 μHz – 5 MHz |
| Pulse | 1 μHz – 5 MHz |
| Ramp | 1 μHz – 1 MHz |
| Noise | 5 MHz (-3 dB) (typical) |
| Arb | 1 μHz – 5 MHz |
| Amplitude | |
| Amplitude | 1 m Vpp – 12.5 Vpp (50 Ω) 1 m Vpp – 25 Vpp (high impedance) |
| Resolution | 1 m Vpp, or 4 digits |
| DC Offset Range (AD+DC) | ±6.25 V (50 Ω), ±12.5 V (high impedance) |
| DC Offset Range Resolution | 1 mV, or 4 digits |
| Load Impedance | 50 Ω (typical) |
| Arbitrary Waveform | |
| Wave Length | 2 pts to 8K pts |
| Sample Rate | 125 MS/s |
| Vertical Resolution | 14 bits |
| Non-volatile Memory | 64 M bytes |
| Input / Output | |
| Display | 4″ (480 x 320 pixels) LCD |
| Type | External reference clock input |
| Communication Interface | USB device |
| Mechanical | |
| Dimension (W x H x D) | 235 x 110 x 295 mm |
| Device Weight | 3 kg |
