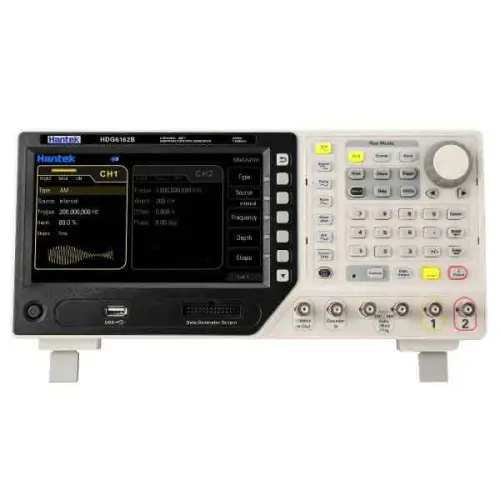

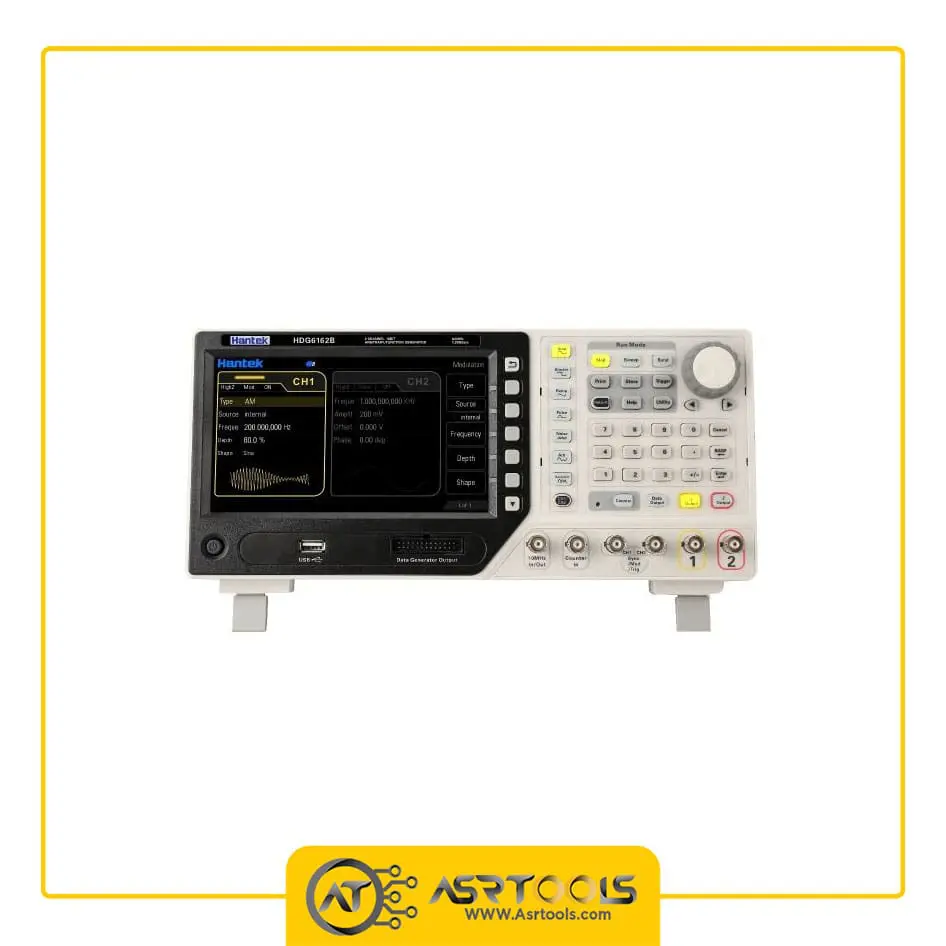

| Model |
HDG6202B |
HDG6162B |
HDG6112B |
HDG6082B |
| Main Feature |
| Channel |
2 |
2 |
2 |
2 |
| Waveform Length |
64M |
| Frequency Range |
200MHz |
160MHz |
110MHz |
80MHz |
| Sampling Rate |
1.25GSa/s |
| Voltage Resolution |
16 Bit |
| Digit Output Mode |
16 channels output |
| Waveform |
| Standard Waveform |
sine, square, triangle, pulse, noise, harmonic |
| Arb. Waveform |
More than 150 kinds: index rise, exponential decline, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc. |
| Frequency Characteristics |
| Sine |
1uHz~200MHz |
1uHz~160MHz |
1uHz~110MHz |
1uHz~80MHz |
| Square |
1uHz~60MHz |
1uHz~50MHz |
1uHz~40MHz |
1uHz~35MHz |
| Pulse |
1uHz~50MHz |
1uHz~40MHz |
1uHz~25MHz |
1uHz~20MHz |
| Triangle |
1uHz~5MHz |
1uHz~4MHz |
1uHz~3MHz |
1uHz~2MHz |
| White Noise |
120MHz |
120MHz |
110MHz |
80MHz |
| Harmonic |
1uHz~100MHz |
1uHz~80MHz |
1uHz~55MHz |
1uHz~40MHz |
| Arbitrary |
1uHz~50MHz |
1uHz~40MHz |
1uHz~25MHz |
1uHz~15MHz |
| Resolution |
1uHz |
| Accuracy |
±2ppm, 18~28℃ |
| Sine Spectrum Purity |
| Harmonic Distortion |
Typical (0dBm) |
| DC-1MHz: <-60dBc |
| 1MHz-10MHz: <-55dBc |
| 10MHz-100MHz: <-50dBc |
| 100MHz-160MHz: <-40dBc |
| THD (Total Harmonic Distortion) |
<0.1% (10Hz-20kHz, 0dBm) |
| Spurious Signal (Non-harmonic) |
Typical (0dBm) |
| ≤10MHz: <-65dBc |
| >10MHz: <-65dBc+6dB/octave |
| Phase Noise |
Typical (0dBm,10KHz offset) |
| 0MHz: ≤-115dBc/Hz |
| Square Characteristics |
| Rising/Falling Time |
Typical (1Vpp) |
Typical (1Vpp) |
Typical (1Vpp) |
| <8ns |
<10ns |
<12ns |
| Overshoot |
Typical (100KHz, 1Vpp) |
| <3% |
| Duty Cycle |
≤10MHz: 20.0%~80.0% |
| 10MHz~40MHz: 40.0%~60.0% |
| >40MHz: 50.0% (fixed) |
| Asymmetry |
1% +5ns of Period |
| Jitter |
Typical (1MHz,1Vpp, 50Ω) |
| ≤ 5MHz: 2ppm+500ps |
| > 5MHz: 500ps |
| Triangle Characteristics |
| Linear |
≤1% (1KHz, 1Vpp) of Peak Output |
| Symmetry |
0%~100% |
| Pulse Characteristics |
| Period |
25ns~1Ms |
25ns~1Ms |
40ns~1Ms |
50ns~1Ms |
| Pulse |
≥10ns |
≥10ns |
≥12ns |
≥15ns |
| Rising/Falling Time |
≥5ns |
≥6ns |
≥8ns |
≥10ns |
| Overshoot |
<3% (1Vpp) |
| Jitter |
Typical (1MHz, 1Vpp, 50Ω) |
| ≤ 5MHz 2ppm+500ps |
| > 5MHz 500ps |
| Arbitrary Characteristics |
| Waveform Length |
64M |
| Vertical Resolution |
16 Bit |
| Sampling Rate |
1.25GSa/s |
| Rising/Falling Time |
Typical (1Vpp): <6ns |
| Jitter |
Typical (1MHz, 1Vpp, 50Ω) |
| ≤ 5MHz 2ppm+500ps |
| > 5MHz 500ps |
| Harmonic Output Characteristics |
| Harmonic Times |
≤16 times |
| Harmonic Type |
Even harmonics, odd harmonics, sequential harmonics |
| Harmonic Amplitude |
Each harmonic amplitude can be set |
| Harmonic Phase |
Each harmonic phase can be set |
| Amplitude Characteristics ( 50ΩTermination) |
| Range |
≤20MHz: 1mVpp ~ 10Vpp |
| ≤80MHz: 1mVpp ~ 5Vpp |
| ≤110MHz:1mVpp ~ 2.5Vpp |
| ≤160MHz:1mVpp ~ 1Vpp |
| ≤200MHz:1mVpp ~ 0.5Vpp |
| Accuracy |
1KHz Sine, 0V offset (±|1%±2mVpp| of setting value) |
| Amplitude flatness (relative to 1 kHz sine wave, 500 mVpp, 50 Ω) |
≤1MHz: ±0.1dB |
≤1MHz: ±0.1dB |
≤1MHz: ±0.1dB |
≤1MHz: ±0.1dB |
| ≤60MHz: ±0.2dB |
≤60MHz: ±0.2dB |
≤60MHz: ±0.2dB |
≤60MHz: ±0.2dB |
| ≤100MHz: ±0.4dB |
≤100MHz: ±0.4dB |
≤100MHz: ±0.4dB |
|
| ≤160MHz: ±0.8dB |
≤160MHz: ±0.8dB |
|
|
| ≤200MHz: ±1.2dB |
|
|
|
| Unit |
Vpp, mVpp, Vrms |
| Resolution |
1mV |
| Impedance |
50Ω |
| Offset Characteristics (50Ω termination) |
| Range |
|Voltset| < Vmax – Vpp/2 |
| Accuracy |
± (1% of setting + 5mV + 0.5% of amplitude) |
| ± ( |1% + 5mV| of setting value + 0.5% of amplitude) |
| Modulation Characteristics |
| Modulation Type |
AM, FM, PM, 2ASK, 2FSK, 2PSK, BPSK, PWM |
| AM |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal, external, other channels |
| Modulation Wave |
Sine, Square, Triangle, White Noise, Arbitrary |
| Modulation Frequency |
2mHz~50KHz |
| Modulation Depth |
0%~120% |
| FM |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal, external, other channels |
| Modulation Wave |
Sine, Square, Triangle, White Noise, Arbitrary |
| Modulation Frequency |
2mHz~50KHz |
| PM |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal, external, other channels |
| Modulation Wave |
Sine, Square, Triangle, White Noise, Arbitrary |
| Modulation Frequency |
2mHz~50KHz |
| Phase Deviation |
0° to 360° |
| 2ASK |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal, external |
| Modulation Wave |
50% duty cycle square wave |
| Modulation Frequency |
2mHz~1MHz |
| 2FSK |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal, external |
| Modulation Wave |
50% duty cycle square wave |
| Modulation Frequency |
2mHz~1MHz |
| 2PSK |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal, external |
| Modulation Wave |
50% duty cycle square wave |
| Modulation Frequency |
2mHz~1MHz |
| BPSK |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Modulation Source |
Internal |
| Modulation Wave |
01 yard |
| Modulation Frequency |
2mHz~1MHz |
| PWM |
| Carrier Wave |
Square |
| Modulation Source |
Internal, external, other channels |
| Modulation Wave |
Sine, square, sawtooth, noise, arbitrary |
| Modulation Frequency |
2mHz~50KHz |
| Width Deviation |
0% to 100% of Pulse Width |
| 0% to 100% of the pulse width |
| External Modulation Input |
| Max. Input Range |
75mVRMS to ±2.5Vac+dc |
| Input Bandwidth |
10MHz |
| Input Impedance |
1KΩ |
| Sweep Characteristics |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Type |
Linear |
| Direction |
Top |
| Sweep |
1ms to 50Ks |
| Hold/return Time |
1ms to 50Ks |
| Trigger Source |
Internal, external, manual |
| Mark |
Falling edge of the sync signal (programmable) |
| Burst Characteristics |
| Carrier Wave |
Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) |
| Carrier Frequency |
2mHz to 100MHz |
2mHz to 100MHz |
2mHz to 80MHz |
| Pulse Count |
1 to 2000 000 000 |
| Start/Stop Phase |
0° to 360° |
| Internal Cycle |
2μs to 500s |
| Gating Source |
External Trigger |
| Trigger Source |
Internal, external, manual |
| Cymometer |
| Measurement Function |
Frequency, period, positive/negative pulse width, duty cycle |
| Frequency Resolution |
7 bits/s |
| Frequency Range |
1uHz~200MHz |
| Input Level |
TTL level |
| Gate Time |
10ms~16s |
| Voltage Range and Sensitivity (Non-modulated Signal) |
| DC Coupling |
DC Offset Range |
±1.5VDC |
| 1μHz to 100MHz |
50mVRMS to ±2.5Vac+dc |
| 100MHz to 200MHz |
100mVRMS to ±2.5Vac+dc |
| Pulse Width and Duty Cycle Measurement |
| Frequency and Amplitude Range |
1μHz to 25MHz |
50mVRMS to ±2.5Vac+dc |
| Pulse Width |
Min. Pulse Width |
≥100ns |
| Pulse Width Resolution |
8ns |
| Duty Cycle |
Measuring range (display) |
0% to 100% |
| Input Characteristic |
| Input Signal Range |
Destruction Voltage |
±5Vac+dc |
Input Impedance =500Ω |
| Input Trigger |
Trigger Level Range |
-2.5V to +2.5V |
| Trigger Sensitivity Range |
0% (140mV hysteresis voltage) to 100% (2mV hysteresis voltage) |
| Trigger characteristics |
| Trigger Input |
| Level |
TTL-compatible |
| Slope |
Rise or fall (optional) |
| Pulse Width |
>50ns |
| Reference Clock |
| External Reference Input |
| Lock Range |
10MHz±50Hz |
| Level |
2.5Vpp to 5Vpp |
| Lock Time |
<2s |
| Input Impedance |
5kΩ, AC Coupling |
| Internal Reference Input |
| Frequency |
10MHz ± 50Hz |
| Level |
3.3Vpp |
| Output Impedance |
5kΩ, AC Coupling |
| Synchronous Output |
| Level |
TTL-compatible |
| Impedance |
50Ω, nominal value |
| General Characteristics |
| Interface |
HDG6000B: USB Host, USB Device, Optional RS232 port |
| HDG6000C: USB Host, USB Device, LAN port, Wi-Fi, Touch Screen, Optional RS232 port |
| Display |
7 inch, 64K color, TFT LCD Screen, 800*640 |
| Voltage |
100-240V, 45Hz – 440Hz |
| Power |
<50W |
| Fuse |
|
| Environment |
| Temperature Range |
Operation: 10 ° C to 40 ° C Non-operation: -20 ° C to 60 ° C |
| Cooling Method |
Fan forced cooling |
| Humidity Range |
Less than 35 ° C: ≤ 90% relative humidity 35 ° C to 40 ° C: ≤ 60% relative humidity |
| Altitude |
Operation: 3000 meters or less; Non-operation: 15000 meters or less |
| Mechanical Specifications |
| Dimension |
318 x 110 x 150mm (L x W x H) |
| Weight |
3KG |
