Specifications |
|
Range |

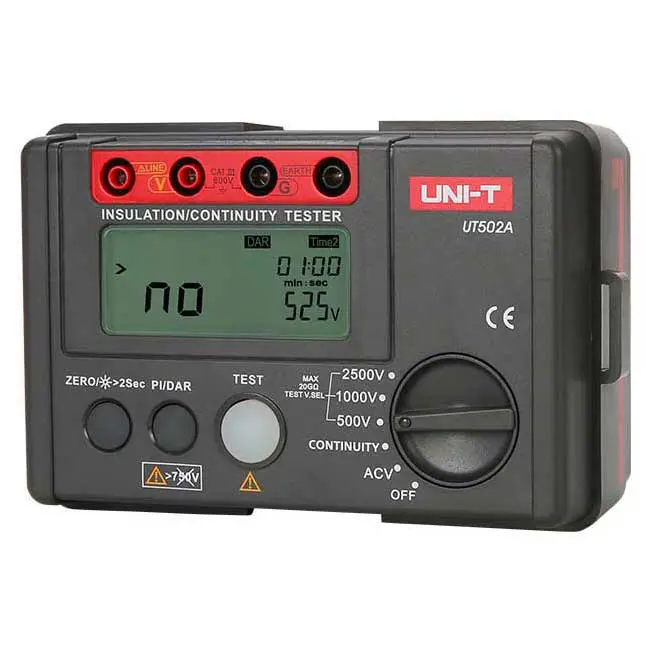

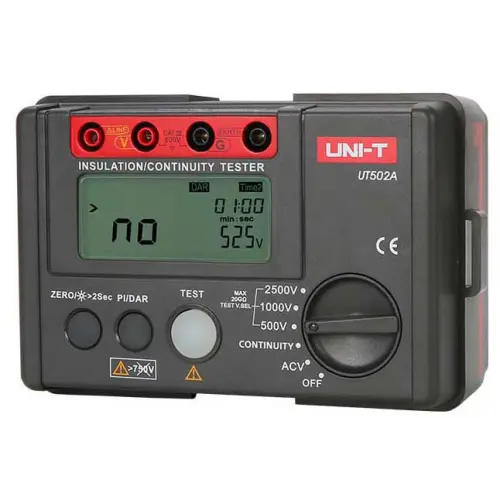

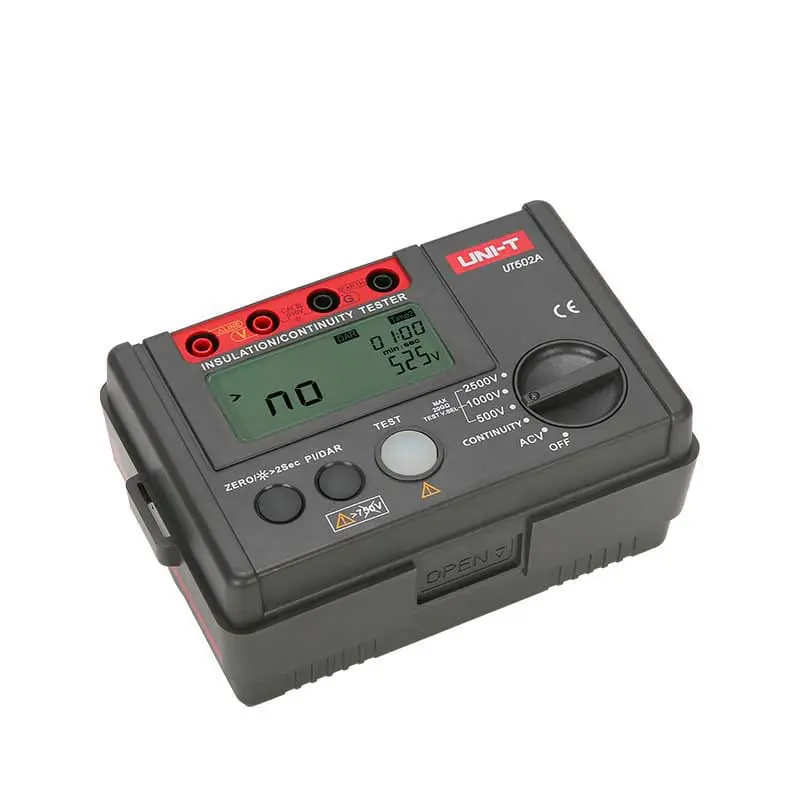

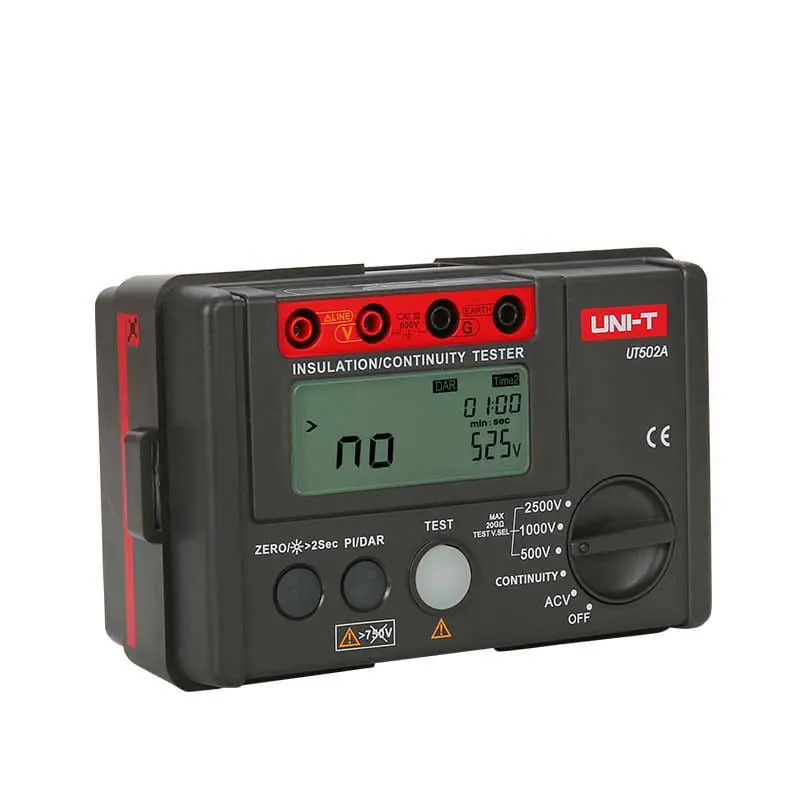

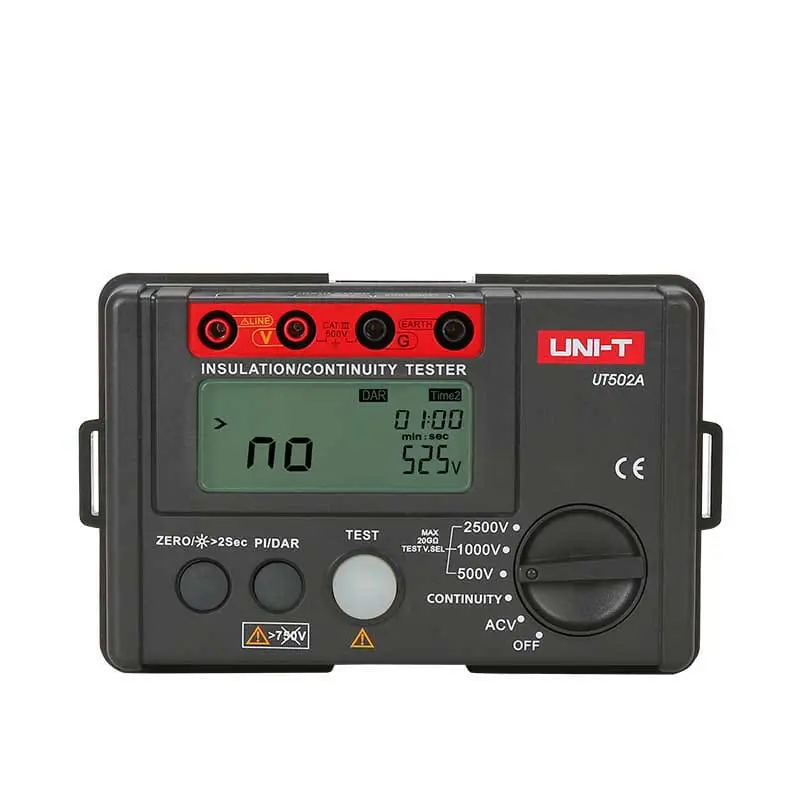

UT502A |
Insulation resistance (Ω) |
Test voltages |
500V/1000V/2500V |
0%~10% |
500V |
0MΩ~99.9MΩ |
±(3%+5) |
100MΩ~5GΩ |
±(5%+5) |
1000V |
0MΩ~99.9MΩ |
±(3%+5) |
100MΩ~5GΩ |
±(5%+5) |
2500V |
0MΩ~99.9MΩ |
±(3%+5) |
100MΩ~9.9GΩ |
±(5%+5) |
10GΩ~20GΩ |
±(10%+5) |
Load current |
50V (R=50kΩ) 1mA |
0%~10% |
100V (R=100kΩ) 1mA |
0%~10% |
250V (R=250kΩ) 1mA |
0%~10% |
500V (R=500kΩ) 1mA |
0%~10% |
1000V (R=1MΩ) 1mA |
0%~10% |
2500V (R=1MΩ) 1mA |
0%~10% |
Short-circuit current |
|
<2mA |
Low resistance (Ω) |
0.01Ω~200Ω (about 5.0V/>200mA) |
±(2%+3) |
AC voltage (V) |
30V~600V |
±(2%+3) |
Features |
Display count |
|
2000 |
DAR |
60s/15s and 60s/30s |
√ |
PI |
|
√ |
Auto range/Low battery indication |
|
√ |
LCD backlight/Light alarm |
|
√ |
Buzzer alarm/High voltage indication |
|
√ |
Over load indication/Auto discharge |
|
√ |
Test voltage secondary display |
|
√ |
10MΩ internal resistance test |
|
√ |
Meets IEC 61557 |
61557-1:2007; 61557-2:2007; 61557-4:2007 |
General Characterisitics |
Power |
1.5V battery (LR6) x 6 |
Display |
70.6mm x 34mm |
Product color |
Red and grey |
Product net weight |
500g |
Product size |
150mm x 100mm x 71mm |
Standard accessories |
Batteries, test leads, alligator clips, gallus, test probes |
Standard individual packing |
Gift box, carrying bag, English manual |
Standard quantity per carton |
20pcs |
Standard carton measurement |
500mm x 380mm x 330mm (0.063 CBM per standard carton) |
Standard carton gross weight |
18.9kg |
