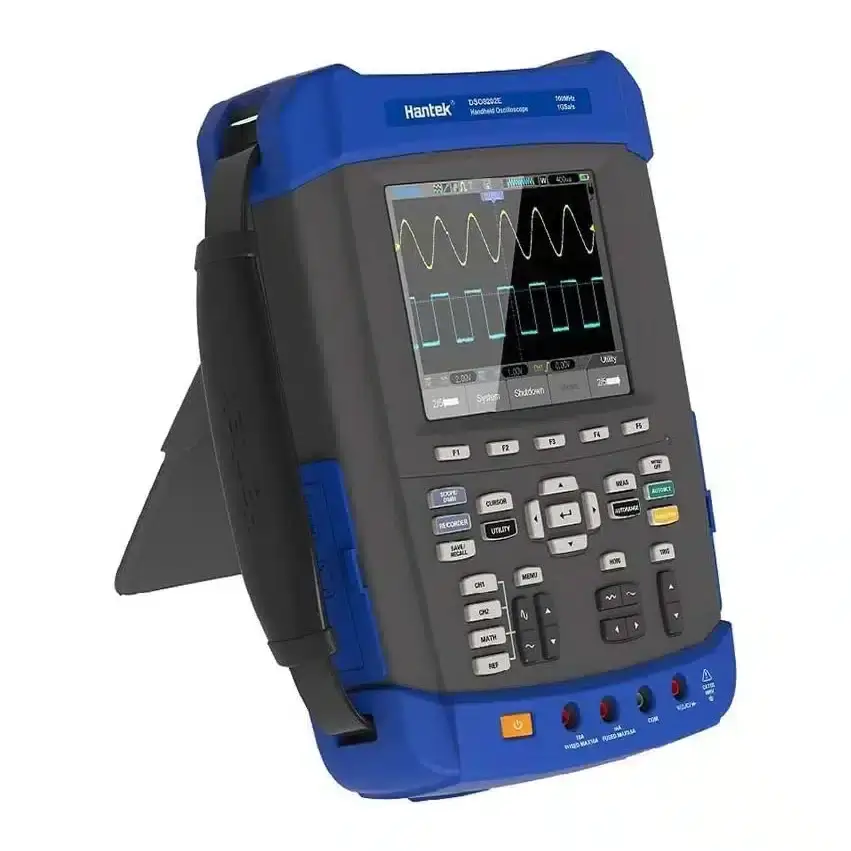

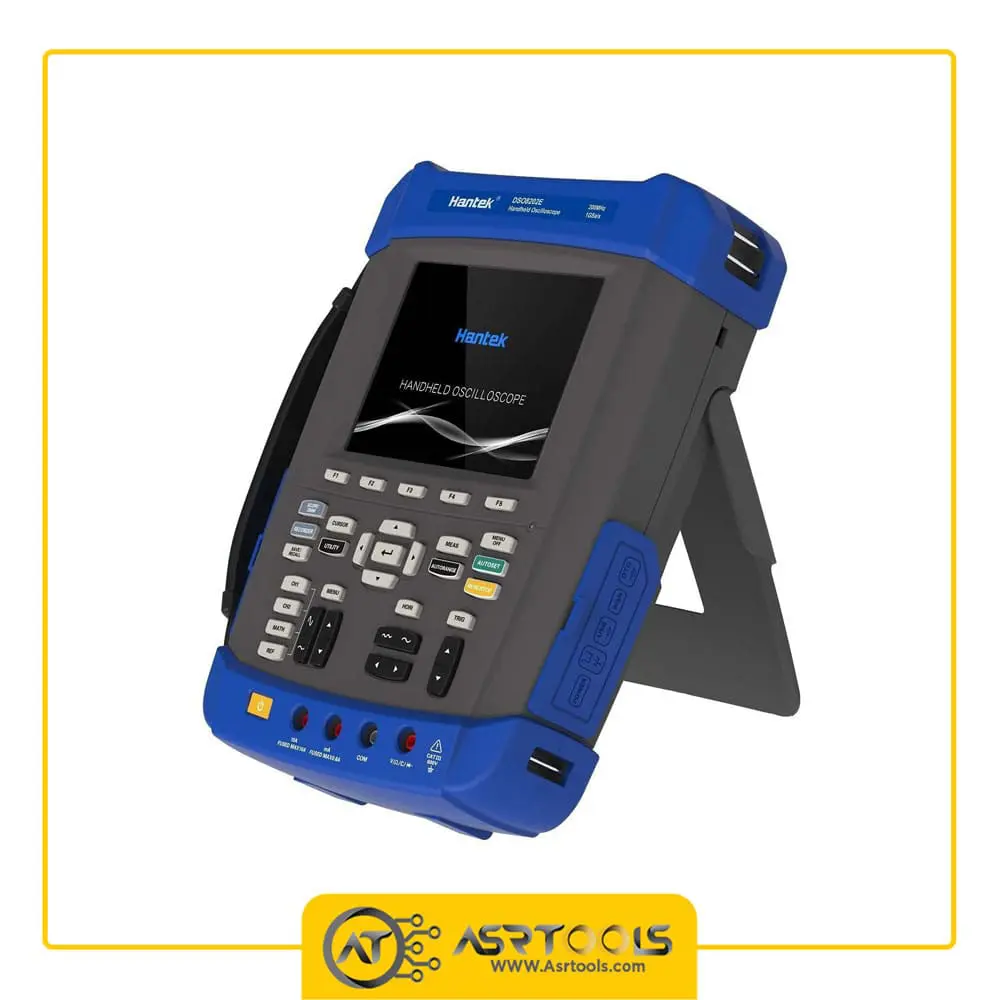

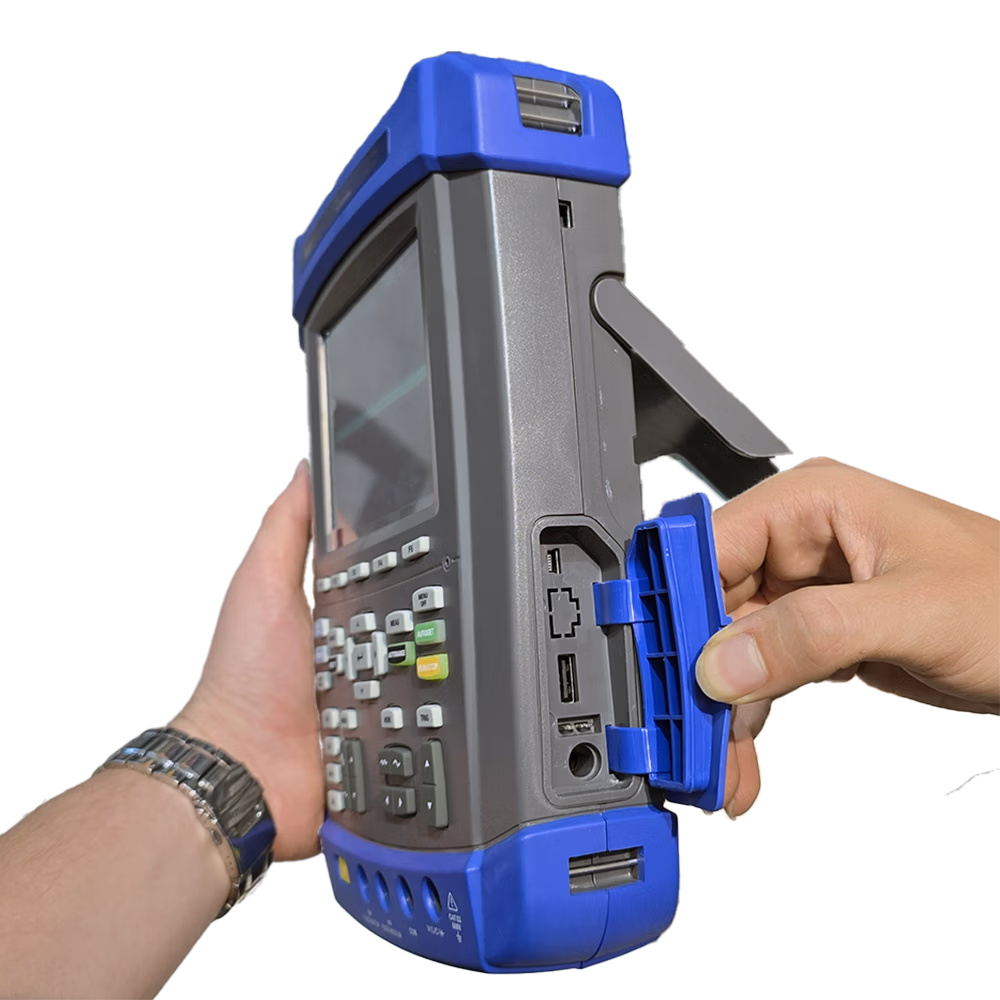

| Model |
DSO-8072E |
DSO-8102E |
DSO-8152E |
DSO-8202E |
| Bandwidth |
70MHz |
100MHz |
150MHz |
200MHz |
| Acquisition |
| Sample Modes |
Real-Time Sample |
| Acquisition Modes |
|
| Normal |
Normal data only |
| Peak Detect |
High-frequency and random glitch capture |
| Average |
Waveform Average, selectable 4,8,16,32,64,128 |
| Inputs |
| Inputs Coupling |
AC, DC, GND |
| Inputs Impendance |
1MΩ±2% ‖20pF±3pF |
| Probe Attenuation |
1X, 10X |
| Supported Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
| Maximum Input Voltage |
CAT I and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×) |
| Horizontal System |
| Sample Rate Range |
1GS/s |
| Waveform Interpolation |
(sin x)/x |
| Record Length |
2M |
| SEC/DIV Range |
4ns/div~2000s/div, in a 2, 4, 8 sequence |
2ns/div~2000s/div, in a 2, 4, 8 sequence |
Sample Rate and
Delay Time Accuracy |
±50ppm over any ≥1ms time interval |
| Scanning Speed Range |
4ns/div to 8ns/div; (-8div x s/div) to 40ms;
20ns/div to 80μs/div;(-8div×s/div) to 40ms;
200μs/div to 40s/div;(-8div×s/div) to 400s; |
2ns/div to10ns/div;(-4div×s/div) to 20ms; |
Delta Time Measurement Accuracy
(Full Bandwidth) |
Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200 |
| Vertical System |
| Vertical Resolution |
8-bit resolution, all channel sampled simultaneously |
| Volts Range |
2mV/div to 100V/div at input BNC |
| Rise Time at BNC( typical) |
5ns |
3.5ns |
2.3ns |
1.8ns |
Analog Bandwidth in
Normal and Average
modes at BNC or with probe,
DC Coupled |
±400V(100V/div-20V/div);
±50V(10V/div-5V/div);
±40V(2V/div-500mV/div);
±2V(200mV/div-50mV/div);
±400mV(20mV/div-2mV/div); |
| Math |
+, -, *, /, FFT |
| FFT |
Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point |
| Bandwidth Limit |
20MHz |
| Low Frequency Response (-3db) |
≤10Hz at BNC |
| DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 100V/div to 10mV/div.
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
DC Measurement Accuracy,
Average Acquisition Mode |
Measurement Type: Average of ≥16 waveforms with vertical position at zero
Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected.
Measurement Type: Average of ≥16 waveforms with vertical position not at zero
Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]. |
Volts Measurement Repeatability,
Average Acquisition Mode |
Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions |
| Trigger System |
| Trigger Types |
Edge, Video, Pulse, Slope, Over time, Alternative |
| Trigger Source |
CH1, CH2, AC Line |
| Trigger Modes |
Auto, Normal, Single |
| Coupling Type |
DC, AC, HF Reject, LF Reject, Noise Reject |
Trigger Sensitivity
(Edge Trigger Type) |
DC(CH1,CH2):
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;
AC: Attenuates signals below 10Hz ;
HF Reject: Attenuates signals above 80kHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz. |
| Trigger Level Range |
CH1/CH2: ±8 divisions from center of screen; |
| Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns |
CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; |
| Set Level to 50%(typical) |
Operates with input signals ≥50Hz |
| Video Trigger |
|
| Video Trigger Type |
CH1, CH2: Peak-to-peak amplitude of 2 divisions; |
| Signal Formats and Field Rates |
Supports NTSC, PAL and SECAM broadcast systems for any field or any line |
| Holdoff Range |
100ns ~ 10s |
| Pulse Width Trigger |
|
| Pulse Width Trigger Mode |
Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse |
| Pulse Width Trigger Point |
Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width |
| Pulse Width Range |
20ns ~ 10s |
| Slope Trigger |
|
| Slope Trigger Mode |
Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope |
| Slope Trigger Point |
Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than the set slope.
Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. |
| Time Range |
20ns ~ 10s |
| Overtime Trigger |
|
| Over Time Modee |
Rising edge or Falling edge |
| Time Range |
20ns ~ 10s |
| Alternative Trigger |
|
| Trigger on CH1 |
Internal Trigger: Edge, Pulse Width, Video, Slope |
| Trigger on CH2 |
Internal Trigger: Edge, Pulse Width, Video, Slope |
| Trigger Frequency Counter |
|
| Readout Resolution |
6 digits |
| Accuracy (typical) |
±30ppm (including all frequency reference errors and ±1 count errors) |
| Frequency Range |
AC coupled, from 4Hz minimum to rated bandwidth |
| Signal Source |
Pulse Width or Edge Trigger modes: all available trigger sources
The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work. |
| Measure |
| Cursor Measurement |
Manual: Voltage difference between cursors: △V
Time difference between cursors: △T
Reciprocal of △T in Hertz (1/ΔT);
Tracing: The valtage and time at a waveform point; |
| Auto Measuerment |
Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, |
| Waveform Generator Mode |
| Frenquency Range |
1Hz(DC)~25MHz |
| DAC Clock |
2K~200MHz adjustable |
| Memory Depth |
4KSa |
| Vertical Resolution |
12 Bits |
| Stability |
<30ppm |
| Amplitude |
±3.5V Max. |
| Output Impedance |
50 Ω |
| Output Current |
50mA Ipeak=50mA |
| System Bandwidth |
25M |
| Harmonic Wave Distortion |
-50dBc(1KHz), -40dBc(10KHz) |
| General Specifications |
| Display Resolution |
640 horizontal by 480 vertical pixels |
| Display Contrast |
Adjustable (16 gears) with the progress bar |
| Probe Compensator Output |
|
| Output Voltage( typical) |
About 2Vpp into ≥1MΩ load |
| Frequency(typical) |
1kHz |
| Power Supply |
|
| Supply Voltage |
AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A |
| Power Consumption |
<30W |
| Environmental |
|
| Temperature |
Operating: 32℉ to 122℉ (0℃ to 50℃);
Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃) |
| Cooling Method |
Convection |
| Humidity |
+104℉ or below (+40℃ or below): ≤90% relative humidity;
106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity |
| Altitude |
Operating: Below 3,000m (10,000 feet);
Nonoperaring: Below 15,000m(50,000 feet) |
| Mechanical |
|
| Size |
260mmmm; 220mm; 75mm |
| Weight |
2.5KG(without Packing) |
