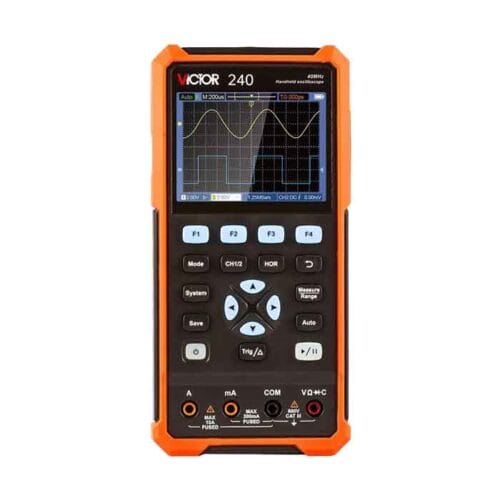

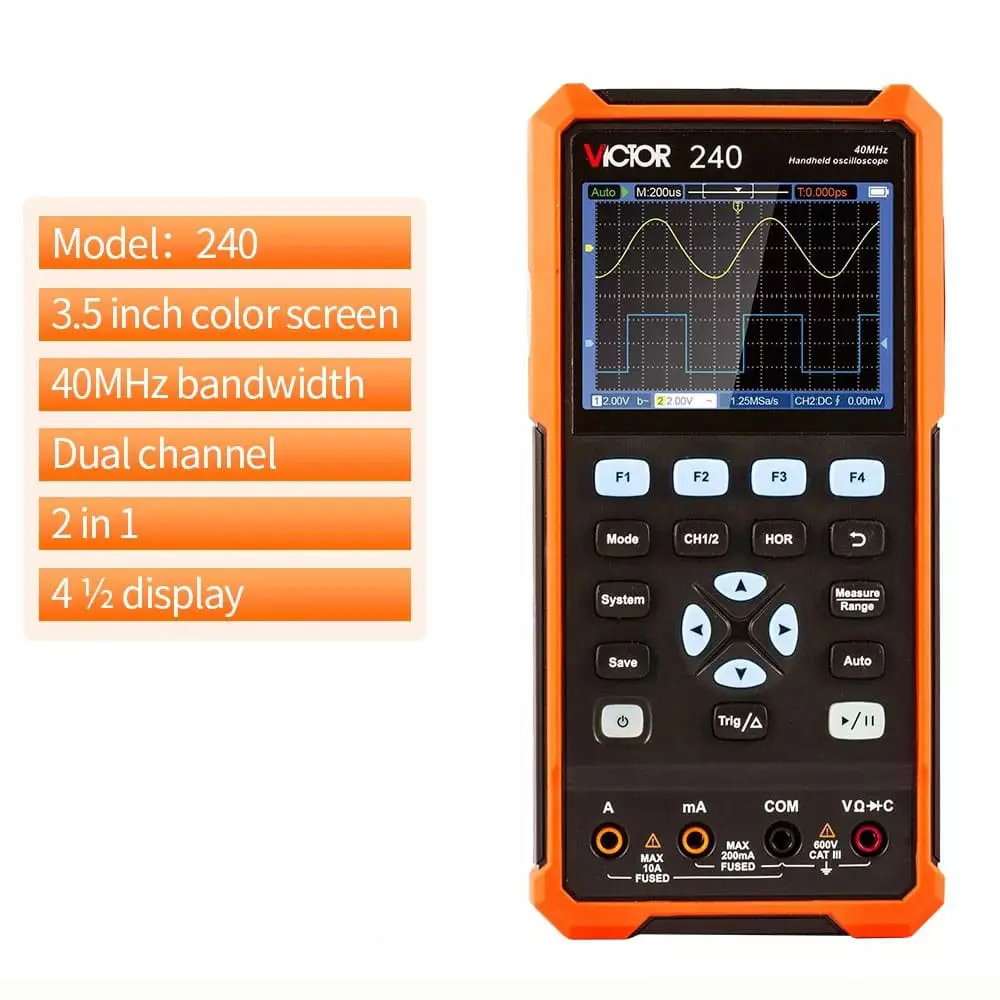

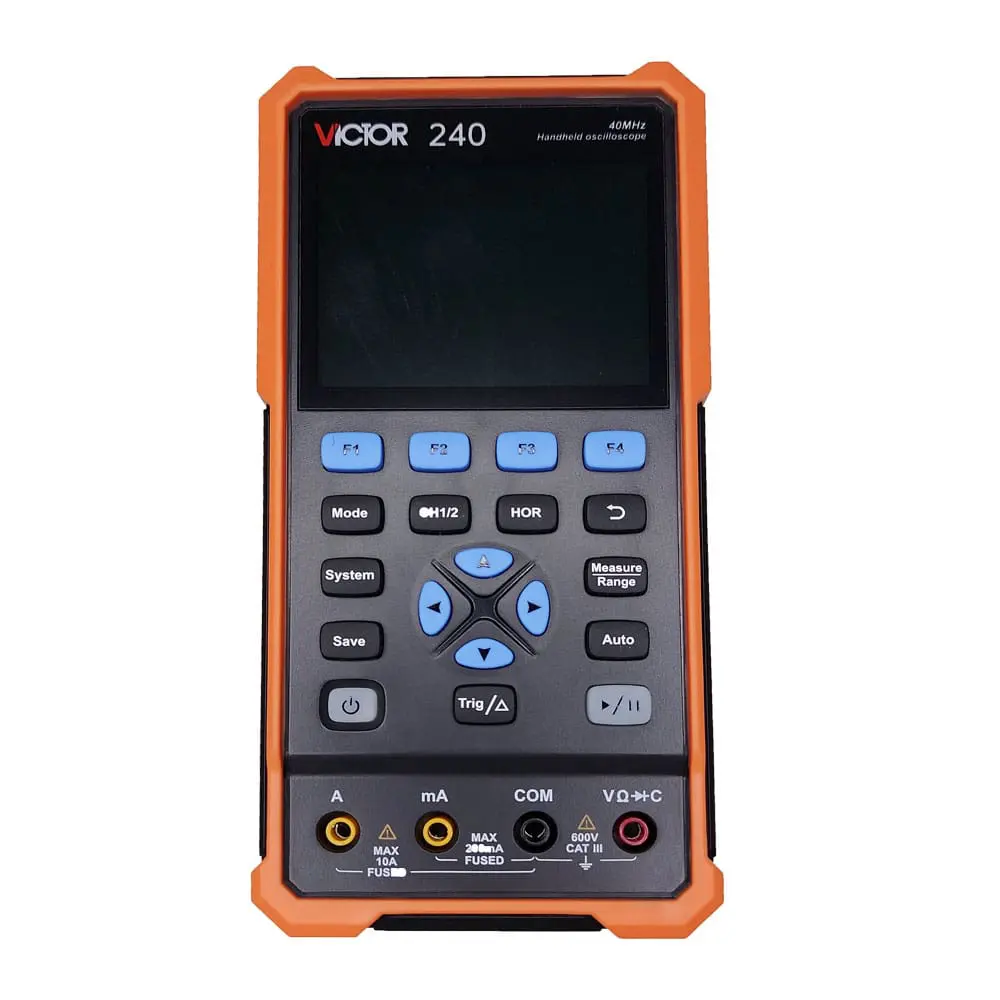

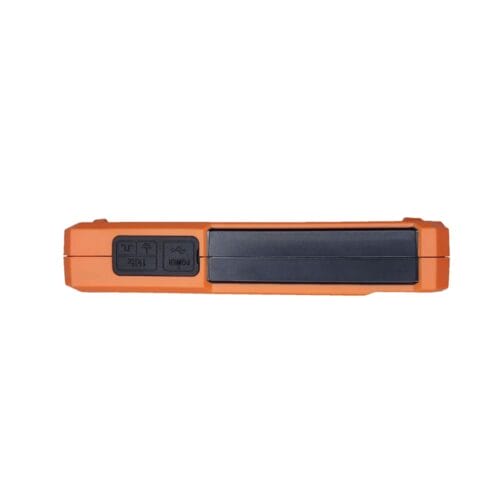

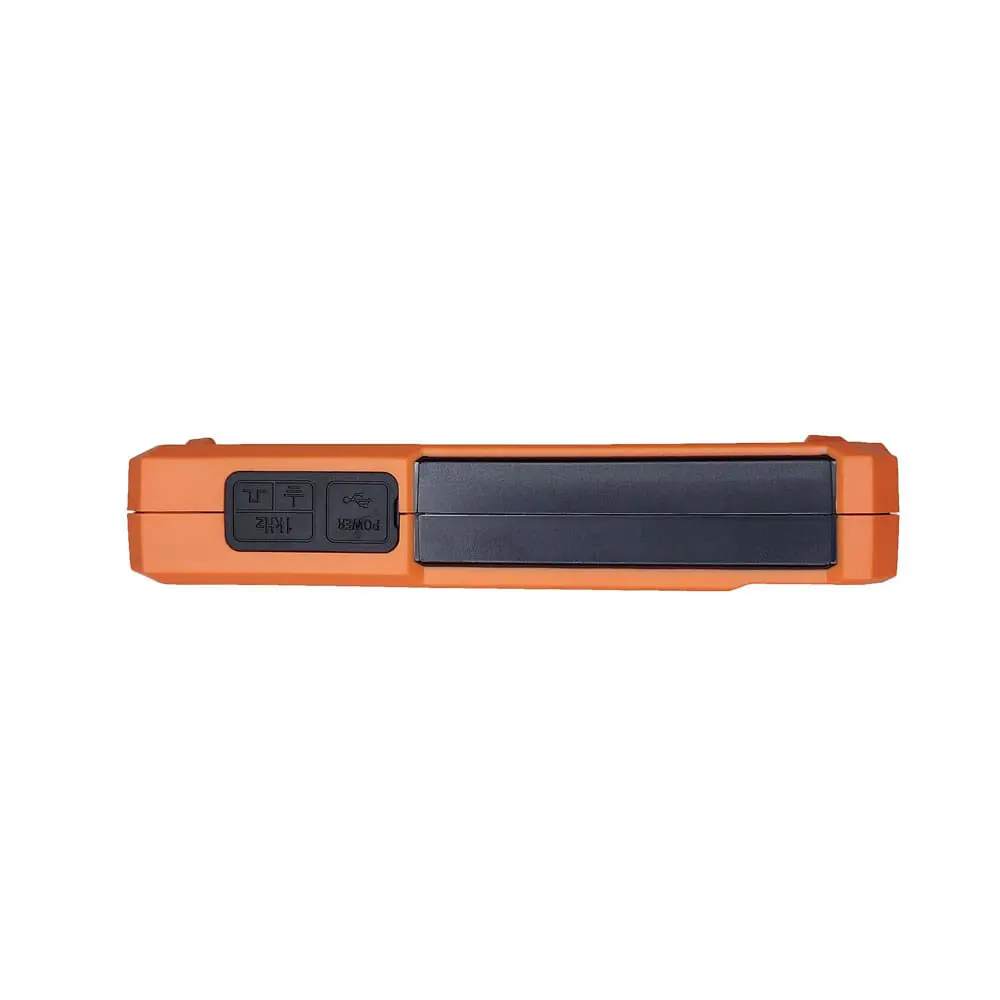

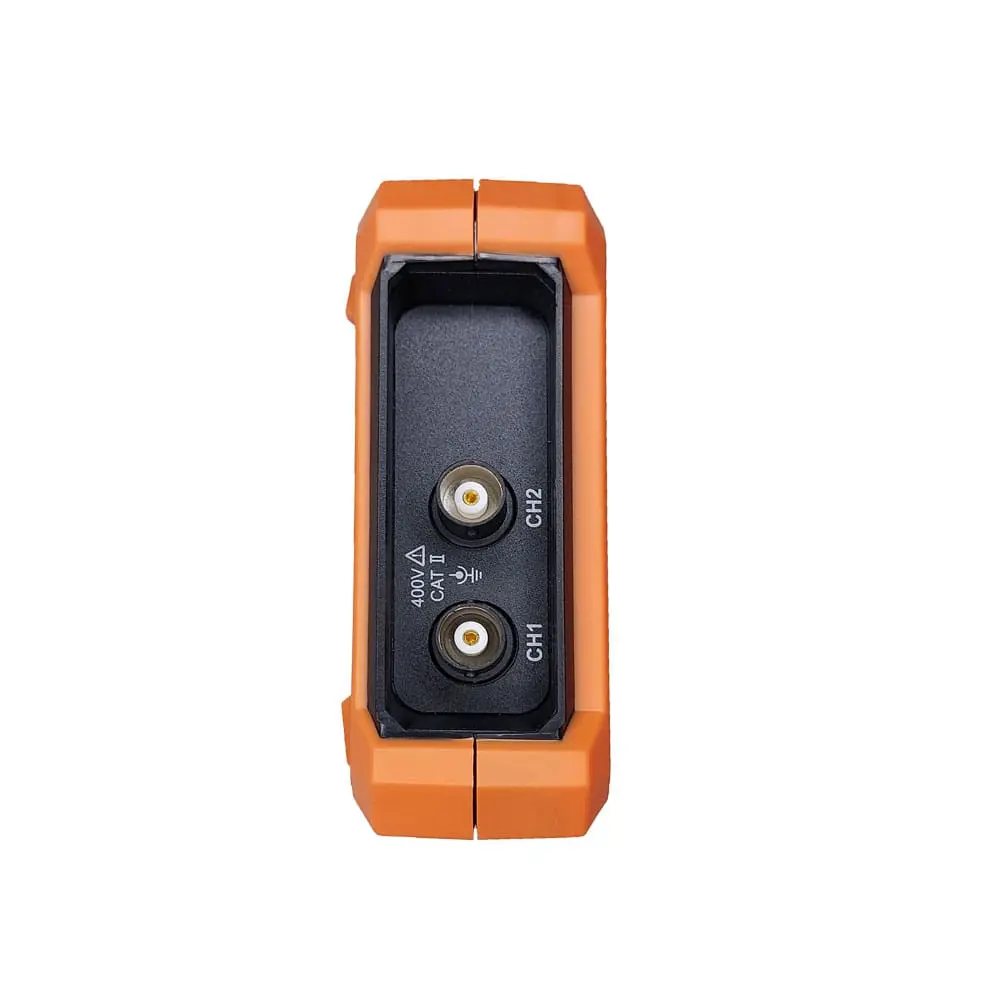

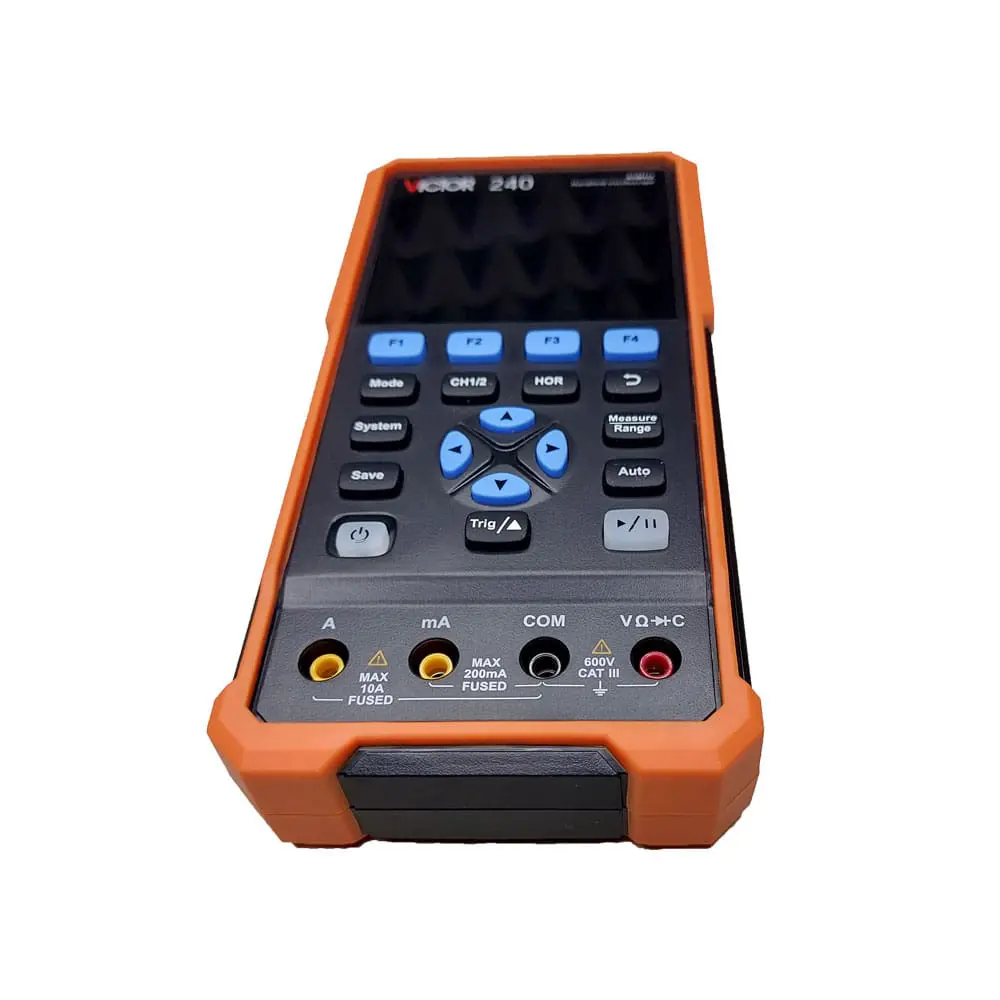

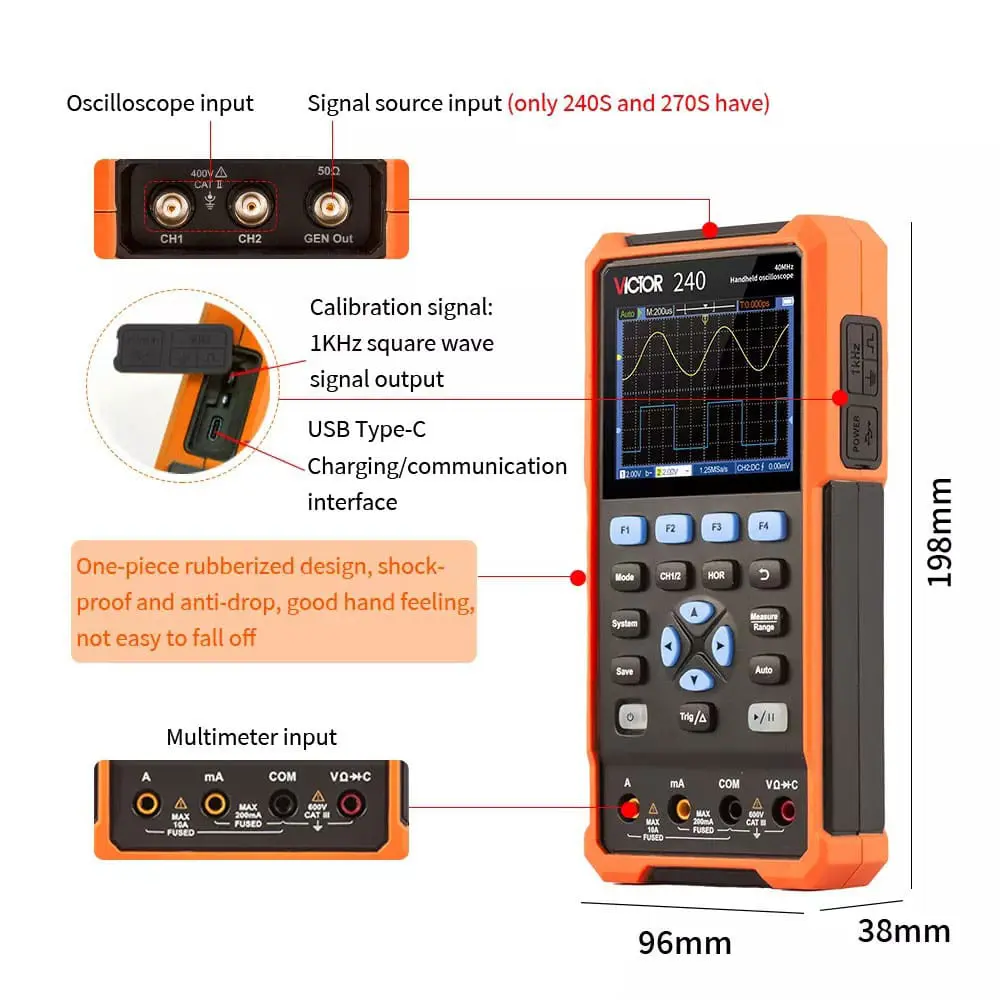

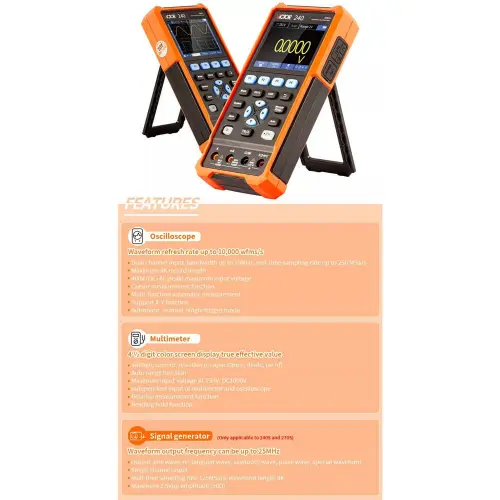

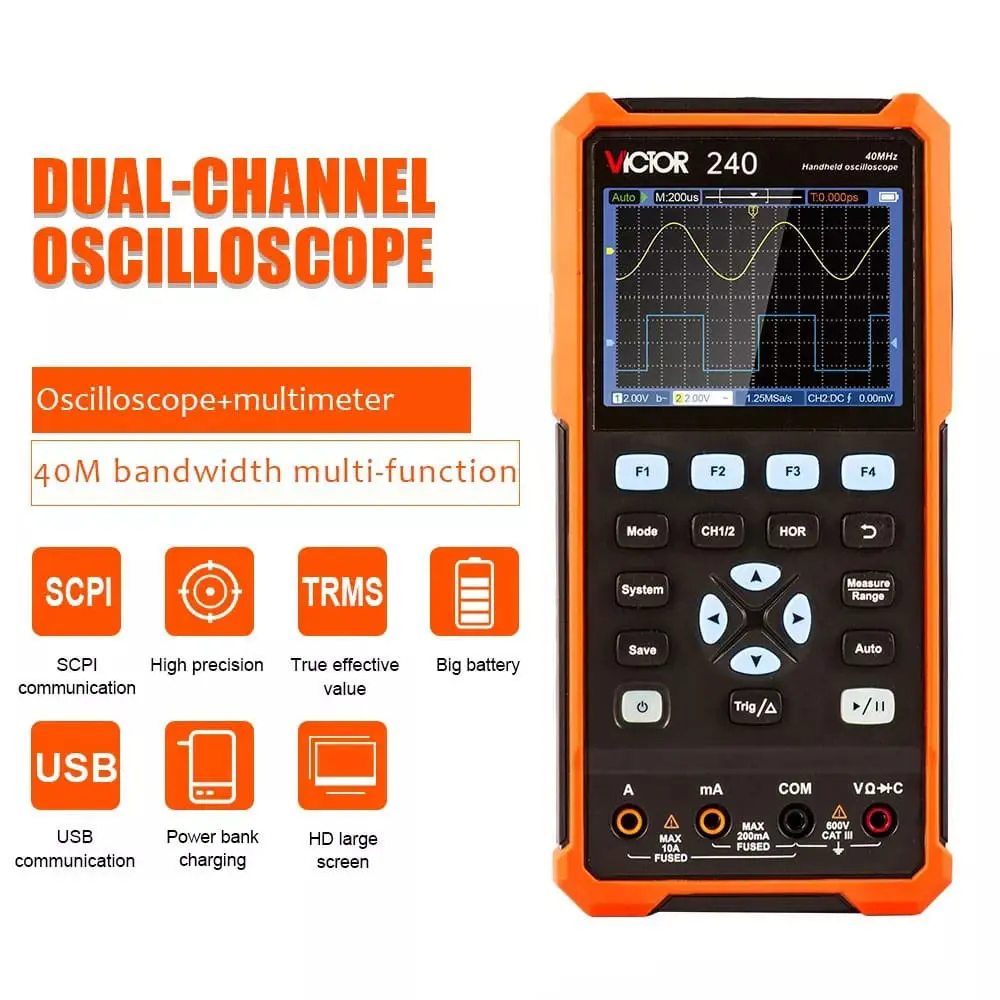

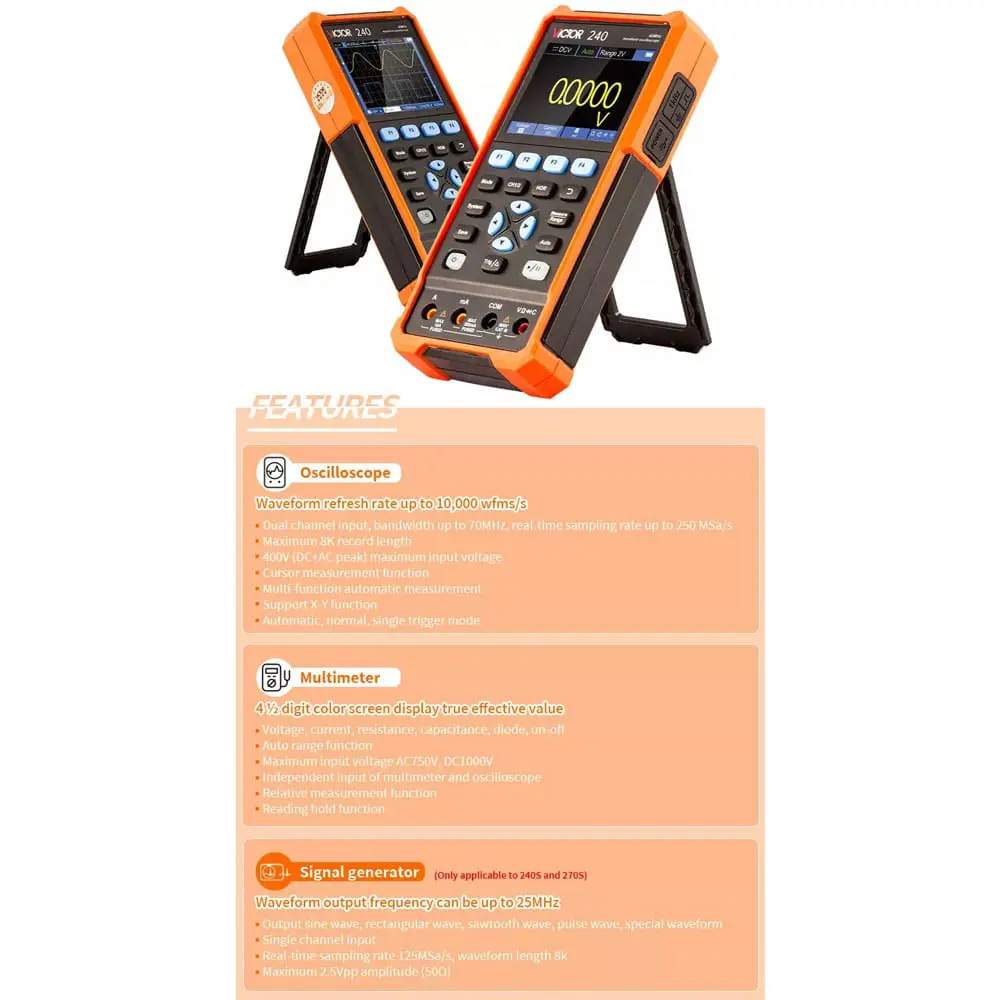

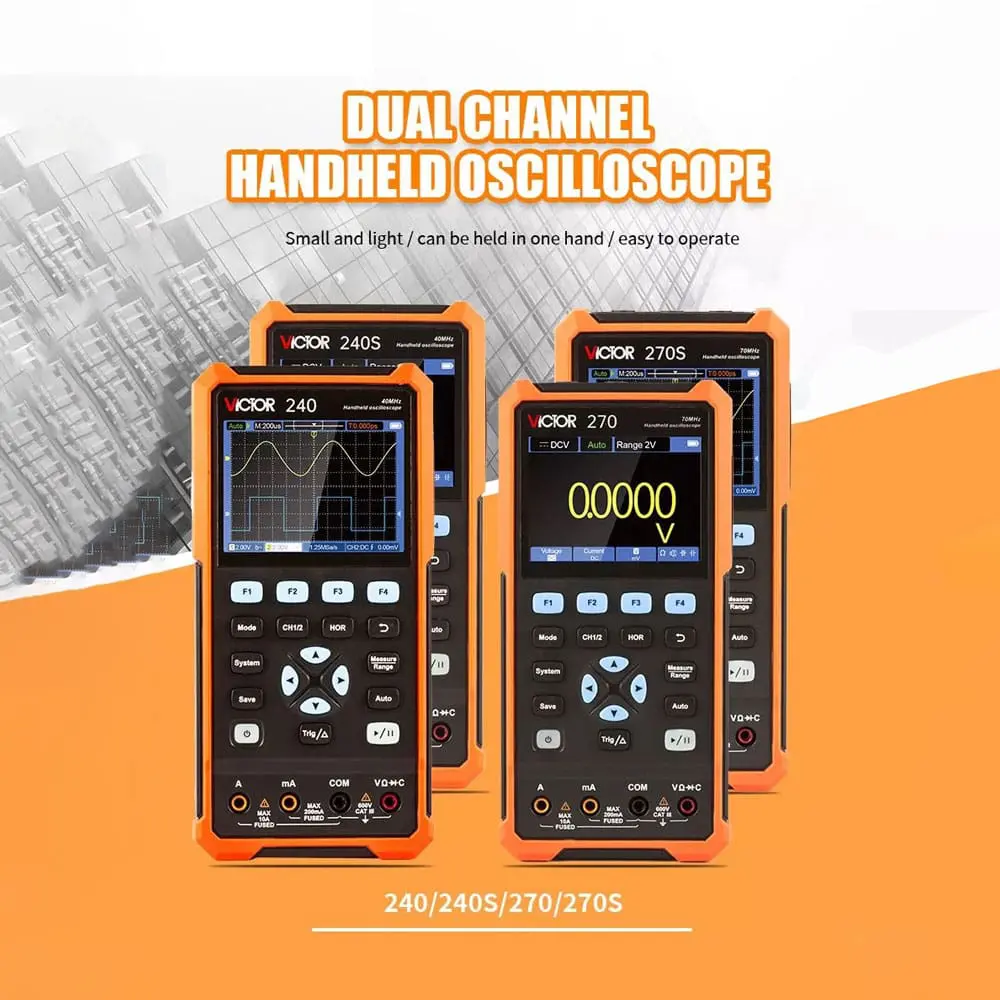

اسیلوسکوپ دستی ویکتور مدل VICTOR 240
- دستگاه دو کاره: اسیلوسکوپ، مولتی متر
- اسیلوسکوپ 2 کانال 40 مگاهرتز به همراه پراب و سرعت نمونه برداری 250MS/s
- دارای مولتی متر دیجیتال 4.5 دیجیت
- حافظه داخلی 8Kpoint
- نمایش نمایش 3.5 اینچی TFT رنگی با کیفیت بالا

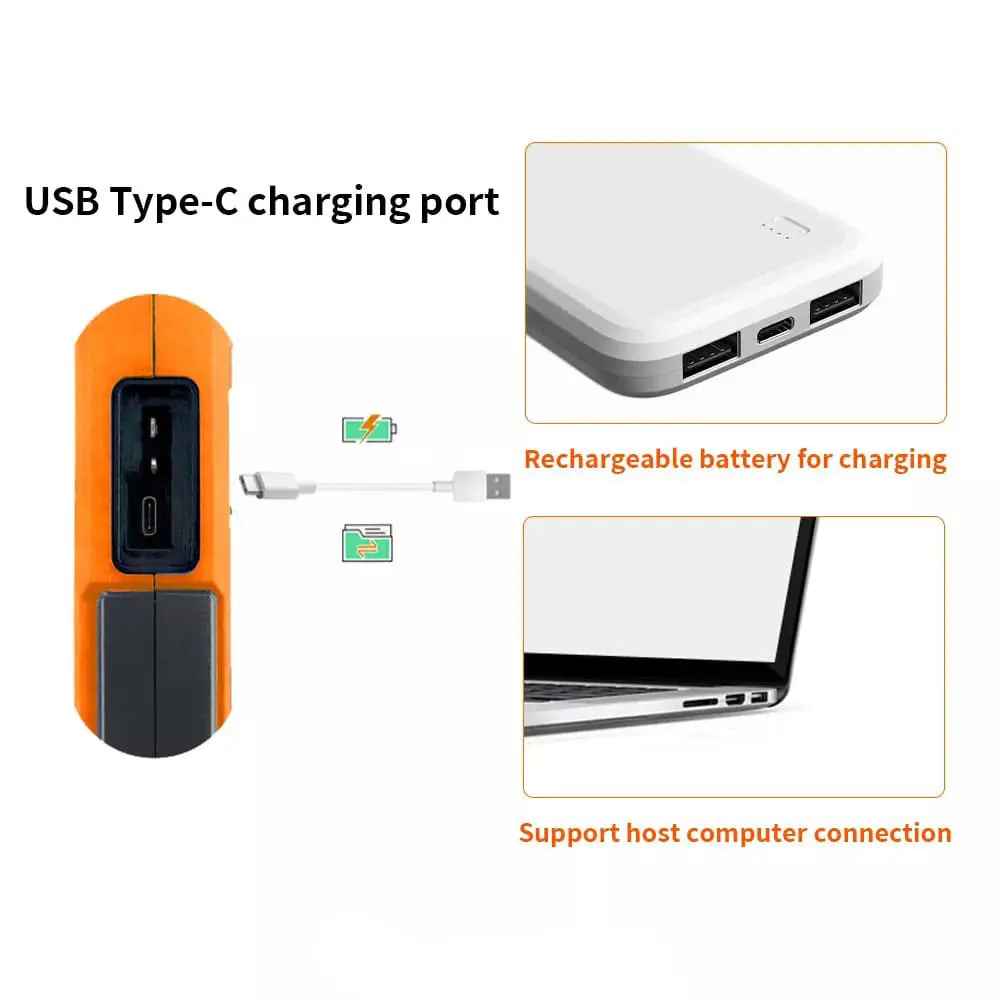

- پورت USB

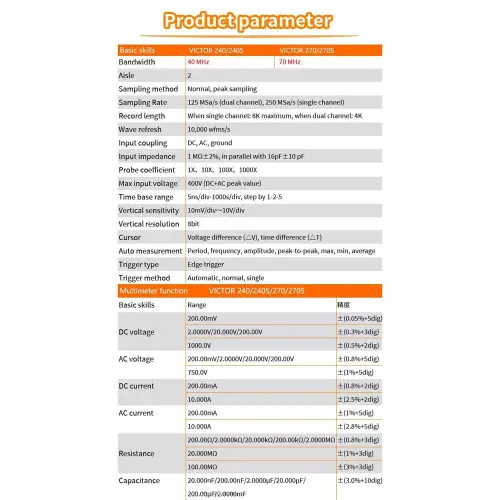

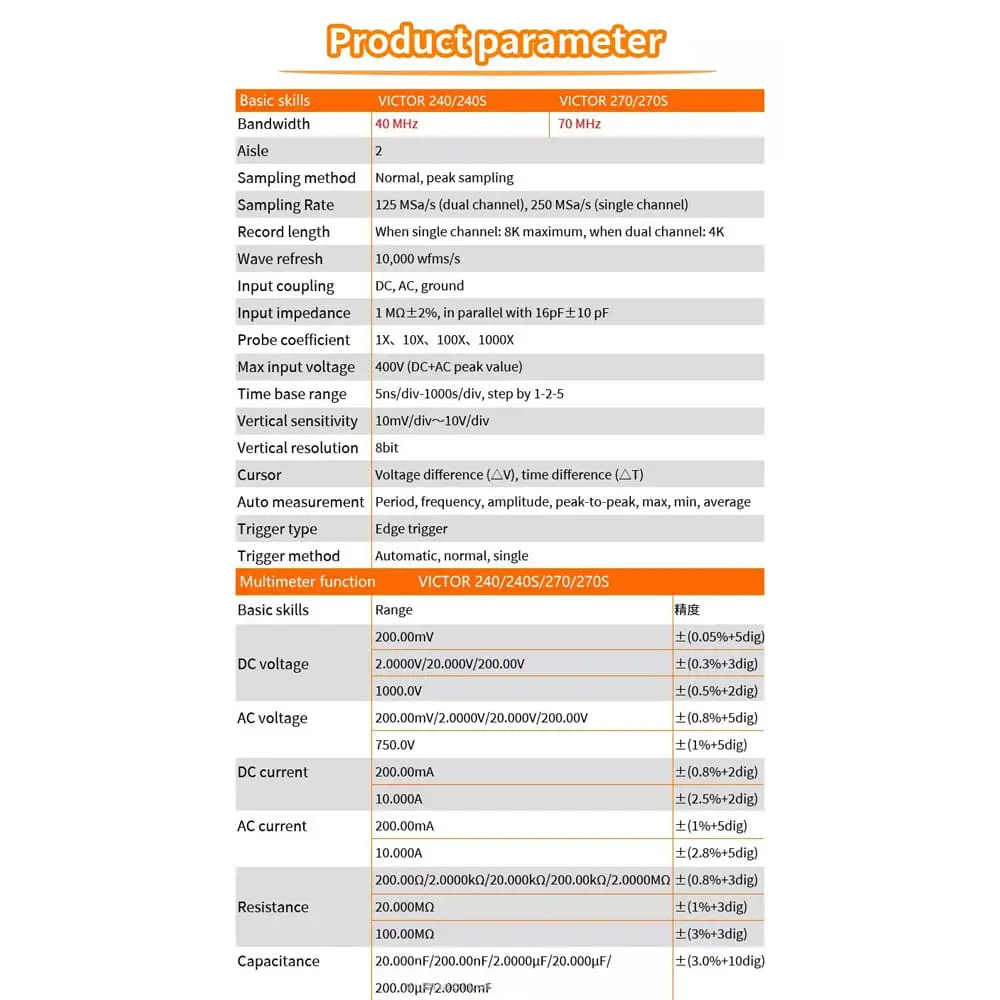

جدول مشخصات و دقت اندازه گیری اسیلوسکوپ دستی ویکتور مدل VICTOR 240:
|
Oscilloscope Function
|
||||
|
Characteristics
|
Description
|
|||
|
Bandwidth
|
40 MHz
|
|||
|
Channel
|
2
|
|||
|
Sampling |
Sampling method
|
Sampling, peak detection
|
||
|
Real-time sampling rate
|
||||
|
Waveform refresh rate
|
10,000 wfms/s
|
|||
|
Input |
Input coupling
|
DC, AC, ground
|
||
|
Input impedance (DC coupling)
|
1 MΩ±2%, in parallel with 16 pF±10 pF
|
|||
|
Probe attenuation
|
1X 、10X、100X、1000X 、10000X
|
|||
|
Maximu input voltage
|
400 V (DC + AC ,PK – PK)
|
|||
|
Bandwidth limit
|
20 MHz ,Full bandwidth
|
|||
|
Horizontal |
Sampling rate range
|
0.25 Sa/s～250 MSa/s
|
||
|
Waveform interpolation
|
(Sinx)/x
|
|||
|
Sweep speed range (S/div)
|
5ns/div – 1000s/div,Stepping in the 1-2-5 way
|
|||
|
Time base accuracy
|
±100 ppm
|
|||
|
Record length
|
8K or 4K optional
|
|||
|
Vertical |
Sensitivity (Volt/div) range
|
10 mV/div～10 V/div
|
||
|
Displacement range
|
±6 div
|
|||
|
Analog bandwidth
|
40 MHz
|
|||
|
Single bandwidth
|
Full bandwidth
|
|||
|
Low frequency response (AC coupling, -3dB)
|
≥10 Hz
|
|||
|
Rise time (typical on BNC)
|
≤ 8 ns
|
|||
|
≤ 5 ns
|
||||
|
DC gain accuracy
|
3%
|
|||
|
Measurement |
Cursor
|
ΔV, ΔT
|
||
|
Automatic
|
Period, Frequency, Mean, PK-PK,
Max, Min, Amplitude |
|||
|
Trigging |
Source
|
CH1, CH2
|
||
|
Type
|
Edge
|
|||
|
Coupling
|
DC, AC
|
|||
|
Trigger type
|
Auto, normal, single
|
|||
|
Trigger electrical level range
|
±4 divs from the center of the screen
|
|||
|
Trigger electrical level accuracy
|
±0.3 div
|
|||
|
Trigger displacement
|
According to Record length and time base
|
|||
|
Edge trigging
|
Slope
|
Rising edge, falling edge
|
||
|
Multimeter function
|
|
|
Characteristics
|
Description
|
|
Digital display
|
20,000 readings
|
|
Measurement type
|
Voltage, current, resistance, capacitance, on/off, diode
|
|
Maximum lnput voltage
|
AC : 750V DC : 1000V
|
|
Maximum lnput current
|
AC : 10A DC : 10A
|
|
Basic function
|
Range
|
Minimum resolution
|
Accuracy
|
|
DC voltage |
200.00mV
|
0.01mV
|
±(0.3%+10dig)
|
|
2.0000V
|
0.1mV
|
±(0.3%+5dig)
|
|
|
20.000V
|
1mV
|
||
|
200.00V
|
0.01V
|
||
|
1000.0V
|
0.1V
|
||
|
AC voltage |
200.00mV
|
0.01mV
|
±(0.8%+10dig) |
|
2.0000V
|
0.1mV
|
||
|
20.000V
|
1mV
|
||
|
200.00V
|
0.01V
|
||
|
750.0V
|
0.1V
|
±(1%+10dig)
|
|
|
frequency range：40Hz-1000Hz
|
|||
|
DC current
|
200.00mA
|
0.01mA
|
±(0.8%+10dig)
|
|
10.000A
|
1mA
|
±(2.5%+10dig)
|
|
|
Overload protection:
mA function: self-healing fuse 400 mA/250 V; Ampere function: 10A/600 V, D5.2*20, fast-acting fuse |
|||
|
AC current |
200.00mA
|
0.01mA
|
±(1%+10dig)
|
|
10.000A
|
1mA
|
±(2.8%+10dig)
|
|
|
frequency range：40Hz-1000Hz
Overload protection: mA function: self-healing fuse 400 mA/250 V; Ampere function: 10A/600 V, D5.2*20, fast-acting fuse |
|||
|
Resistance |
200.00Ω
|
0.01Ω
|
±(0.8%+10dig)
|
|
2.0000kΩ
|
0.1Ω
|
±(0.8%+5dig)
|
|
|
20.000kΩ
|
1Ω
|
±(0.8%+3dig)
|
|
|
200.00kΩ
|
10Ω
|
||
|
2.0000MΩ
|
0.1kΩ
|
||
|
20.000MΩ
|
1kΩ
|
±(1%+3dig)
|
|
|
100.00MΩ
|
0.01MΩ
|
±(5%+10dig)
|
|
|
Capacitance |
20.000nF
|
1pF
|
±(3.0%+10dig) |
|
200.00nF
|
10pF
|
||
|
2.0000μF
|
0.1nF
|
||
|
20.000μF
|
1nF
|
||
|
200.00μF
|
10nF
|
||
|
2.0000mF
|
0.1uF
|
||
|
Others |
On/Off test
|
√ (<50Ω)
|
|
|
Diode test
|
√(<0-2V)
|
||
|
Auto range
|
√
|
||
|
TRMS
|
√
|
||
