| General Oscilloscope |
Model |

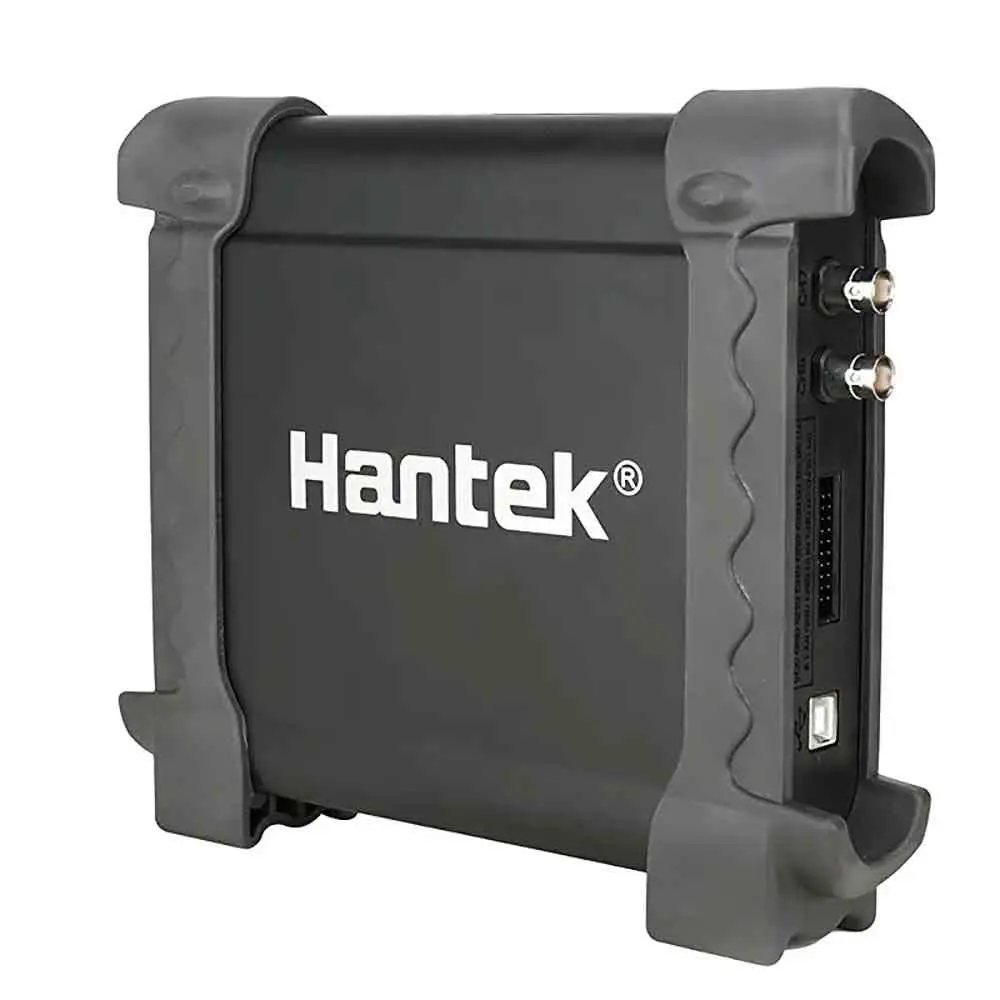

Hantek1008C |
| Analog Channel |
8 |
| Input Impedance |
Resistance: 1MΩ |
| Input Sensitivity |
10mV/div to 5V/div |
| Input Coupling |
DC |
| Resolution |
12 bits |
| Memory Depth |
4K |
| Max. Input |
400V (DC+AC Peak) |
| Real-Time Sampling Rate |
2.4MSa/s |
| Time BaseRange |
1ns/div to 20000s/div(1-2-5sequences) |
| Time Base Precision |
±50ppm |
| Trigger Source |
CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 |
| Trigger Mode |
Edge |
| X-Axis Input |
CH1 |
| Y-Axis Input |
CH2 |
| Voltage Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement |
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement |
Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process |
+,- , x,÷, FFT, Invert |
| Voltage Range |
10mV to 5V/div @ x 1 probe |
| 100mV to 50V/div @ x 10 probe |
| 10V to 5000V/div @ x 1000 probe |
| 100V to 50000V/div @ x 10000 probe |
| 200mV to 100V/div @ 20:1 |
| Current Range |
100mA to50.0A/div @ CC65(20A) |
| 1000mA to500.0A/div @ CC65(65A) |
| 1A to100.0A/div @ CC650(60A) |
| 1A to200.0A/div @CC1100(100A) |
| 10A to2000.0A/div @CC1100(1100A) |
| FFT |
Rectangular, Hanning, Hamming, Blackman Window |
| Math |
Addition, subtraction, multiplication, division |
| Interface |
USB 2.0(Full Speed) |
| Power |
No need extra power supply |
| Size |
190 x 167 x 35 (mm) |
| Weight |
0.63kg |

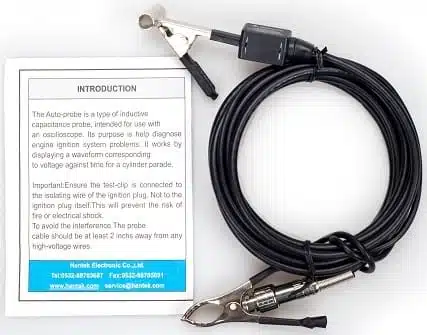

| High pressure ignition probe |
1 |
| Programmablesignal generator |
Channel |
8CH |
| Output Level |
LVTTL |
| Frequency Range |
0-250kHz |
