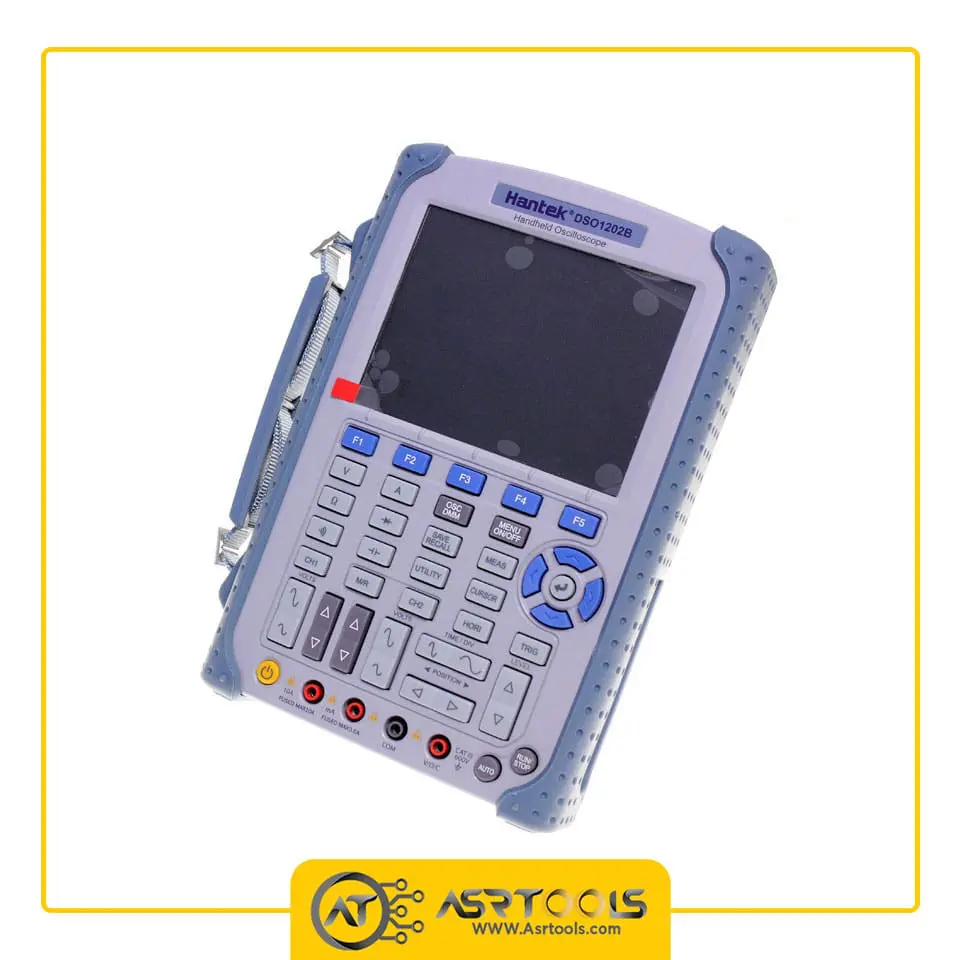

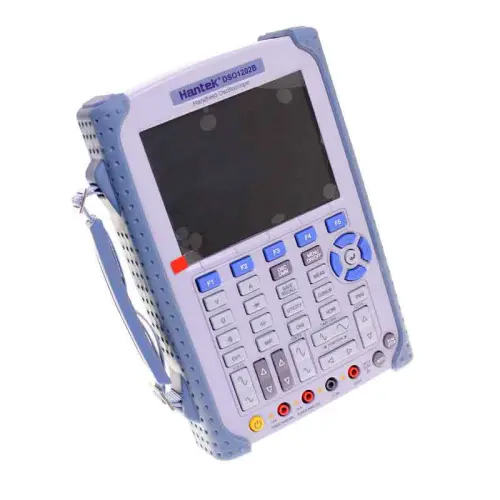

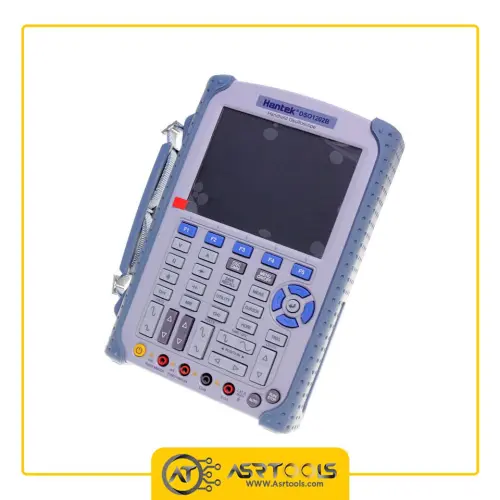

اسیلوسکوپ دستی هانتک مدل HANTEK DSO-1202B دارای مشخصات فنی زیر است:
| DSO1202B | |||
| Bandwidth | 200MHz | ||
| Channel | 2 | ||
| Real-Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| Record Length | 1M | ||
| Rish time | ≤1.7ns | ||
| Timebase Accuracy | ±50ppm | ||
| Time Base Range | 2ns/div-40s/div | ||
| Input Impandance | 1MΩ | ||
| VOLTS/DIV Range | 2mV/div～5V/div | ||
| A/D Converter | 8bit | ||
| Position Range | ±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div) |
||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2 | ||
| Math | +, -, x, ÷, FFT, Invert | ||
| Cursor Measurement | Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT); |
||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF | ||
| DMM Max. Resolution | 6,000 Counts | ||
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC: 600V, DC: 800V | ||
| Max. Input Current | AC:10A , DC: 10A | ||
| Max. Input Impandance | 10MΩ | ||
| Display | 5.6″TFT 16K Color Display, 640*480 dots | ||
| Size | 245mm x 163mm x 52mm | ||
| Weight | 1.3KG(Without Package) | ||
| Standard Probe | PP200x2 | ||
